Introduction

When engineers design or maintain electrical distribution systems, one decision has an outsized impact on safety, reliability, and power quality: choosing the right transformer winding configuration. Among all connection types, the delta to wye transformer stands out as the most widely used configuration in commercial and industrial power systems worldwide.

A delta wye transformer (also called a delta star transformer) combines a delta-connected primary winding with a wye-connected secondary winding. This setup is the backbone of modern electrical distribution — stepping down medium voltage from utilities to usable levels for factories, office buildings, data centers, and residential complexes. According to ANSI/IEEE standards, the delta-wye (Δ-Y) configuration is specified for the majority of distribution-class transformers because of its unique ability to handle mixed loads, isolate harmonics, and provide a grounded neutral for safety.

In this guide, we explain how delta-wye transformer connections work, compare all four main three-phase configurations, and provide a practical framework for selecting the right setup for your project.

Delta (Δ) vs. Wye (Y): The Fundamental Difference

A three-phase transformer contains three individual coils. How these coils are interconnected determines whether the winding forms a delta (Δ) connection or a wye (Y) connection.

Wye (Y) Connection

In a wye winding, one end of each of the three coils is tied together at a common neutral point. The resulting shape resembles the letter "Y," which is why it is also called a star connection.

The defining advantage of the wye connection is that it provides both line-to-line voltage and line-to-neutral voltage from the same transformer. The neutral point can be connected to earth ground, creating a grounded neutral that enables protective devices such as fuses, breakers, and circuit breakers to detect and clear faults. This makes the wye secondary ideal for supplying a mix of three-phase loads (e.g., motors, HVAC equipment) and single-phase loads (e.g., lighting, receptacles).

Delta (Δ) Connection

In a delta winding, the three coils are connected end-to-end in a closed triangular loop, with no shared neutral point. The absence of a neutral makes grounding more complex, which is why delta configurations are often found in ungrounded or impedance-grounded systems.

The delta connection excels at handling high phase currents and is particularly well-suited for heavy motor loads. It also provides a path for third-harmonic currents to circulate internally, preventing them from flowing back into the upstream power source — a key advantage for power quality.

The Delta-Wye (Δ-Y) Transformer: How It Works

A delta to wye transformer has the primary winding configured in delta and the secondary winding configured in wye. This is the standard setup for a step-down transformer in distribution networks.

How power flows through the system:

1. High-voltage power from the utility enters the delta primary. The closed-loop delta winding traps harmonics and isolates the source from downstream disturbances.

2. The transformer core steps down the voltage. A typical example is 13.8 kV (primary) to 480Y/277V (secondary).

3. The wye secondary delivers lower voltage with a neutral point ready for grounding. This allows the same transformer to supply 480V line-to-line for three-phase equipment and 277V line-to-neutral for single-phase lighting.

Three key advantages make the delta-wye configuration the industry standard:

● Neutral availability:The wye secondary provides a grounded neutral for safety and single-phase loading.

●Harmonic filtering: The delta primary traps triplen harmonics (3rd, 9th, 15th), keeping them from degrading power quality on the utility grid.

●Unbalanced load handling: Whenunbalanced loadsdraw uneven current across phases, the delta winding circulates the imbalance internally rather than passing it upstream, preventing overheating and nuisance tripping.

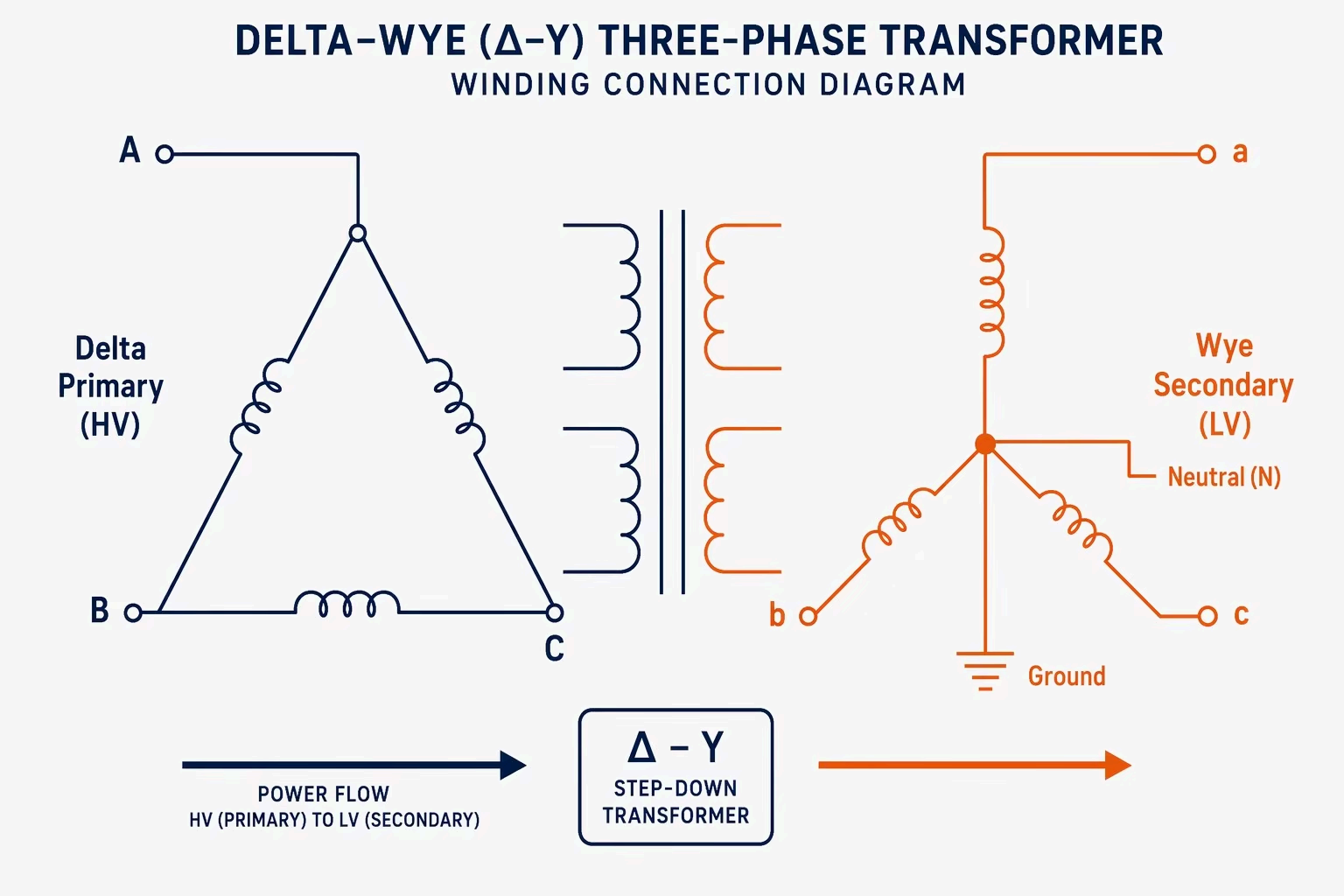

Figure 1: Delta-Wye (Δ-Y) transformer winding connection — Delta primary on the high-voltage side and Wye secondary on the low-voltage side with a grounded neutral point.

Four Common Three-Phase Transformer Configurations

Both primary and secondary windings can be configured as either delta or wye. This creates four standard combinations:

Delta-Wye (Δ-Y)

The workhorse of power distribution. Used wherever a utility feeds a commercial or industrial facility. The delta primary isolates the customer's system from utility-side disturbances, while the wye secondary provides a safe, flexible voltage with neutral.

Wye-Delta (Y-Δ)

Typically used as a generator step-up transformer. The generation source (solar farm, gas turbine, diesel generator) connects to the lower-voltage delta winding, and the grounded wye primary interfaces with the transmission or distribution grid. This configuration is also common in grounding bank applications.

Delta-Delta (Δ-Δ)

Found in older installations and specialized industrial environments with large three-phase motor loads. With no neutral, it cannot supply single-phase loads directly — a separate auxiliary transformer is often required for lighting and receptacles. Its key advantage: if one phase fails, the system can continue operating in an "open delta" mode at reduced capacity.

Wye-Wye (Y-Y)

Less common in practice due to sensitivity to harmonic distortion and circulating currents. When properly designed with a tertiary delta winding, it performs well in utility and renewable energy applications where both sides of the transformer require a grounded neutral for protective relay coordination.

Key Technical Considerations

Grounding and System Safety

The grounded neutral on a wye secondary enables effective fault detection. Most modern electrical codes and utility interconnection requirements mandate solidly grounded systems. When a ground fault occurs, the low-impedance return path allows circuit breakers and fuses to trip quickly, protecting equipment and personnel.

In contrast, ungrounded delta systems require more sophisticated fault detection. A ground fault may go undetected on the first occurrence, creating a risk of overvoltage on the second fault. For this reason, corner-grounded delta and high-leg delta configurations are generally limited to legacy installations.

The 30-Degree Phase Shift

A delta-wye transformer connection always introduces a 30-degree phase shift between primary and secondary line voltages. This is defined by vector group designations such as Dyn11 under ANSI/IEEE standards. The phase shift is not a defect — it is an inherent characteristic that must be accounted for when:

● Paralleling two or more transformers (they must share the same vector group)

● Coordinating protective relay settings across the system

● Integrating power meters and control systems that reference voltage phase angles

Harmonic Management

Modern facilities contain non-linear loads — variable frequency drives, LED lighting, UPS systems, and computer power supplies — that generate third-harmonic currents. These harmonics can overheat neutral conductors and cause transformer overheating. The delta primary winding of a delta to wye transformer provides a low-impedance circulating path that traps these harmonics inside the transformer, preventing them from propagating upstream into the utility grid.

How to Choose the Right Configuration

Selecting the correct transformer winding configuration requires answering five questions:

1. Do you need single-phase loads? If yes, the transformer must have a wye secondary with neutral.

2. Is the load likely to be unbalanced? For buildings with a heavy mix of single-phase equipment, the delta-wye (Δ-Y) configuration is the best choice — it naturally balances current across the primary.

3. Are harmonics a concern? Facilities with significant non-linear loads benefit from a delta primary winding for harmonic filtering.

4. Is this a step-down or step-up application? For step-down transformer applications (utility to facility), delta-wye is standard. For generator step-up transformer applications, wye-delta is typically preferred.

5. What does the utility require? Always verify the utility's interconnection requirements. Some utilities mandate a grounded wye primary; others allow delta connections. Mismatching can cause protection failures and interconnection violations.

For replacement projects: As a rule, match the existing transformer's configuration. The entire protection scheme, grounding design, and connected equipment were selected for that specific winding arrangement. Changing configurations without a thorough engineering review can introduce serious safety hazards.

Industry Applications

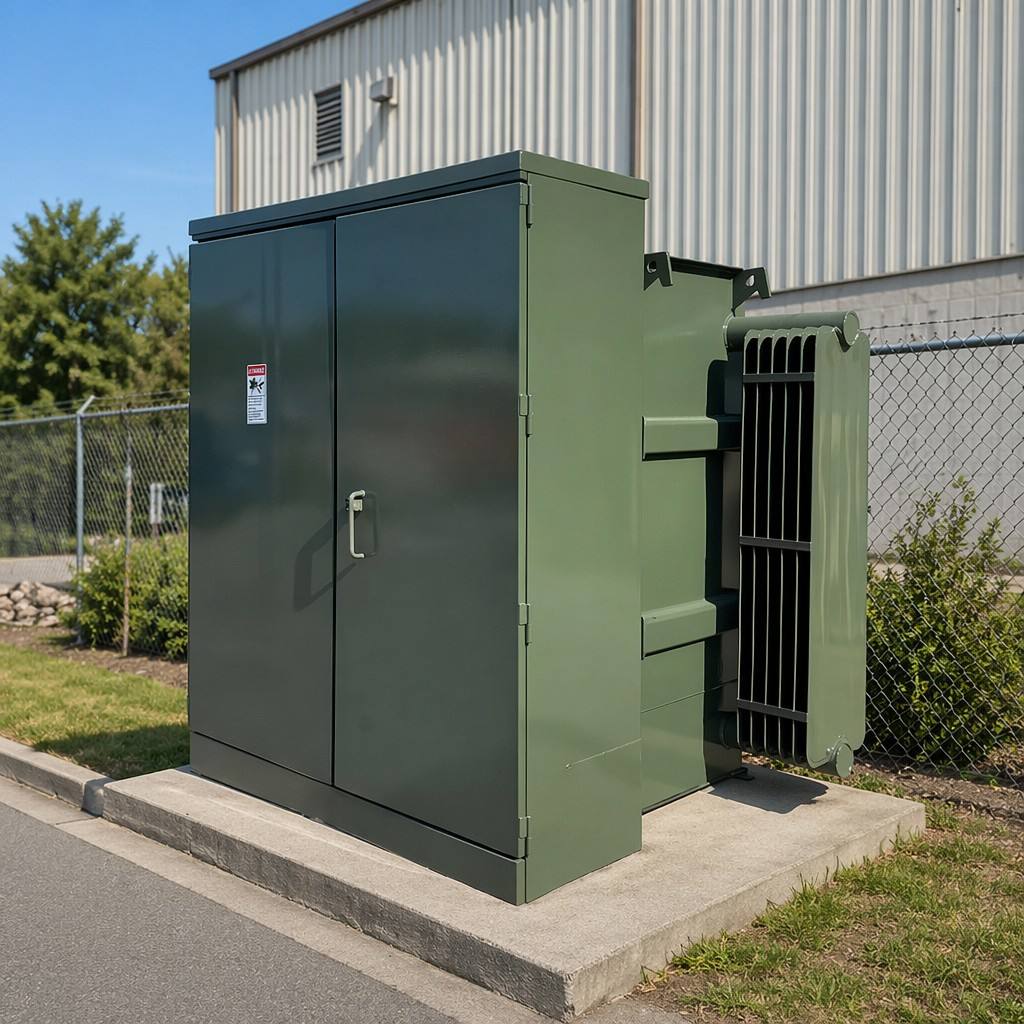

Figure 2: A three-phase pad-mounted delta-wye distribution transformer in a commercial application — commonly found at office parks, retail centers, and industrial facilities for stepping down utility voltage to usable levels.

 FAQ

What is a delta to wye transformer?

A delta to wye transformer is a three-phase transformer with a delta-connected primary winding and a wye-connected secondary winding. This delta-wye (Δ-Y) configuration is the most common setup in electrical distribution systems, used to step down transmission voltage for commercial, industrial, and residential use while providing a grounded neutral for safety and single-phase loading.

What is the difference between a delta and a wye transformer?

A delta (Δ) connection joins three windings end-to-end in a closed triangle with no neutral point — it handles high currents well and traps harmonics. A wye (Y) connection ties one end of each winding to a common neutral point — it provides both line-to-line and line-to-neutral voltage and allows for effective system grounding. A standalone delta transformer cannot supply single-phase loads requiring a neutral.

Why is delta-wye the most common transformer configuration?

The delta-wye (Δ-Y) configuration combines the best features of both winding types: the delta primary isolates the source and filters harmonics, while the wye secondary provides a grounded neutral for safety, single-phase loads, and effective fault protection. This makes it ideal for the widest range of commercial and industrial distribution applications.

Does a delta-wye transformer introduce a phase shift?

Yes. A delta-wye transformer connection introduces a 30-degree phase shift between the primary and secondary line voltages, as defined by vector groups like Dyn11 under ANSI/IEEE standards. This must be accounted for when paralleling transformers or coordinating protection systems.

When should I use a delta-delta transformer instead of delta-wye?

A Delta-Delta (Δ-Δ) configuration is appropriate when all connected loads are balanced three-phase (e.g., a manufacturing plant with only motor loads), when the system must continue operating during a single phase fault (mission-critical facilities), or when the existing system was specifically designed for an ungrounded delta configuration.

What standards apply to delta-wye transformer connections?

ANSI/IEEE standards — specifically IEEE C57.12.00 — define the electrical characteristics, vector group designations, and testing requirements for delta-wye transformer connections. UL and CSA certifications also apply depending on the installation jurisdiction.

Conclusion

The delta to wye transformer is the foundation of modern power distribution for good reason. Its unique combination of a delta primary for harmonic isolation and a wye secondary for flexible, grounded power delivery makes it the go-to choice for commercial distribution, industrial distribution, and residential distribution alike.

Whether you are designing a new facility, upgrading aging infrastructure, or replacing a failed unit, understanding delta-wye transformer connections — and how they compare to the other three configurations — is essential for building a safe, efficient, and code-compliant electrical system. Always consult with a qualified electrical engineer and your local utility before making changes to transformer winding configurations.

For more technical resources on transformer selection, installation, and maintenance, explore our guides or contact our engineering team for project-specific support.
