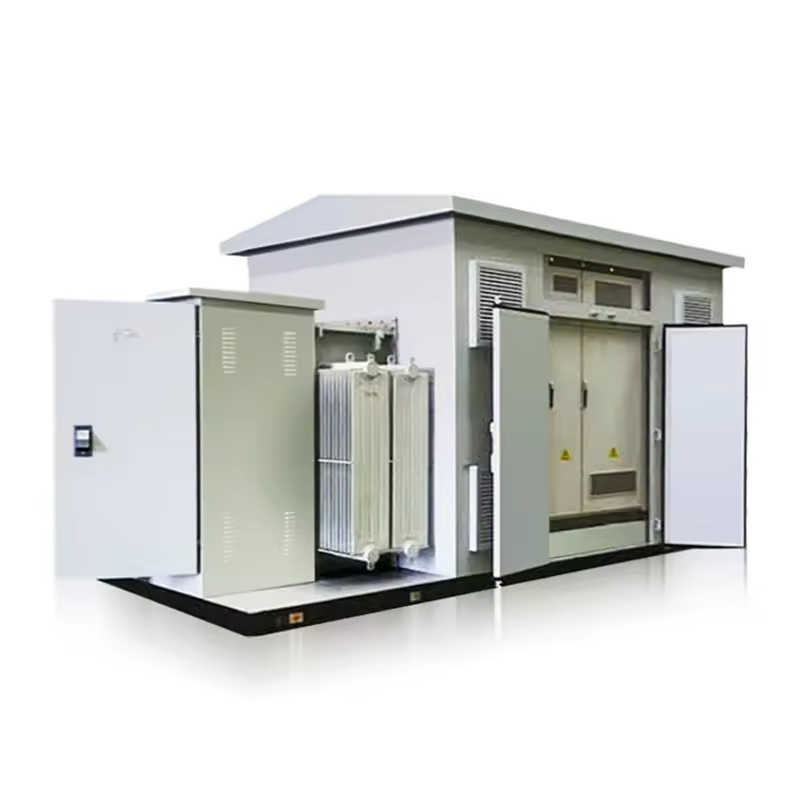

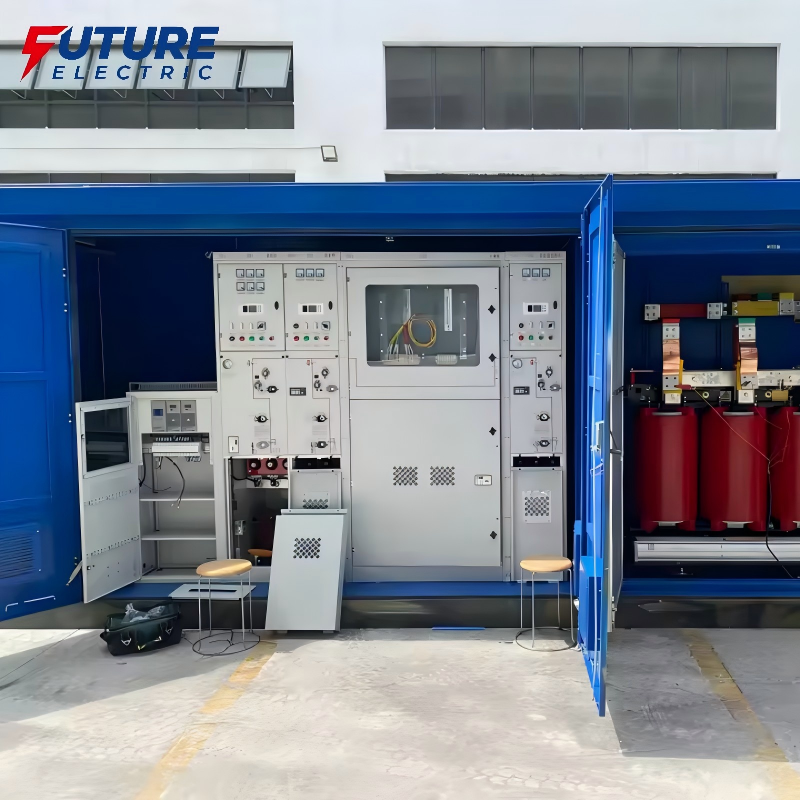

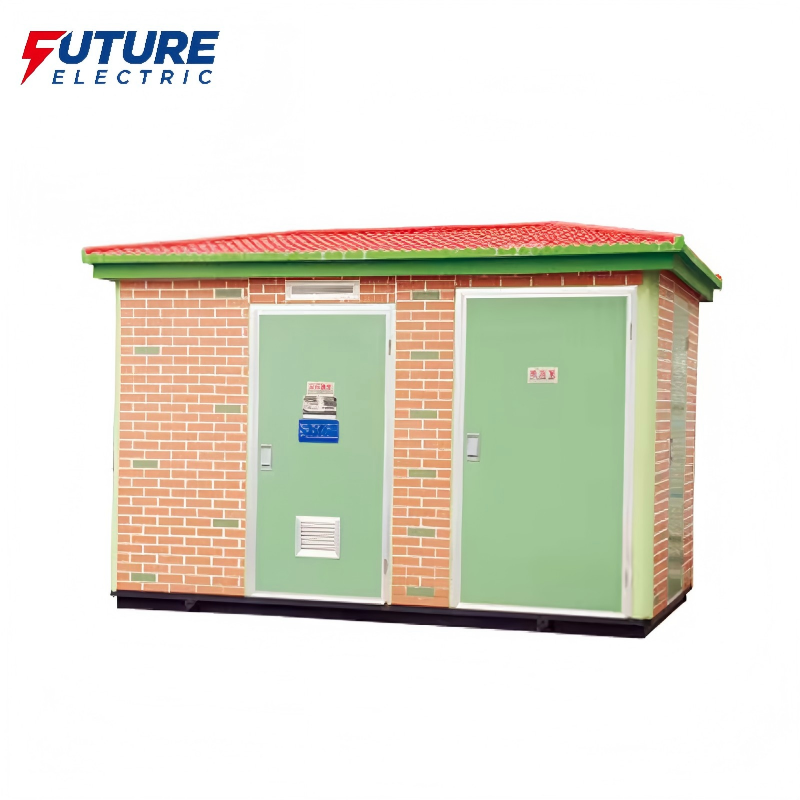

European Compact Substation is modular prefabricated power distribution equipment specially designed for the IEC standard market. It is applicable to rated operating voltage power systems of 36kV and below and AC frequency 50Hz/60Hz. It is widely used as the integrated power distribution equipment in global outdoor power distribution projects and is especially suitable for the IEC standard power grid market.

Technical specifications

FAQS

If you are buying a European box transformer, here are some questions and answers you might want to know.

Q:What type of Compact Substations do you offer?

A: Our Compact Substations are available in oil immersed and dry types, with capacities from 50kVA to 3150kVA, all IEC standards compliant, suitable for European and Southeast Asian markets.

Q: Can you modify the transformer to meet my needs?

A: Sure. We are specialists in customized solutions. You can define several parameters such as power level, input/output voltage, frequency (50Hz/60Hz), insulation level, cooling method and standards followed (IEC, EN, etc). Our technical team will thoroughly assess these options to verify feasibility.

Q: Which international standards is your transformer compliant with?

A: Our transformers are mainly made according to IEC 62271-202 and IEC 60076 standards. And CE, CB and other certifications can also be provided. We can also provide products that comply with other areas standards. Please indicate the certification standards you require on enquiry.

Q: What is the standard voltage and frequency?

A: Our transformers are designed in accordance with international standards, such as 12kV, 24kV, 33kV and the relevant frequency standards (50Hz or 60Hz). At the same time we can also offer tailor-made products according to the needs of specific markets.

Q: How to ask for a quote?

A: Kindly use our Contact Us form or email us directly stating your requirements, order quantity and destination port. The more detail you give us, the more accurate our quote will be.
