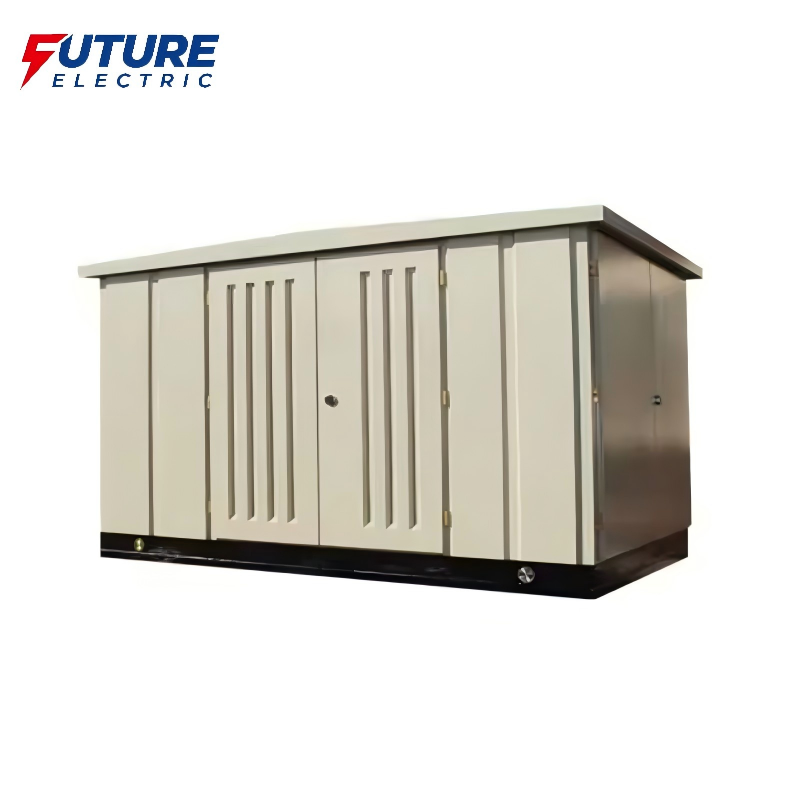

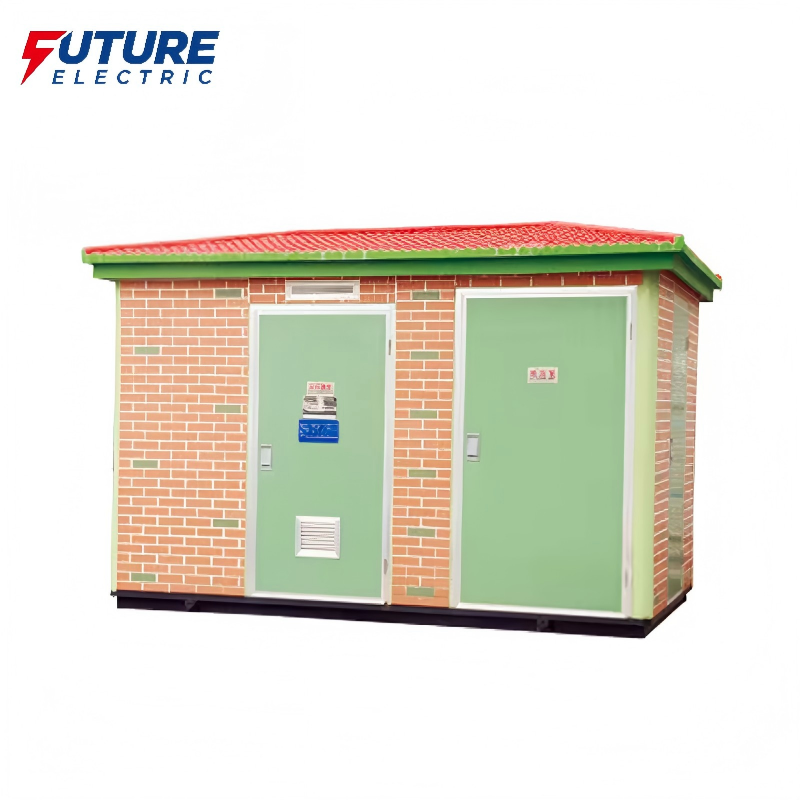

EU Type Prefabricated Compact Substation

Product Description

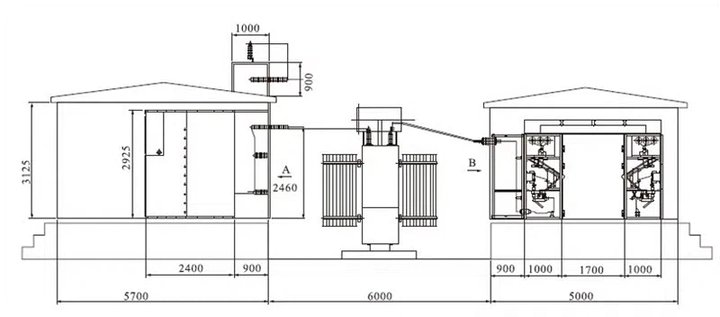

The European-style prefabricated transformer substation is a modular, prefabricated power distribution device specially designed for the IEC standard market. It consists of three independent units, a high-voltage compartment, a transformer compartment and a low-voltage compartment, all in a fully sealed enclosure. Its compact design, small footprint and easy installation make it the number one choice for outdoor power distribution worldwide. It has been widely used in outdoor power distribution projects in Europe, Southeast Asia, Africa and other regions.

Typical environmental conditions

1. Ambient temperature: Max temp. not above +40℃, min temp. not below -40℃; monthly average temperature not above +30℃; annual average temperature not above +20℃

2. Altitude: Maximum 1000 meters

3. Power supply voltage Wave form approximately sinusoidal

4. Three phase supply voltage approximately symmetric

5. The total harmonic content of the load current shall not exceed 5% of rated current

6. Installing Location: Ground Outside
