With the expansion of the power grid, the advancement of industry, the development of artificial intelligence, and the wide application of new energy sources, transformers, as the key equipment of the entire power system, have received increasing attention. Currently, there are many types of transformers and their prices vary greatly. How to select the appropriate transformer for the local power system and how to estimate the price of the transformer?

The key factors that determine the price of an electrical transformer are as follows:

Transformer Selection

First, determine the application scenarios of the transformer.

Here are the commonly used transformer application scenarios and voltage levels. You can select an application scenario or a similar one.

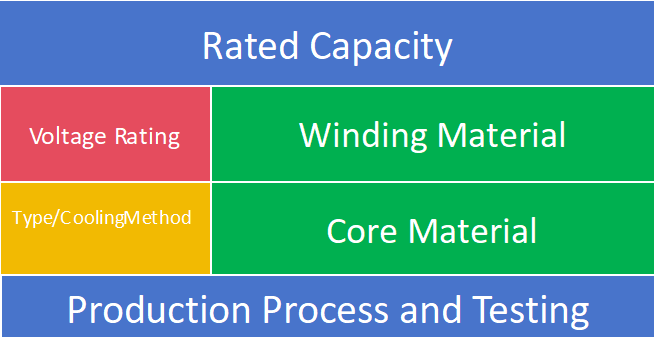

The Factors Determining the Price of Transformer

Rated Capacity:

Larger capacity transformers require much more raw materials and bigger structural size which will lead to a huge increase in cost. The baseline price is most correlated to the power rating (kVA/MVA).

Voltage Rating:

Higher voltage transformers require better insulation systems, higher safety clearances, and more stringent manufacturing standards, all of which increase their cost considerably compared to low voltage types.

Winding Material:

Copper windings cost a lot more than aluminum windings, but they conduct better and lose less over the long term.

At present, the fluctuation of transformer prices is mainly caused by the great fluctuation of copper prices.

Core Material:

Low loss high grade electrical silicon steel (for cores) is much more expensive than standard grades.

Other materials:

Transformer oil, insulation materials and structural steel for tanks are also factors. Transformer pricing is directly affected by world market price fluctuations.

Energy Efficiency Rating:

More efficient transformers are more expensive to purchase. For example, the Level 1 (top-tier) efficiency models are usually 20%~30% more expensive than the Level 2 models. They require premium materials to minimize the no-load and load losses, but they can save considerable energy costs during long-term operation.

Transformer Type & Cooling Method:

Due to better insulation and fire safe construction, dry type transformers are generally more expensive than oil type transformers of the same capacity.

Advanced cooling systems (eg. ONAF, OFWF) for large units also add additional design and installation costs over basic natural cooling (ONAN).

Custom features:

Tap changers, online monitoring systems, special enclosures or protection accessories will increase the price.

Compliance & Cert:

Meeting international standards (IEC, ANSI, etc.) or special industry certifications involves additional testing and validation and adds to the total cost.
