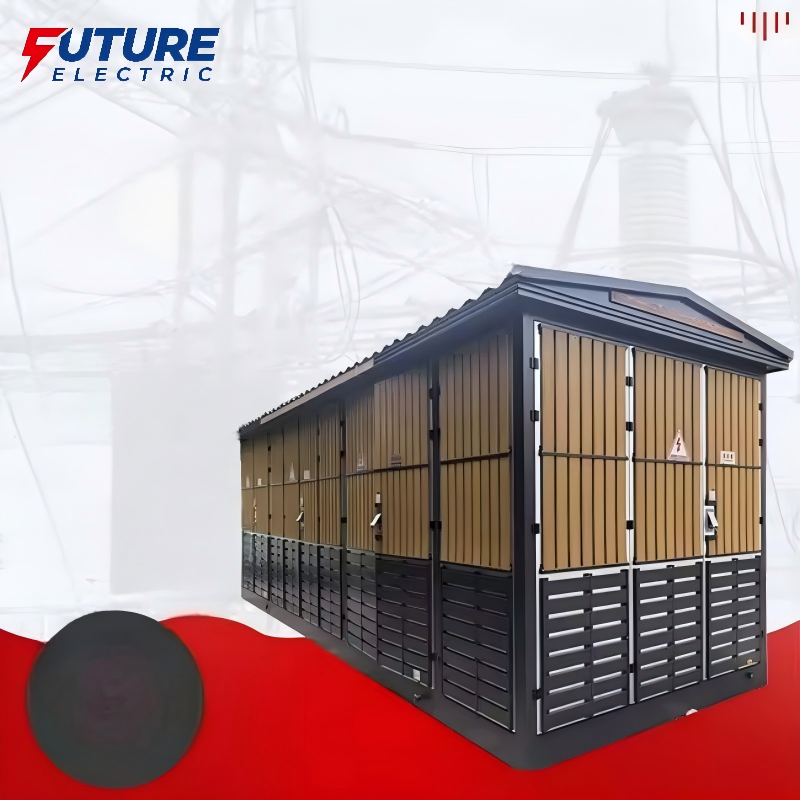

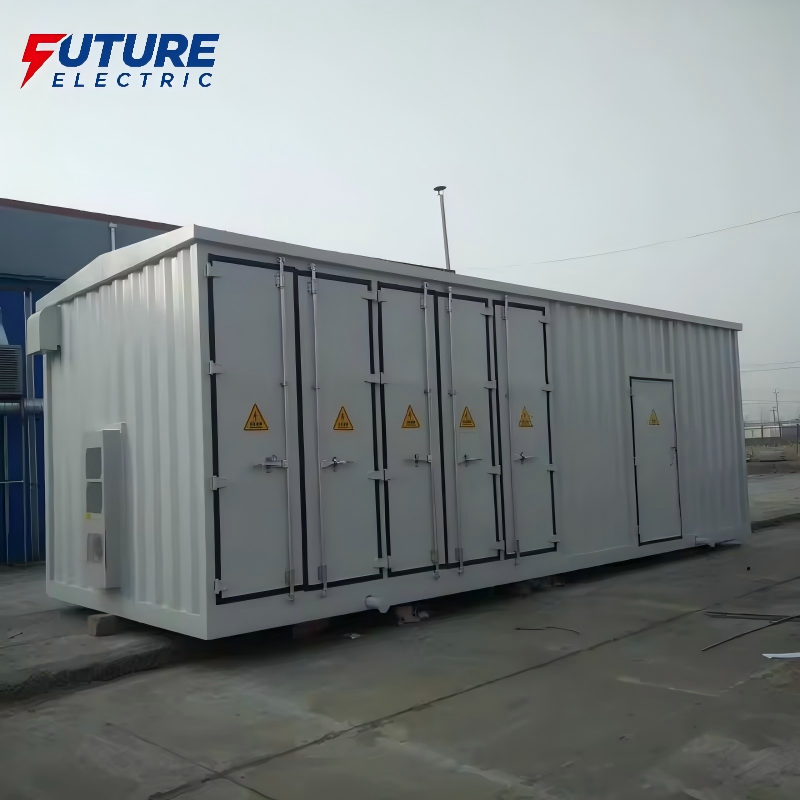

Renewable Energy Compact Substations Introduction:

We manufacture renewable energy compact substations in various capacities and specifications. These are suitable for all sizes of grid connected renewable energy applications. They meet international standards, such as IEC and EN, providing superior performance. Users can set transformer parameters to match particular voltage, power, and environmental needs. The transformers are widely used in photovoltaic, wind and other renewable energy projects around the world, especially those that require fast deployment and high weather resistance. They help to optimise global renewable energy grid connections in an efficient and reliable way.

Our company’s renewable energy compact substations are developed on the basis of absorption of advanced technologies in the world. All performance indicators of these products are above IEC recommended standards.  The products have low loss and strong weather resistance, which greatly improve safety, reliability and economy.

Product model: Compact substation for renewable energy

The main technical parameters: Rated voltage is below 35kV, rated capacity ≤ 2000kVA They are all modular, pre-assembled power distribution equipment meeting IEC standards.

Main application areas: Large-scale ground-mounted PV power plants, onshore wind farms, renewable energy projects in deserts in the Middle East, renewable energy projects in the coastal areas of Southeast Asia.

Product Features/Functions

1. Industry leader in energy saving performance; amorphous alloy core optional; no load loss reduced by 70%, reducing operating cost significantly.

2. Modular design, compact structure and small footprint greatly reduce construction cost.

3. Ultra high weather resistance Adaptation to extreme environments -40℃ to +60℃ Resistance to salt spray and sandstorms

4.Fully sealed design, IP54 protection grade, applicable to harsh outdoor environment, maintenance-free.

5. High reliability and long life; truly maintenance-free operation.

Quality Assurance and Quality Control

1. Product Life Guarantee: Our transformer service life is not less than 30 years.

2. We carefully select certified suppliers, and strictly control and inspect all raw materials and components according to quality management standards.

3. We rigorously meet the requirements of contracts and technical agreements to produce high-quality, customer-satisfying products.

4. All performance parameters and technical specifications of our transformers meet or exceed international standards.

5. We will full support for customers to come to the factory for on-site supervision of the production process.

6. Our service team offers 24/7 online technical support, including video calls, troubleshooting guides and relevant documentation.
