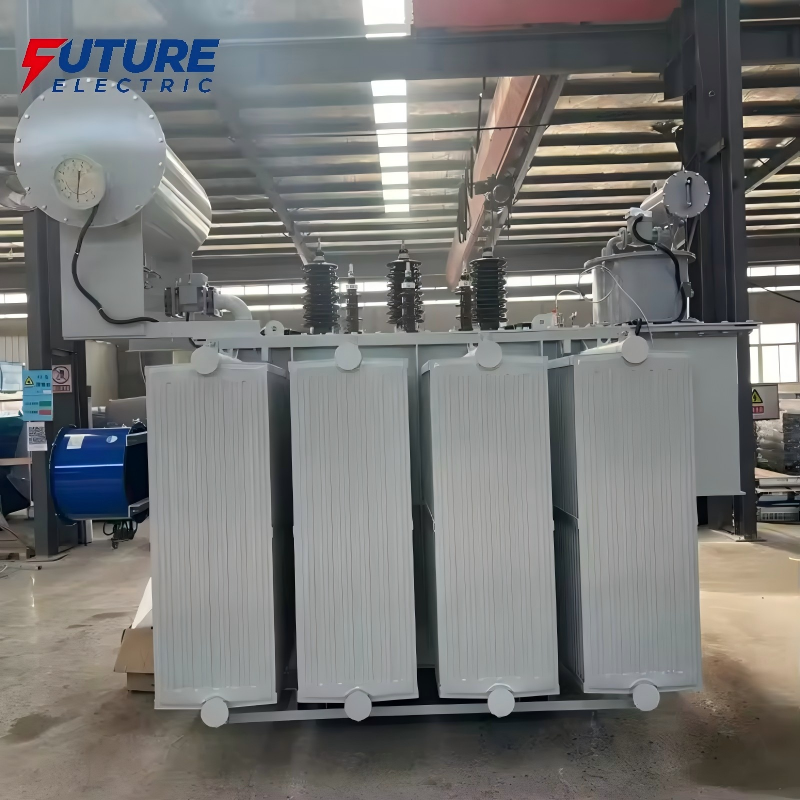

SZ11-35kV
Future Electric
Technical Parameters
Model | Rated Capacity | Voltage combination and Tap range | Connection | No-Load Loss | LoadLoss | Short Circuit impedance | Noload | ||
HighVoltage | High voltage Tap range% | LowVoltage | |||||||
SZ11-2000/35 | 2000 | 35 38.5 | ±3×2.5% | 6.3 6.6 10.5 11 | Yd11 | 2.3 | 19.24 | 6.5 | 0.8 |
SZ11-2500/35 | 2500 | 2.72 | 20.64 | 6.5 | 0.8 | ||||
SZ11-3150/35 | 3150 | 3.23 | 24.71 | 7 | 0.72 | ||||
SZ11-4000/35 | 4000 | 2.87 | 29.16 | 7 | 0.72 | ||||
SZ11-5000/35 | 5000 | 4.64 | 34.2 | 7 | 0.68 | ||||
SZ11-6300/35 | 6300 | 5.63 | 36.8 | 7.5 | 0.68 | ||||
SZ11-8000/35 | 8000 | YNd11 | 7.87 | 40.6 | 7.5 | 0.6 | |||
SZ11-10000/35 | 10000 | 9.28 | 48.1 | 7.5 | 0.6 | ||||
SZ11-12000/35 | 12500 | 10.94 | 56.9 | 8 | 0.56 | ||||
SZ11-16000/35 | 16000 | 13.17 | 70.3 | 8 | 0.54 | ||||
SZ11-20000/35 | 20000 | 15.57 | 82.8 | 8 | 0.54 | ||||
FAQs
When purchasing a 35kV on-load tap-changing transformer, you may want to know the following questions and answers.
Q: What types of 35kV transformers do you offer?
A: We offer a variety of 35kV transformers, including oil-immersed transformers with off-load and on-load tap-changing capabilities, as well as other customized energy efficiency ratings.
Q: Can you customize a transformer to my specific requirements?
A: Of course. We specialize in providing tailored solutions. You can specify various parameters such as power rating, input/output voltage, frequency (50 Hz/60 Hz), insulation class, cooling method, and applicable standards (IEC, ANSI, IEEE, etc.). Our technical team will carefully evaluate and confirm the feasibility of these solutions.
Q: Which international standards do your transformers comply with?
A: Our transformers primarily comply with IEC 60076. If needed, we can also provide products that comply with other regional standards such as ANSI/IEEE, CSA, EN, and DOE energy efficiency standards. Please specify the certification standards you require during your consultation.
Q: What are the common voltage and frequency levels?
A: Our transformers conform to global standards (e.g., 35 kV, 33 kV, 22 kV) and corresponding frequency standards (50 Hz or 60 Hz). We can also provide customized products to meet the needs of specific markets.
Q: How do I request a quote?
A: Please use our "Contact Us" form or send us an email detailing your requirements, order quantity, and destination port. The more detailed your information, the more accurate our quote will be.
