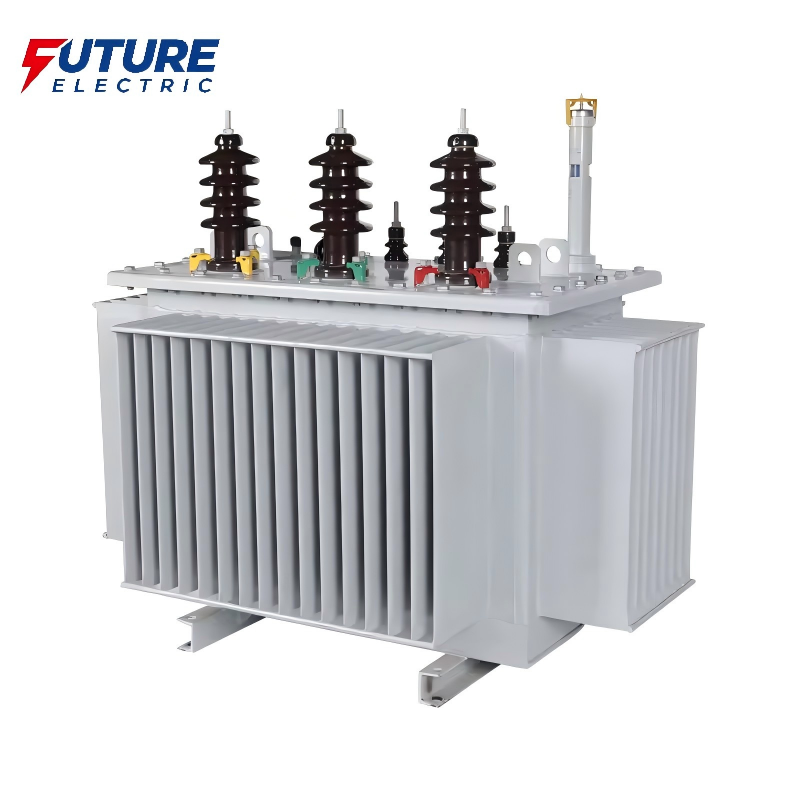

S11-M 20kV Hermetically Sealed Oil Filled Transformer

S11-M 20kV Hermetically Sealed Oil Filled Transformer

S1120KV oil-immersed non-excitation voltage regulating transformer is applicable to the power system of 50Hz/60Hz AC frequency and rated operating voltage of 20kV and below. It is widely used as a distribution transformer in medium voltage power distribution scenarios such as urban power distribution networks, industrial parks and new energy power plants all over the world, and is particularly suitable for the 20kV medium voltage power distribution market.

Model:
S11-M 20kV
Brand:
Future Electric


Availability:



Inquire

Product Description

Technical parameters

Model	Rated Capacity KVA	Voltage combination and Tap range			Connection symbol	No-Load Loss W	LoadLoss W	Short Circuit impedance %	Noload current %
Model	Rated Capacity KVA	HighVoltage KV	High voltage Tap range%	LowVoltage KV	Connection symbol	No-Load Loss W	LoadLoss W	Short Circuit impedance %	Noload current %
S11-M-30/20	30	20	±5% ±2×2.5%	0.4	Dyn11	90	660	5.5	2.1
S11-M-50/20	50					130	960		2
S11-M-63/20	63					150	1145		1.9
S11-M-80/20	80					180	1370		1.8
S11-M-100/20	100					200	1650		1.6
S11-M-125/20	125					240	1980		1.5
S11-M-160/20	160					290	2420		1.4
S11-M-200/20	200					330	2860		1.3
S11-M-250/20	250					400	3350		1.2
S11-M-315/20	315					480	4010		1.1
S11-M-400/20	400					570	4730		1
S11-M-500/20	500					680	5660		1
S11-M-630/20	630					810	6820	6	0.9
S11-M-800/20	800					980	8250		0.8
S11-M-1000/20	1000					1150	11330		0.7
S11-M-1500/20	1250					1350	13200		0.7
S11-M-1600/20	1600					1630	16950		0.6
S11-M-2000/20	2000					1950	19140		0.6
S11-M-2500/20	2500					2340	22220		0.5

FAQ

Here are some questions and answers you may want to know when you buy 20kV oil-immersed transformer.

Q: What kind of 20kV transformer do you have?

A: We have an array of 20kV transformers, from oil-immersed transformers with off load tap changing to on load tap changing. The 20kV distribution market can be tailored for energy efficiency ratings.

Q: Is it possible to tailor a transformer to suit my particular needs?

A: Yeah, sure. Our speciality is in providing customised solutions. You can choose many parameters such as power rating, input/output voltage, frequency (50 Hz/60 Hz), insulation class, cooling method and applicable standards (IEC, ANSI, IEEE, etc.). Our technical team will review and verify the feasibility of these solutions.

Q: What international standards do your transformers comply with?

A: Our transformers are mainly based on IEC 60076. We can also supply products to other regional standards as required including ANSI/IEEE, CSA, EN and DOE energy efficiency standards. Enquires should specify what certification standards are desired.

Q. What is the normal voltage and frequency?

A: Our transformers meet international standards (e.g. 20 kV, 22 kV, 33 kV) and the applicable frequency standards (50 Hz or 60 Hz). We also offer customised products to meet the needs of specific markets.

Q: How do I ask for a quote?

A: Send us an email or use our "Contact Us" form, tell us your requirements, order quantity and destination port. The more specific the information you give the more accurate our quote will be.
