American Style Compact Substation

Other names:
American-style Pad-Mounted Transformer
Compartmental Type Pad-Mounted Transformer
ANSI Standard Compact SubstationRated voltage:6kV- 11kV
Rated voltage：10kV-36kV
Rated capacity：50kva-3000kVA

Model:
American-style
Brand:
Future Electric


Availability:



Inquire

Product Description

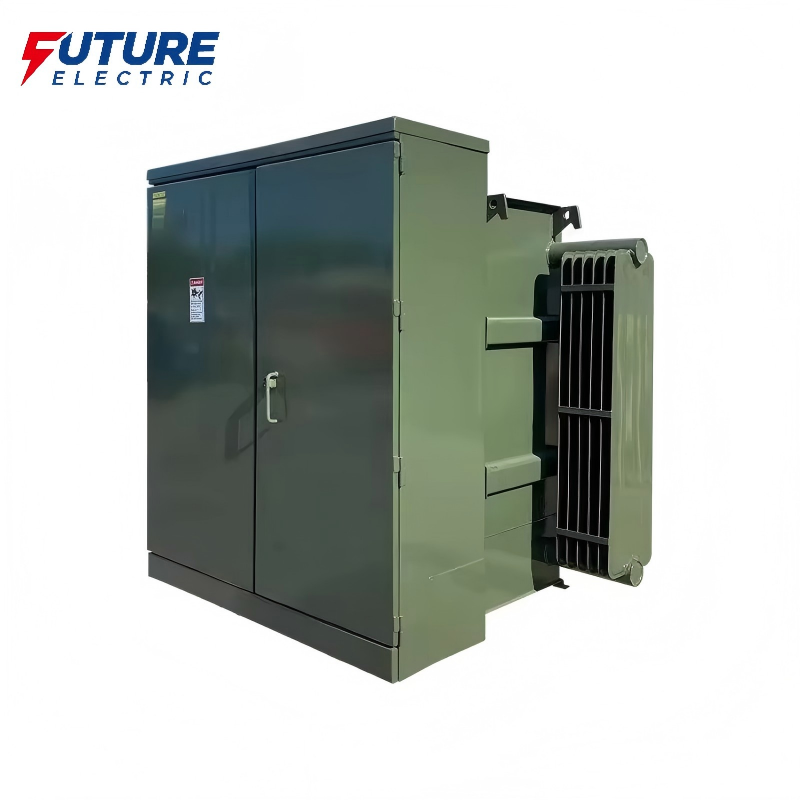

ANSI Standard Pad Mounted Transformer American Style

Type: Padmount Transformer

Phase: Single-phase/Three-phase

Service: Personalized Service

Product Details:

The pad-mounted transformer in American style is a compact integrated power distribution device, specially designed for the ANSI standard market. The transformer, high voltage switch, fuses and other components are integrated in a fully sealed enclosure, making the structure compact, the installation small and easy. It meets ANSI/IEEE standards for high safety and maintenance-free operation and is the preferred choice worldwide for outdoor power distribution. It is widely used in outdoor power distribution projects in North America, South America, Southeast Asia and other regions.

Normal Environmental Conditions

1. Ambient temperature: Maximum temperature not higher than +40℃, minimum temperature not lower than -25℃; monthly average temperature not higher than +30℃; annual average temperature not higher than +20℃

2. Altitude: Equal or less than 1000 meters

3. Power supply voltage Wave form approximately sinusoidal

4. Three phase supply voltage approximately symmetric

5. Harmonic content of load current shall not be more than 5% of the rated current

6. Location of installation: soil, outdoors

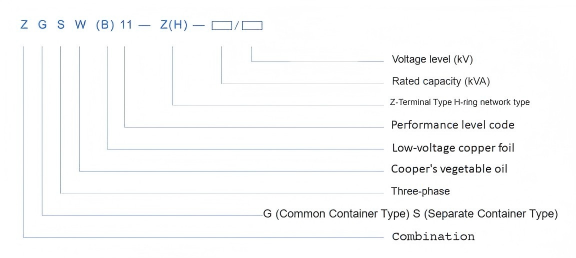

Model:

American Style Compact Substation compact substation American-Style Transformers American Substation Transformer Prefabricated Substation(American Style Box) American-style pad-mounted transformer American-Style Box Substation Manufacturers American Type Prefab Substation American Type Prefabricated Substation American Style Box Substation
