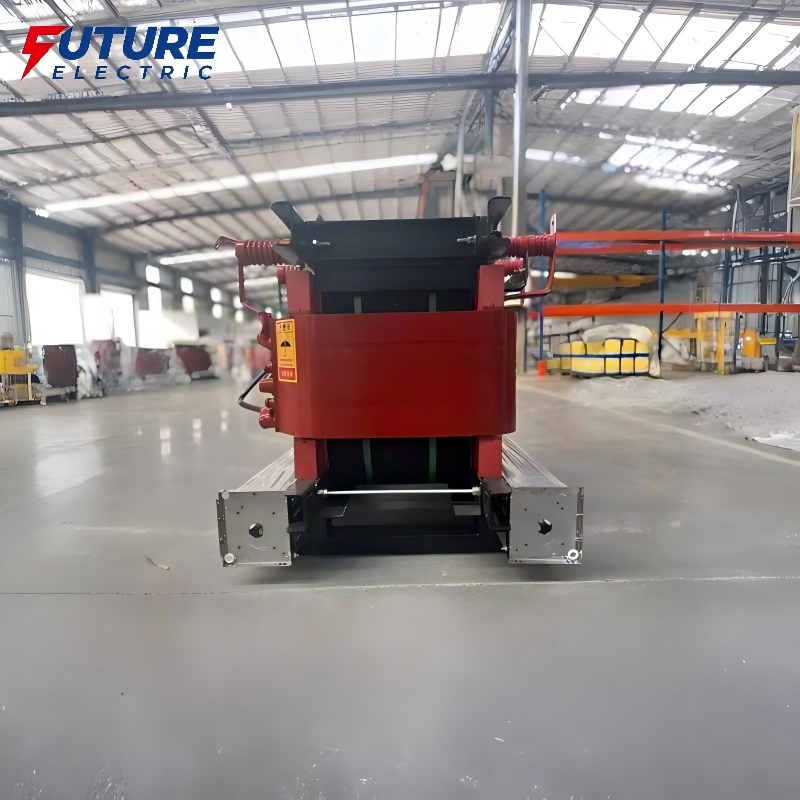

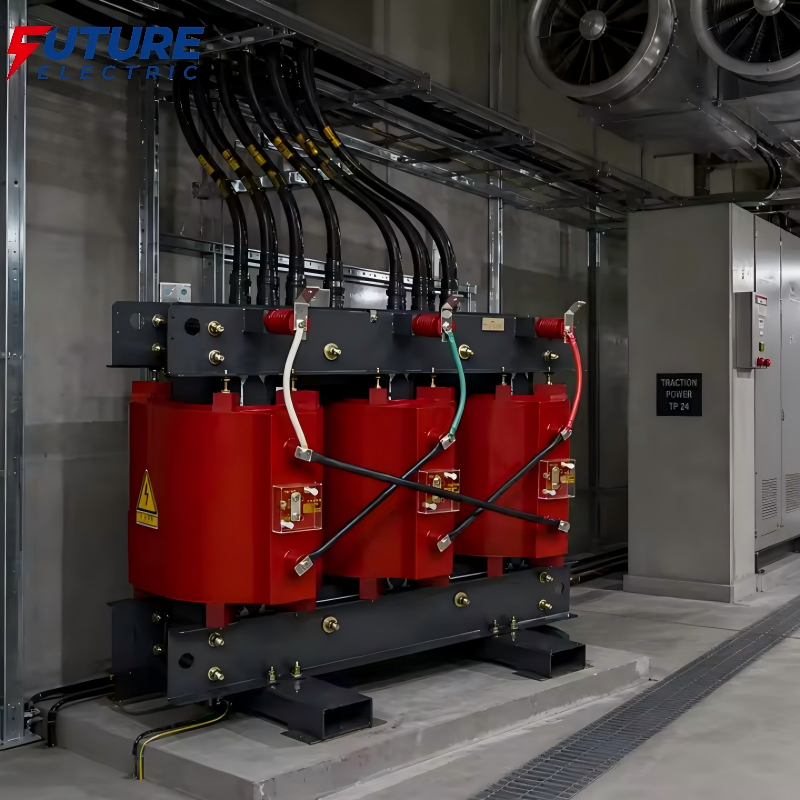

SCB14 35kV Dry type distribution transformer

SCB14 35kV Dry Type Distribution Transformer

The SCB14 series epoxy resin cast dry-type power transformers have the advantages of low loss, low noise, high efficiency and fire and explosion protection, achieving excellent energy saving effect and completely eliminating the risks of environmental pollution. In contrast to traditional oil-immersed transformers, dry-type transformers do not need insulating oil, which eliminates the risk of oil leakage and fire hazards. The epoxy resin cast winding possesses good moisture-proof and insulation properties, which can effectively prevent insulation aging and greatly improve the operational reliability.

Model:
SCB14 35kV
Brand:
Future Electric


Availability:



Inquire

Product Description

Technical Parameter

Model	Rated Capacity KVA	Voltage combination and Tap range			Connection symbol	No-Load Loss KW	Load Loss KW	Short Circuit impedance %	Noload current %
Model	Rated Capacity KVA	HighVoltage KV	High voltage Tap range%	LowVoltage KV	Connection symbol	No-Load Loss KW	Load Loss KW	Short Circuit impedance %	Noload current %
SCB14-30/10	30	10 10.5	±2×2.5	0.4	Dyn11	0.13	0.64	4	2.1
SCB14-50/10	50					0.185	0.9		2
SCB14-63/10	63					0.23	1.07		1.9
SCB14-80/10	80					0.25	1.24		1.8
SCB14-100/10	100					0.27	1.415		1.6
SCB14-125/10	125					0.32	1.665		1.5
SCB14-160/10	160					0.365	1.915		1.4
SCB14-200/10	200					0.42	2.275		1.3
SCB14-250/10	250					0.49	2.485		1.2
SCB14-315/10	315					0.6	3.125		1.1
SCB14-400/10	400					0.665	3.59		1
SCB14-500/10	500					0.79	4.39		1
SCB14-630/10	630					0.885	5.365	6	0.9
SCB14-800/10	800					1.035	6.265		0.8
SCB14-1000/10	1000					1.205	7.315		0.7
SCB14-1250/10	1250					1.42	8.72		0.6
SCB14-1600/10	1600					1.665	10.555		0.6
SCB14-2000/10	2000					2.075	13.005		0.5
SCB14-2500/10	2500					2.45	15.445		0.4

Application Situations

1.Power Distribution in urban commercial and residential areas

Indoor power distribution rooms, high-rise office buildings and urban residential communities power distribution.

Features: fire and explosion proof, low noise, maintenance free, fully meets indoor safety operating requirements.

2. Industrial and Mining Facilities and Industrial Parks

Rooms for power transmission in factories and industrial workshops: machine manufacturing, equipment manufacturing, processing workshops, etc.

Features: high overload capacity, high short-circuit withstand capability, adaptable to industrial load fluctuation.

3. Key Infrastructure

Power distribution in hospitals, data centers and schools

Features: High reliable, Low noise, 24/7 continuous operation capability.

4. Underground/Tunnel/High Safety Demand Environments

Underground substations, tunnel power distribution and other high safety requirements.

Features: 1. Oil-free design, fireproof and explosion-proof, completely eliminate the safety hazards.
