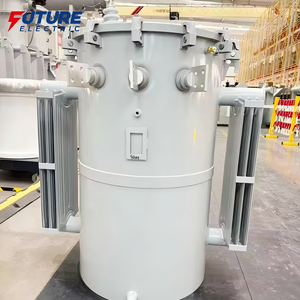

D11-M Single Phase Distribution Transformer

D11-M.R 10kV single-phase oil-immersed wound core transformer is suitable for power system with AC frequency 50Hz/60Hz, rated operating voltage 10kV and below. It is widely used as a distribution transformer in small-scale power distribution such as rural power grids, remote areas, and suburban residential power distribution all over the world, and is especially suitable for pole-mounted installation.

Model:
D11-M
Brand:
Future Electric


Availability:



Inquire

Product Description

Technical parameters

Parameter	Details
Capacity	50-200kVA (customizable)
Voltage Ratio	11kV/0.4kV 13.8kV/0.24kV
Protection Class	IP54
Cooling Method	Oil-Immersed (ONAN)
Efficiency	≥99% (meets DOE/IEC)
Service Life	25+ years

FAQs

When you purchase a single-phase pole-mounted transformer, you may want to know the following questions and answers.

Q. What single phase transformers do you carry?

A: We have several types of single-phase transformers including oil-immersed pole-mounted and bench-mounted single-phase transformers. Our D11-M.R core model is a top energy-saving product.

Q: Can you customize a transformer to my particular needs?

A: Sure. We specialize in tailor made solutions. You can specify parameters such as power rating, input/output voltage, frequency (50 Hz/60 Hz), insulation class, cooling method, applicable standards (IEC, ANSI, IEEE, etc.). “Our technical team will take a careful look at these solutions and validate their feasibility.

Q: What international standards do your transformers comply with?

A: Our transformers are mostly IEC 60076 compliant. If you need products to other regional standards such as ANSI/IEEE, CSA, EN and DOE energy efficiency standards, we can also provide these as necessary. Please specify the certification standards you require at your consultation.

Q: Usual voltage and frequency ?

A: Our transformers meet international standards (e.g., 10 kV, 13.8 kV, 22 kV) and the relevant frequency standards (50 Hz or 60 Hz). We can also provide tailor-made products to fit the requirements of specific markets.

Q: How do I ask for a quote?

A: Please send us an email or use our "Contact Us" form to tell us your requirements, order quantity, and destination port. The more details you give us, the more accurate our quote will be.
