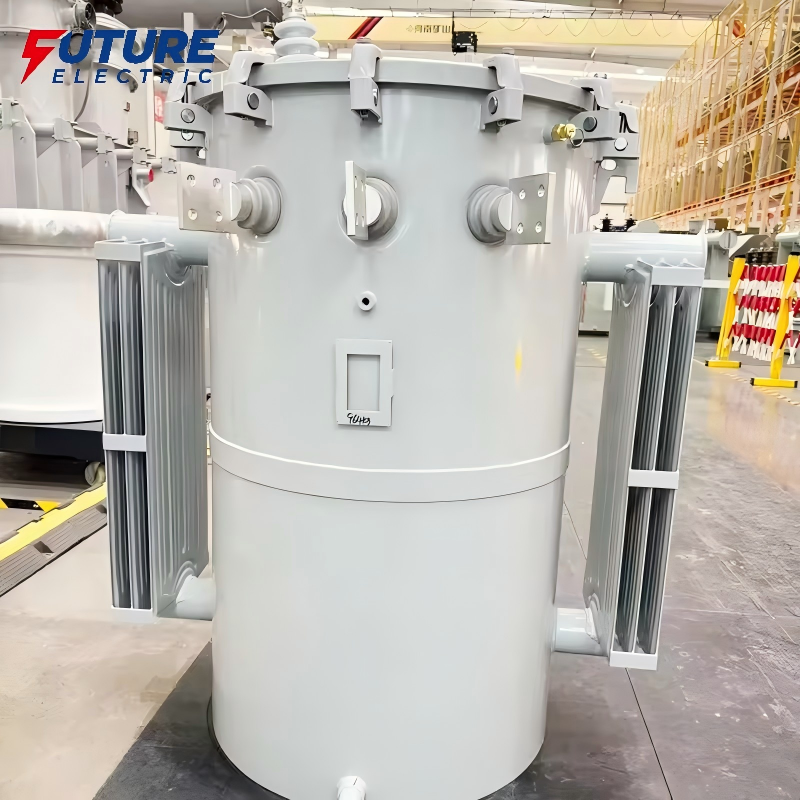

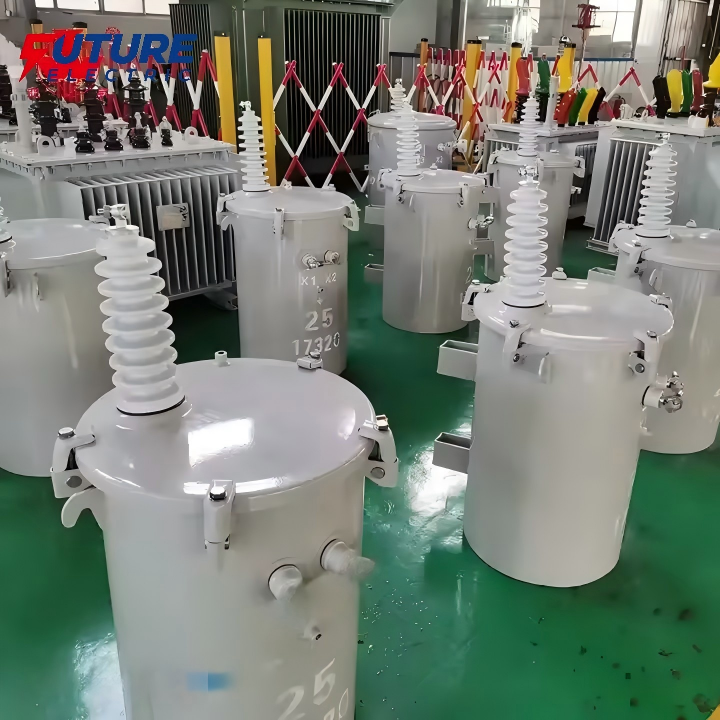

D11-M Single Phase Transformer

D11-M.R series single phase oil immersed distribution transformer with wound core is a high efficiency and energy saving type specially developed for small scale power distribution applications. It adopts R-type wound core technology, and has excellent advantages such as low loss, low noise, small size and convenient installation. The seamless structure of the wound core greatly reduces the magnetic reluctance compared with the traditional laminated core single-phase transformer, which reduces the no-load loss by more than 20%. Excellent energy saving performance is achieved, which perfectly satisfies the demand of the small power distribution market worldwide.

Model:
D11-M
Brand:
Future Electric


Availability:



Inquire

Product Description

Product Features:

1. Transformer core adopts R type wound core technology, seamless structure, extremely low magnetic reluctance, greatly reducing no-load loss, no-load current and noise, and energy saving is far beyond the traditional laminated core.

2. Compact construction of the transformer allows direct mounting on poles, no need for large foundation, very low installation costs and suitability for fast deployment for remote locations.

3. The transformer is fully sealed oil-immersed structure, no maintenance, service life of more than 25 years. Suitable for a variety of outdoor environments, no oil treatment is needed.

4. Fully sealed and oil immersed, excellent moisture and dust resistance, can be used in harsh environments such as tropical and desert areas.

Technical Specifications

Parameter	Details
Capacity	50-200kVA (customizable)
Voltage Ratio	11kV/0.4kV 13.8kV/0.24kV
Protection Class	IP54
Cooling Method	Oil-Immersed (ONAN)
Efficiency	≥99% (meets DOE/IEC)
Service Life	25+ years
