Product Description

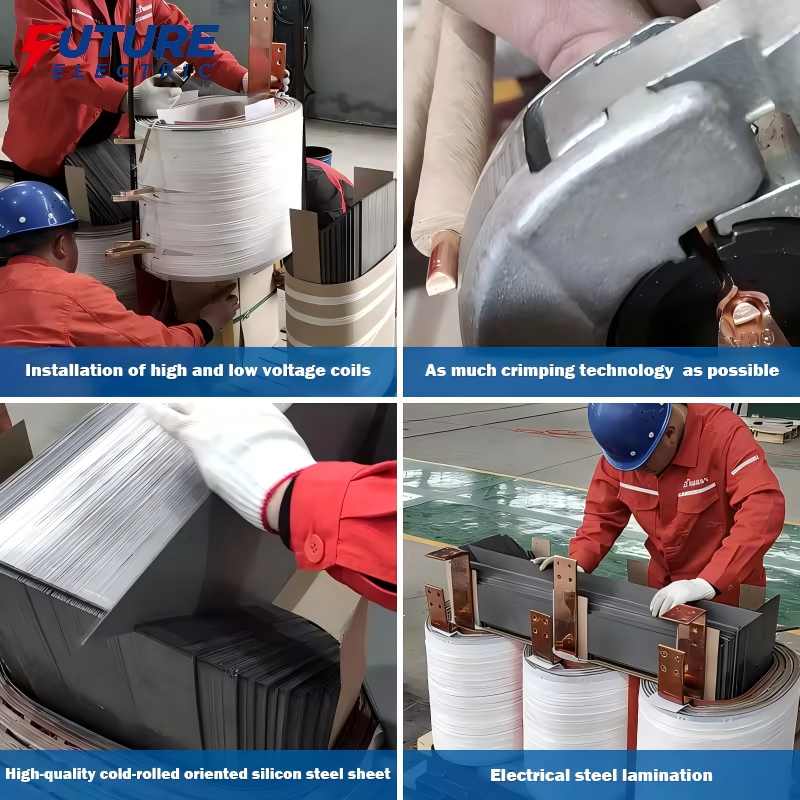

The S11-M-20 series 20kV oil-immersed transformer adopts high-permeability cold-rolled silicon steel core, full-oblique joint structure, which can effectively reduce losses. The windings are made of high quality oxygen free copper wire. The high voltage winding is of multi-layer cylindrical structure. All fasteners are specially treated to prevent loosening. This product has high efficiency and low loss, which can save a lot of energy and operating costs, and is the preferred choice for 20kV power distribution scenarios. At present, it is widely used in the urban power distribution network, industrial parks and new energy power plants around the world.

Environmental conditions normal

1. Ambient temperature: Maximum temperature is not more than +40℃, minimum temperature is not less than -25℃; monthly average temperature is not more than +30℃; annual average temperature is not more than +20℃

2. Altitude: Maximum 1000 m

3. Roughly sinusoidal power supply voltage waveform

4. Three-phase symmetrical power supply voltage approx.

5. Total harmonic distortion of the load current shall not be more than 5 percentage of the rated current

6. Installation Site: Outdoor substation/platform
