European-style
Future Electric

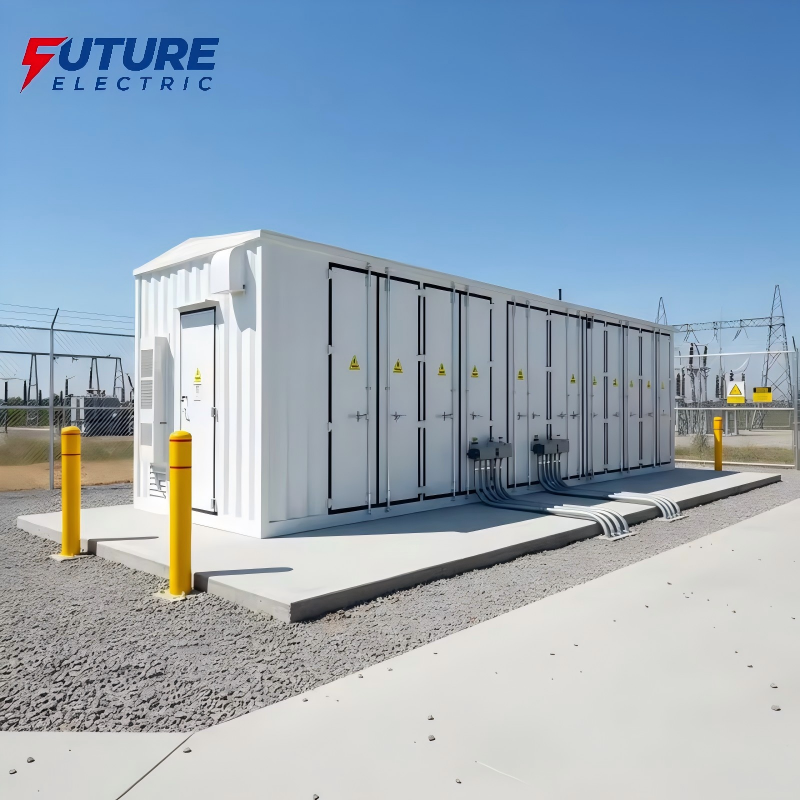

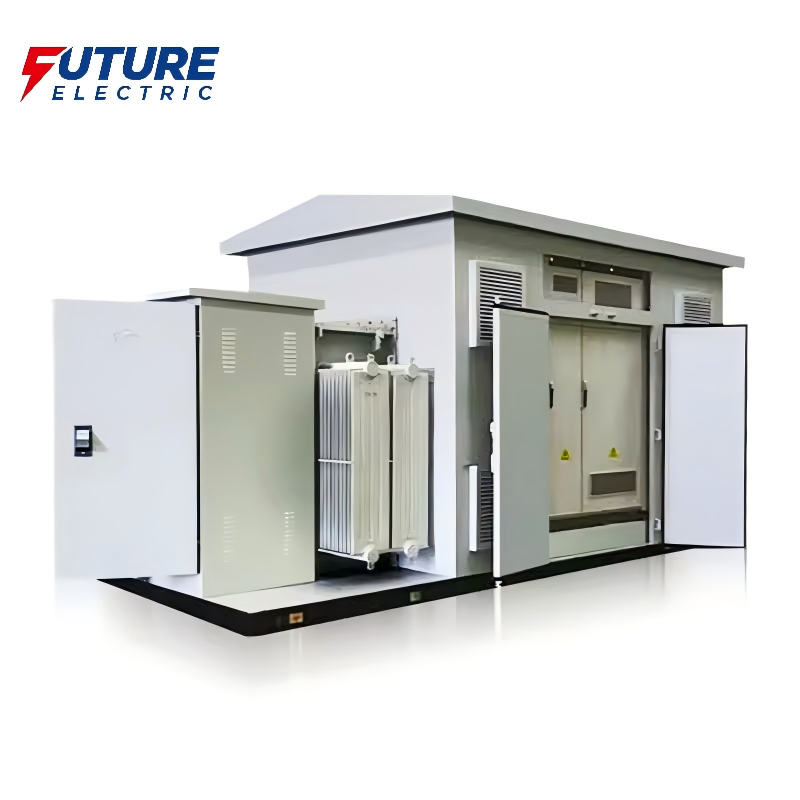

The Compact Substation is a prefabricated modular unit for power distribution, designed for the IEC standard market. The fully sealed enclosure consists of three independent units: high-voltage compartment, transformer compartment and low-voltage compartment. Compared with traditional substations, it reduces floor space by 60% and installation time by 70%, perfectly meeting the needs of global outdoor power distribution. It has high safety, intelligent monitoring and maintenance-free operation, meeting IEC standards and becoming the preferred choice for global outdoor power distribution.
Technical Indicators
Item | Parameter | Remark |
Rated voltage | 0.4/10kV | Customizable |
Highest voltage | 12kV | |
Rated frequency | 50/60Hz | |
Rated capacity | 30-2500kVA | |
Linkage group label | Dyn11、Yyn0 | |
Tap range | ±2×2.5、±5 | |
Short-circuit impedance | ±2×2.5、±5 | |
Protection level | IP54 | Customizable |
Noise level | ≤50dB |
Use cases
1. Power distribution networks in European cities
European City power distribution networks conforming to IEC standards high land costs
Features Compact structure, small footprint, saving land cost.
2. Industrial Parks in Southeast Asia
Large industrial parks in Southeast Asia, heavy load, fast deployment.
Features Modular design that allows rapid deployment and rapid expansion of power supply capacity.
3. Expansion of African Power Grid
African power grid expansion projects, low cost, rapid deployment
Features Easy installation Quick commissioning Quick power system capacity increase
4. Link to New Energy Power Plants Grid
Grid connection and distribution of new energy power plant, including photovoltaic and wind power.
Features: high reliability, low loss, intelligent monitoring, ensure the quality of grid connection.
