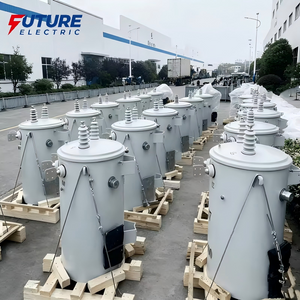

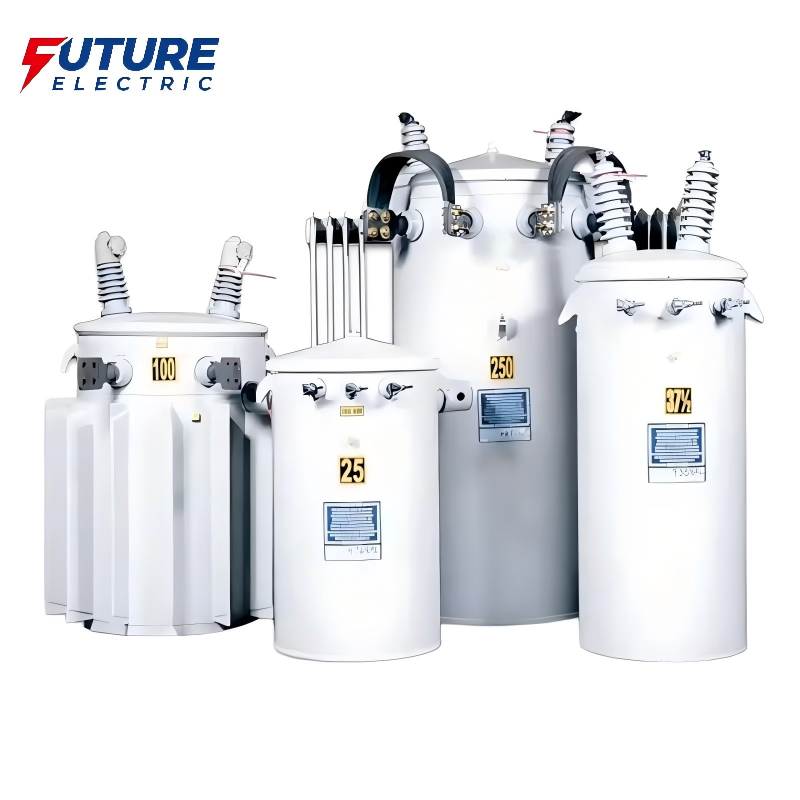

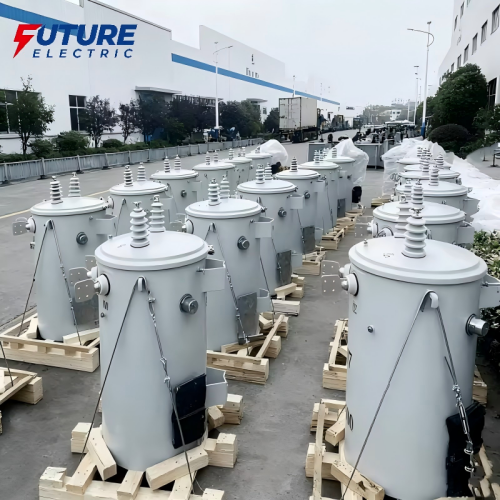

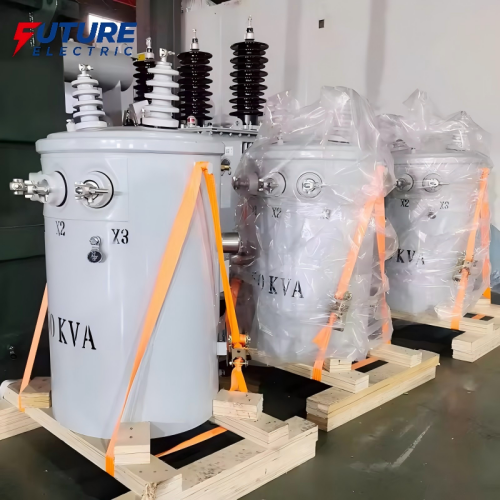

Product Introduction:

Single phase transformers may be used singly for the supply of a single phase load or as one of three units in a bank for the supply of a three phase load. The unit can be direct mounted to a wooden or concrete pole or cluster mounted on a pole for three phase use. Our single phase overhead distribution transformer is widely used in a variety of places such as rural areas, remote locations, and scattered villages to supply high quality power for daily lighting, agricultural production, and industrial plants. Besides, it is also suitable for the energy saving projects for railway and urban grid.

Why Our Pole Mounted Transformer is Right for Your Market?

Built for the world’s most demanding regions (Philippines, US, UK, Southeast Asia & Africa) — our transformers deliver local standard compliance, rugged design and flexible customization to fit your grid needs.

Core Advantages——Market-Matched Compliance

US/Canada: ANSI/IEEE C57 + UL/CSA certified, complies with DOE 2016 efficiency norms

EU/SE Asia: IEC 60076 + CE mark, IP54 weatherproof for tropical/humid areas

Africa: Oil immersed models for cost effectiveness, dust/moisture proof for rural deployments.

Customizable to your own grid

Capacity: 5kVA – 200kVA;

Voltage: 11kV/0.4kV, 13.8kV/0.24kV (or per local grid specs)

Options: Copper/aluminium windings, mineral/bio-degradable oil, CSP self-protection module

One-Stop ProcurementBundle with compatible accessories (fuses, insulators, mounting brackets) – reduce multi-supplier costs & coordinate delivery

Application scenarios：

1.Rural/urban grid expansion

2.Suburban power distribution

3.Remote area electrification

4.Street lighting & small industrial loads

Product Characteristics：

Vacuum Interrupters: Achieve 20kA breaking capacity within 0.06s, certified by IEC 62271-100

Smart Control: Integrated DTU with 4G/LoRaWAN enables real-time load monitoring and remote switching via SCADA

Adaptive Protection: Auto-isolates permanent faults while tolerating transient surges, reducing false trips by 70%

Durable Design: Stainless-steel housing (IP66) withstands extreme temperatures from -40℃ to +75℃

Pre-configured Interfaces: Support solar/storage microgrid synchronization and optional backup power for 48h operation during blackouts

Technical Parameter
