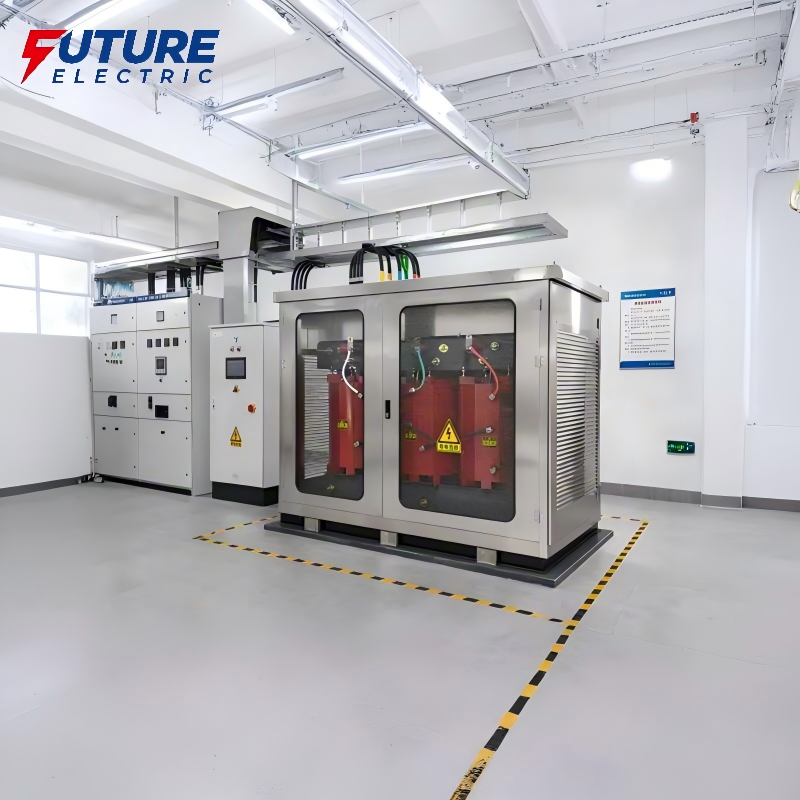

SCB18 35kV 3 Phase Dry Type Transformer

The SCB18 series epoxy resin cast dry-type power transformer is an upgraded model of the industry flagship and has the advantages of extremely low loss, ultra-low noise, ultra-high efficiency, and top-level fire and explosion protection. It also provides the best energy efficiency in the industry and removes all risks of environmental pollution. The SCB18 uses ultra-thin silicon steel sheets and improved casting process compared with traditional dry-type transformers to realize better comprehensive performance. The moisture resistance and insulation are excellent with the epoxy resin cast windings, which can effectively inhibit insulation aging and greatly improve the operational reliability.

Model:
SCB18 10-35kV
Brand:
Future Electric


Availability:



Inquire

Product Description

Technical Parameter

Model	Rated Capacity KVA	Voltage combination and Tap range			Connection symbol	No-Load Loss KW	Load Loss KW	Short Circuit impedance %	Noload current %
Model	Rated Capacity KVA	HighVoltage KV	High voltage Tap range%	LowVoltage KV	Connection symbol	No-Load Loss KW	Load Loss KW	Short Circuit impedance %	Noload current %
SCB18-30/10	30	10 10.5	±2×2.5	0.4	Dyn11	0.105	0.64	4	2.1
SCB18-50/10	50					0.155	0.9		2
SCB18-63/10	63					0.18	1.07		1.9
SCB18-80/10	80					0.21	1.24		1.8
SCB18-100/10	100					0.23	1.415		1.6
SCB18-125/10	125					0.27	1.665		1.5
SCB18-160/10	160					0.31	1.915		1.4
SCB18-200/10	200					0.36	2.275		1.3
SCB18-250/10	250					0.415	2.485		1.2
SCB18-315/10	315					0.51	3.125		1.1
SCB18-400/10	400					0.57	3.59		1
SCB18-500/10	500					0.67	4.39		1
SCB18-630/10	630					0.75	5.365	6	0.9
SCB18-800/10	800					0.875	6.265		0.8
SCB18-1000/10	1000					1.02	7.315		0.7
SCB18-1250/10	1250					1.205	8.72		0.6
SCB18-1600/10	1600					1.415	10.555		0.6
SCB18-2000/10	2000					1.76	13.005		0.5
SCB18-2500/10	2500					2.08	15.445		0.4

Application Scenarios

1. Commercial Power Distribution in the Top End

Power Distribution for Premium Commercial Complexes, Class-A Office Buildings and Luxury Hotels

Features: Extreme energy saving, low noise, maintenance free, fully meet the energy efficiency and experience requirements of high-end projects.

2. IT Infrastructure and Mega Data Centers

Power distribution for ultra large scale data centers, server rooms and communication hubs.

Features: Highly energy efficient, can operate 24/7, significantly cutting long-term operating costs.

3. Critical Transport Infrastructure

Core power distribution for subways, airports, railway stations, and cross-sea tunnels

Features: High reliability, fire and explosion resistant, safe operation of critical transportation facilities.

4. Underground/Ultra-high Safety Requirement Environments

Power distribution for underground substations, ultra-high safety requirements environments and sensitive environments

Features: Oil free design , top level fire and explosion resistant , eliminate any safety hazards completely.
