In modern power distribution systems, maintaining a stable output voltage is not a luxury — it is a necessity. Whether you operate an industrial facility, manage a utility grid, or run a commercial building, voltage fluctuations can lead to equipment damage, production downtime, and increased energy costs. This is where a voltage regulation transformer becomes indispensable.
A voltage regulating transformer — also called a tap changing transformer or voltage regulation transformer — is designed to compensate for voltage drops and fluctuations in the distribution network, ensuring that end-users receive consistent, reliable power. This guide covers everything you need to know about transformer voltage regulation, from working principles to types, applications, and how to source the right equipment from a trusted voltage regulation transformer manufacturer.
What Is Voltage Regulation in a Transformer?
Voltage regulation of transformer refers to the percentage change in secondary voltage when the transformer transitions from a no-load condition to a full-load condition, while the primary voltage remains constant. It is one of the most critical performance indicators of any electrical transformer.
In simple terms, when a power transformer or distribution transformer operates under load, internal impedance causes a voltage drop across the windings. The smaller this drop, the better the voltage regulation. A transformer with good voltage stability will deliver a near-constant output regardless of load variations — a key requirement for sensitive industrial equipment and modern electronic devices.The formula for calculating voltage regulation is:
Voltage Regulation (%) = (V_no-load - V_full-load) / V_full-load × 100%
A lower percentage indicates superior regulation. Ideally, transformer voltage regulation should be as close to zero as possible, especially in applications requiring constant voltage supply.
How Does a Voltage Regulation Transformer Work?
A transformer with voltage regulation achieves output adjustment through a mechanism called a tap changer. The tap changer alters the transformer's turns ratio by connecting to different tap points on the winding, effectively raising (boosting) or lowering (bucking) the output voltage. This capability is essential for voltage drop compensation in long distribution lines and for voltage fluctuation mitigation caused by changing loads.
The basic working principle involves an autotransformer configuration where:
1. The shunt winding is connected across the incoming line.
2. The series winding, with multiple tap points, is connected in series with the load.
3. By changing which tap is active, the number of active turns on the series winding changes, adjusting the output voltage up or down.
Combined with an electronic controller that continuously monitors output voltage via a potential transformer, the system automatically activates the tap changer to maintain voltage within a preset bandwidth — delivering effective voltage control and power quality improvement.

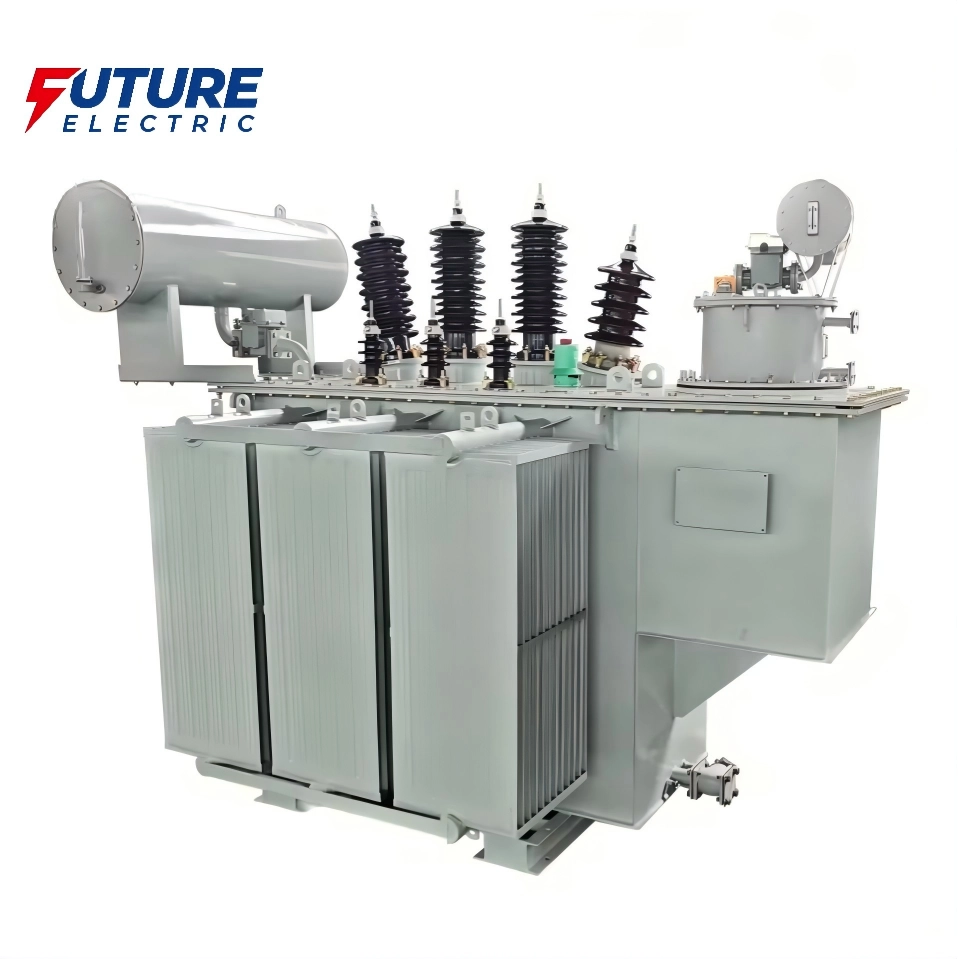

Figure 1: A three-phase oil-immersed power transformer with on-load tap changer (OLTC)
There are two main categories of tap changers used in voltage regulation transformers:
An on load tap changer — also referred to as an OLTC transformer or load tap changer transformer — allows voltage adjustment without interrupting the power supply. The tap change occurs while the transformer remains energized and under load. This makes OLTC-equipped transformers ideal for applications where continuous operation is critical, such as:
● Utility substations
● Industrial process lines
● Data centers
● Hospitals and healthcare facilities
Automatic voltage regulation transformer systems typically integrate an OLTC with an electronic automatic voltage regulator (AVR) that monitors voltage levels and triggers tap changes as needed.
An off circuit tap changer (also known as a de-energized tap changer or NLTC) requires the transformer to be disconnected and de-energized before any tap adjustment can be made. While less flexible than OLTC, OCTC transformers are simpler, more cost-effective, and well-suited for applications where load conditions are relatively stable or where seasonal adjustments are sufficient.
Feature | On Load Tap Changer (OLTC) | Off Circuit Tap Changer (OCTC) |
Adjustment during operation | Yes | No (must de-energize) |
Complexity | Higher | Lower |
Cost | Higher | Lower |
Typical applications | Substations, critical loads | Seasonal adjustments, stable grids |
Integration with AVR | Common | Rare |
An automatic voltage regulation transformer combines a tap changer with an electronic AVR controller. The AVR continuously measures the output voltage, compares it against a reference setpoint, and sends signals to the tap changer motor drive when correction is needed. This closed-loop system ensures that the voltage stability target is maintained 24/7 without manual intervention.
Modern AVR controllers offer features including:
● Programmable voltage bandwidth (typically ±0.5% to ±2%)
● Time delay settings to avoid unnecessary tap changes during transient fluctuations
● Line drop compensation for long feeders
● Communication interfaces (SCADA, DNP3, Modbus) for remote monitoring
● Data logging and event recording
These systems are essential components of distribution voltage regulator installations and substation voltage regulator deployments, where unattended operation and remote control capabilities are expected.
A distribution transformer equipped with tap changers serves as a step voltage regulator on medium-voltage distribution feeders. Available as single-phase or three phase voltage regulator units, these transformers maintain voltage within ANSI or IEC standards at the customer meter point, even under heavy loading conditions.
Large power transformer units in transmission substations commonly integrate OLTC mechanisms for wide-range voltage adjustment. These medium voltage transformer and high-voltage units handle voltages from 34.5 kV up to 345 kV and beyond, ensuring grid-level voltage stability.
Oil immersed transformer designs with voltage regulation are the standard choice for outdoor and high-power applications. The insulating oil provides superior cooling and dielectric strength, making them suitable for substation voltage regulator duty. Dry type transformer variants with tap changers are preferred for indoor installations, commercial buildings, and environmentally sensitive areas where oil containment is not feasible.
Three phase transformer units with integrated voltage regulation are the backbone of industrial power distribution. They serve factories, processing plants, mining operations, and large commercial complexes where balanced three-phase power with tight voltage tolerance is mandatory for motor-driven equipment.
Several factors influence how well a voltage regulating transformer performs in the field:
●Load variation : Frequent and large load swings are the primary driver of voltage fluctuation. A fast-responding OLTC can compensate, but extremely dynamic loads may require supplementary regulation equipment.
●Winding quality : High-quality copper or aluminum windings with proper insulation minimize internal resistance, reducing the inherent voltage drop before regulation even begins.
●Tap changer condition : Regular maintenance of OLTC contacts, motor drives, and insulating oil ensures reliable operation. Worn contacts can cause arcing and delayed response.
●Distribution line characteristics : Long feeders with high impedance exacerbate voltage drops.Voltage drop compensation
settings in the AVR controller can offset this effect.
●Ambient conditions : Temperature extremes and altitude can affect cooling efficiency, which indirectly impacts regulation performance through thermal effects on winding resistance.
Investing in a high-quality voltage regulation transformer delivers measurable operational and financial benefits:
●Equipment protection : Sensitive electronics, motors, and control systems operate within their rated voltage window, extending service life.
●Energy efficiency : Motors running at optimal voltage consume less current and generate less heat, reducing overall energy costs.
●Power quality improvement : Reduced harmonics, flicker, and voltage sags contribute to better overall power quality improvement throughout the facility.
●Regulatory compliance : Utilities must meet voltage delivery standards (e.g., ANSI C84.1 in the United States). Proper regulation ensures compliance and avoids penalties.
●Reduced downtime : Consistent voltage means fewer equipment trips, brownouts, and production interruptions.
A standard transformer provides a fixed turns ratio and delivers a fixed output voltage. A voltage regulation transformer incorporates a tap changer mechanism that allows the output voltage to be adjusted — either manually (off-circuit) or automatically (on-load) — in response to varying load conditions.
A step voltage regulator is typically a single-phase autotransformer with an integrated tap changer, used on distribution feeders. An OLTC transformer is a full power or distribution transformer with a built-in on-load tap changer. Functionally similar, step regulators are often deployed as standalone devices on existing feeders, while OLTC transformers combine transformation and regulation in one unit.
Yes. Dry type transformer designs can be equipped with off-circuit tap changers or, in some configurations, on-load tap changers. They are widely used in indoor commercial and industrial settings where voltage regulation is needed without the maintenance requirements of oil-filled equipment.
OLTC maintenance intervals depend on the number of operations and operating environment. As a general guideline, inspections should occur annually, with comprehensive maintenance (contact inspection, oil filtration or replacement) every 3-5 years or per the manufacturer's recommendation.
A medium voltage transformer with regulation typically covers 2.4 kV to 34.5 kV for distribution applications. Power transformer units with OLTC can handle transmission-level voltages up to 345 kV and beyond. Low-voltage regulation transformers for commercial and light industrial use are also available.
When planning to buy voltage regulation transformer equipment, selecting a reliable voltage regulation transformer manufacturer is critical. Consider the following factors:
● Technical expertise: Does the voltage regulation transformer factory have experience designing OLTC transformers for your specific voltage class and application?
● Customization capability : Can the manufacturer deliver a custom voltage regulation transformer designed to your exact specifications — kVA rating, primary/secondary voltage, tap range, impedance, and cooling type?
● Standards compliance : Verify that products meet IEC 60076, IEEE C57, ANSI, or equivalent standards applicable to your region.
● Price transparency : Request detailed quotations to compare voltage regulation transformer price across suppliers, ensuring that the scope of supply (accessories, testing, documentation) is consistent.
● After-sales support : Confirm availability of spare parts, technical support, and commissioning services.
As a China voltage regulation transformer manufacturer with extensive export experience, we provide three phase transformer and single-phase solutions with OLTC, OCTC, and automatic voltage regulation configurations. Our products serve utility, industrial, and commercial applications worldwide. Contact us today to discuss your voltage regulation transformer requirements and receive a competitive quotation.
