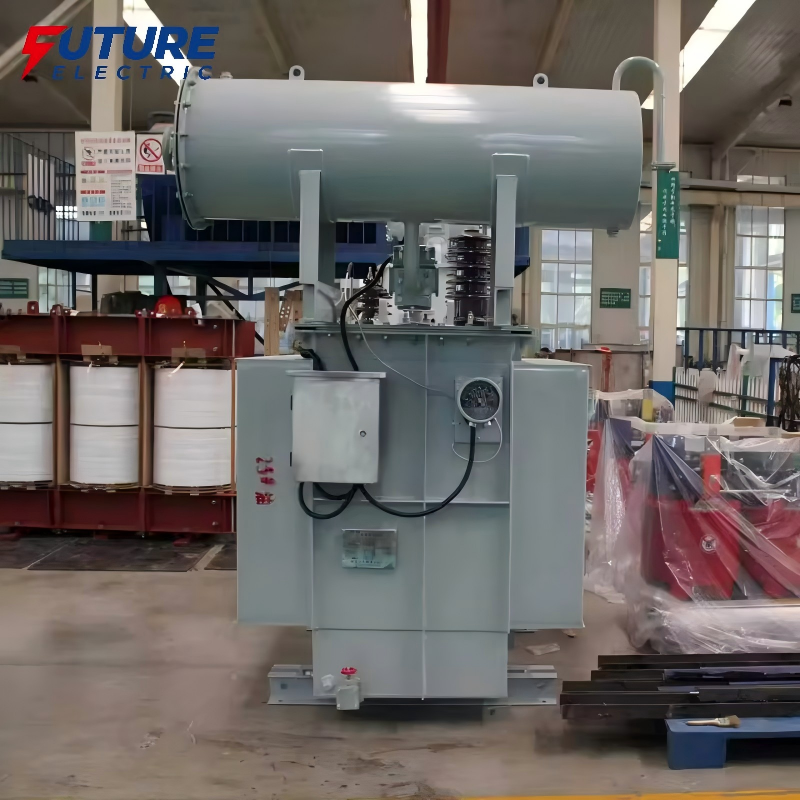

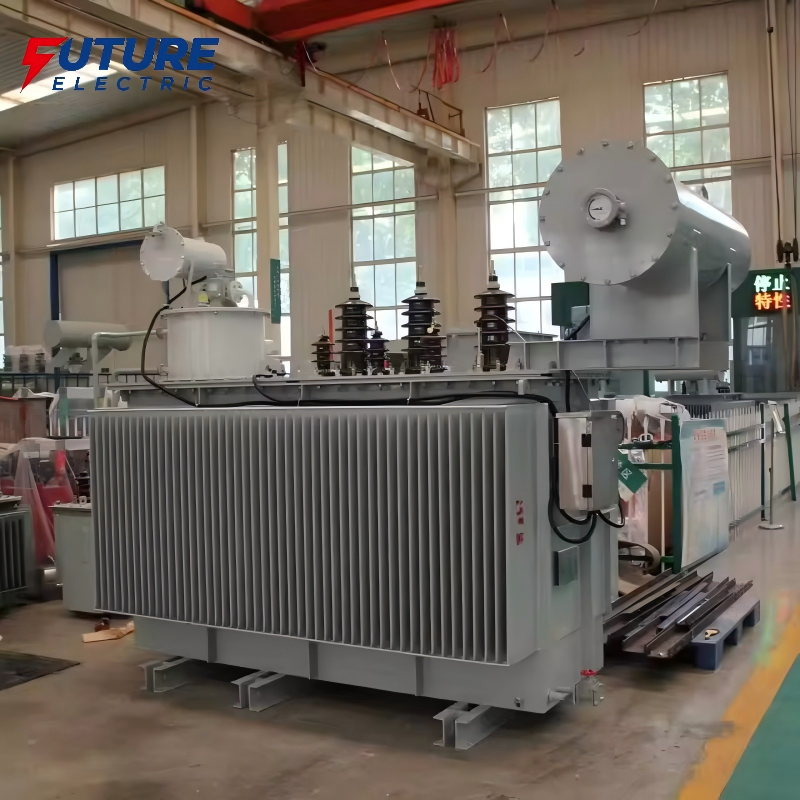

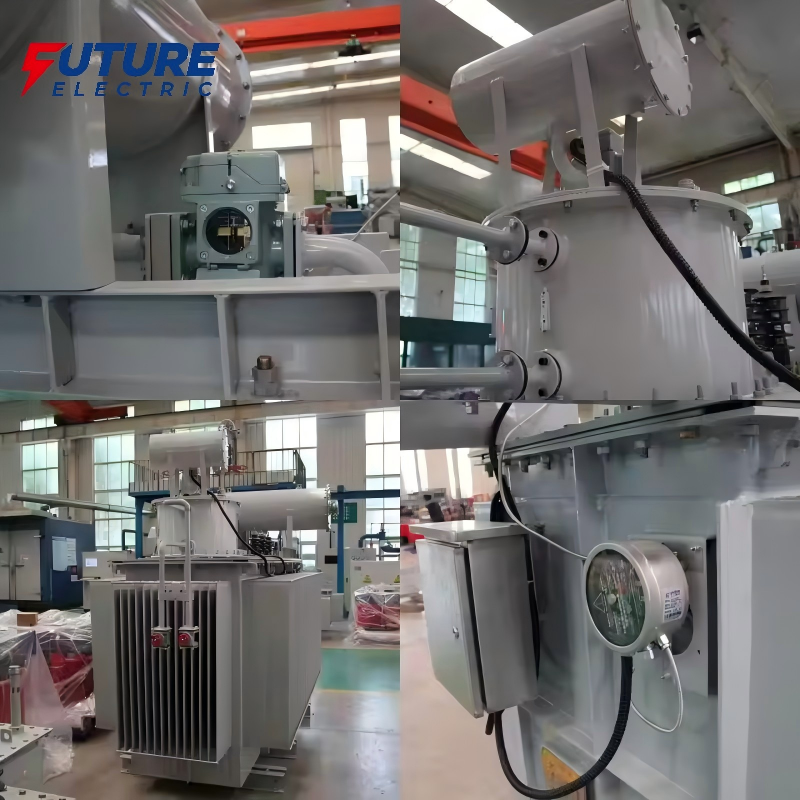

SZ11-35kV Oil Immersed Distribution Transformer

SZ11-35kV Oil Immersed Distribution Transformer

35kV Three-Phase Oil-Immersed On-Load Tap Changing Power Transformer
Type: Oil-immersed Transformer
Number of Phases: Three-phase
Rated Voltage: 35kV/38.5kV
Rated Capacity: 2000kVA - 20000kVA
Service: Higher capacity can be customized

Model:
SZ11-35kV
Brand:
Future Electric


Availability:



Inquire

Product Description

Product Introduction:

The SZ11-35 series 35kV oil-immersed on-load tap-changing transformer adopts high-permeability cold-rolled silicon steel core and fully oblique joint structure to effectively reduce loss. The windings are made of high quality oxygen-free copper wire and the high-voltage winding is of multi-layer cylindrical structure. All fasteners are treated specially to loosen. This product is high efficiency and low loss, greatly save energy and operating costs, the first choice for medium-voltage power distribution scenarios. It is widely used in the world in substations, load centers and new energy power plants.

Normal Environmental Conditions:

1. Ambient Temperature Max. temperature not more than +40℃, min. temperature not lower than -25℃; Monthly average temperature not more than +30℃, annual average temperature not more than +20℃

2. Elevation: Less than 1000 meters

3. Power supply voltage waveform is approximately sinusoidal

4. Power supply voltage of three phase approximately symmetric

5. Total harmonic content of load current shall not be more than 5% of the rated current

6. Place of Installation: Outdoor substation

Model

35kV Oil Immersed Distribution Transformer 35kV Oil Immersed Type Distribution Transformer 35kV Oil Type Transformer 35kV oil filled distribution transformers 35kV oil immersed hermetically sealed type transformer 35kV Oil-Immersed Off-Load Tap Changing Transformer 35kV On-Load Tap Changing Transformer 35kV Oil-Immersed Step-Up Transformer 35kV Oil-Immersed Step-Down Transformer 35kV Indoor Fixed Transformer
