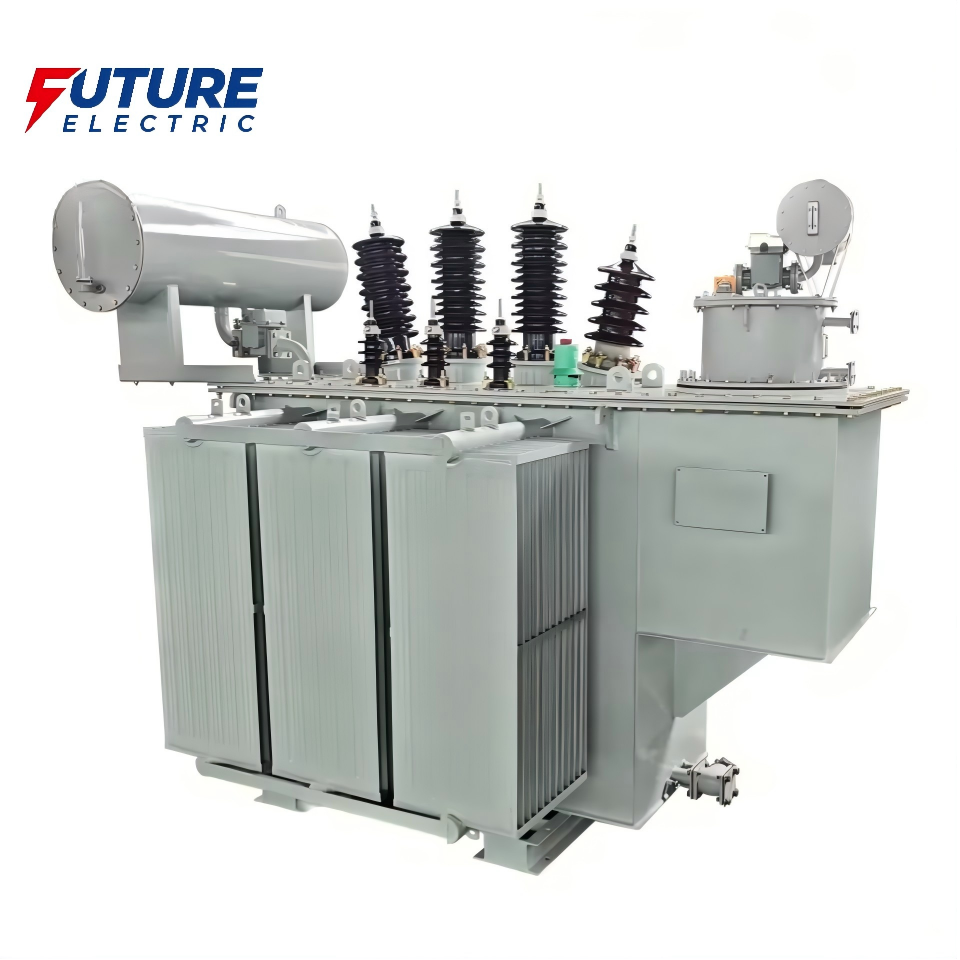

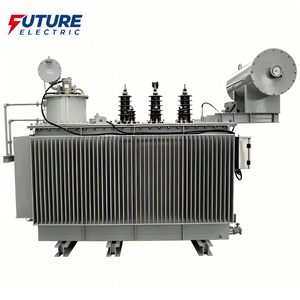

SZ11-35kV Three-phase Oil-immersed Transformer

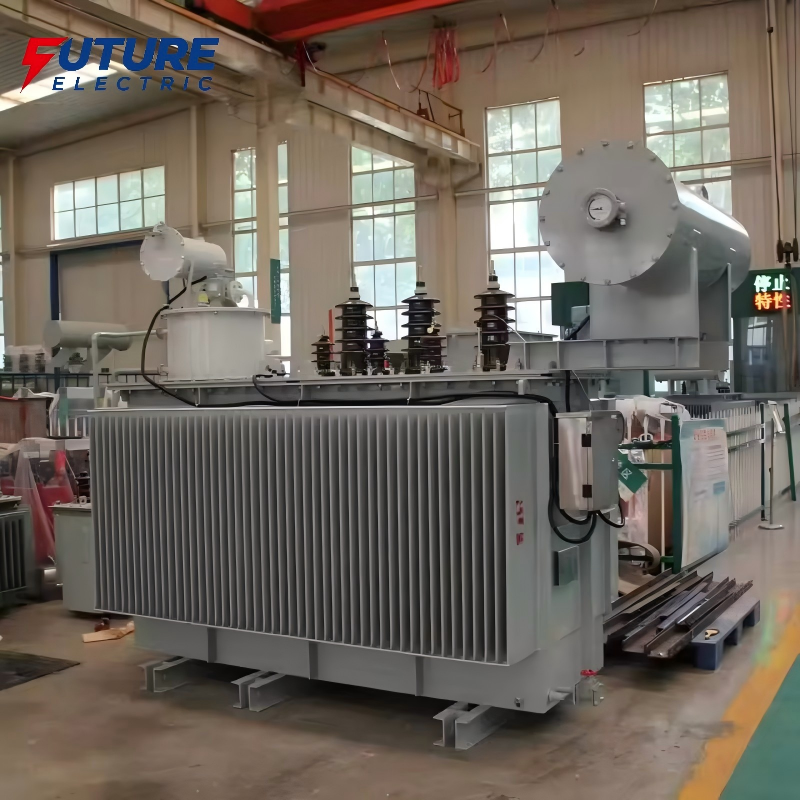

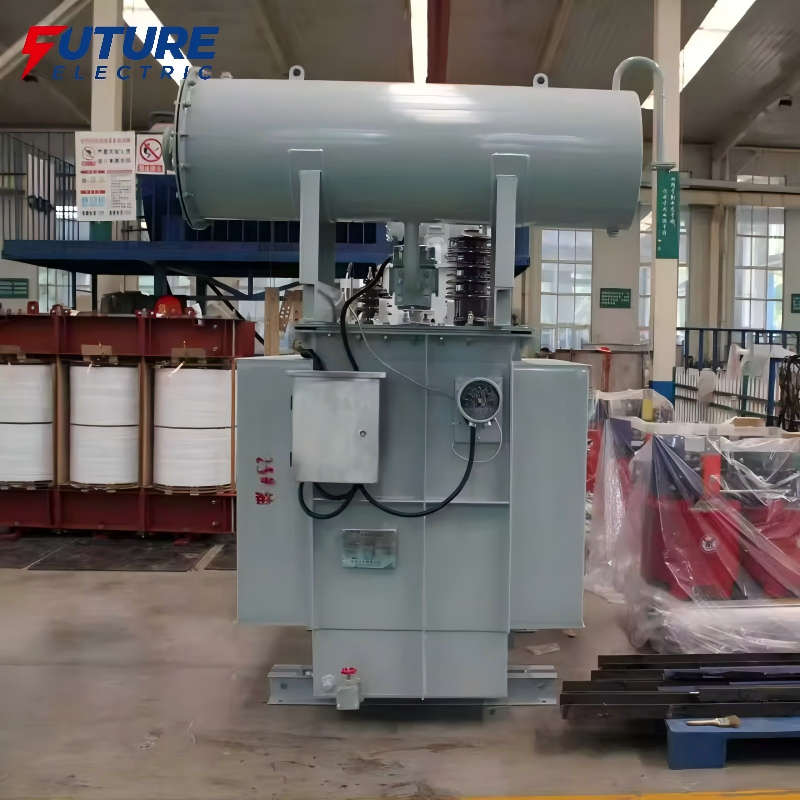

SZ11-35kV Three-phase Oil-immersed Transformer

The SZ11-35 series 35kV oil-immersed on-load tap-changer transformer is a high-efficiency, energy-saving type, specially designed for medium-voltage power distribution systems. It adopts on-load tap-changing technology , which can change voltage under load without power outages , and can perfectly solve the problem of grid voltage fluctuation . Its no-load loss is more than 15% lower than the traditional off-load tap-changing transformer. It has excellent energy-saving effect, which fully meets the demands of the global medium-voltage power distribution market.

Model:
SZ11-35kV
Brand:
Future Electric


Availability:



Inquire

Product Description

Product Features:

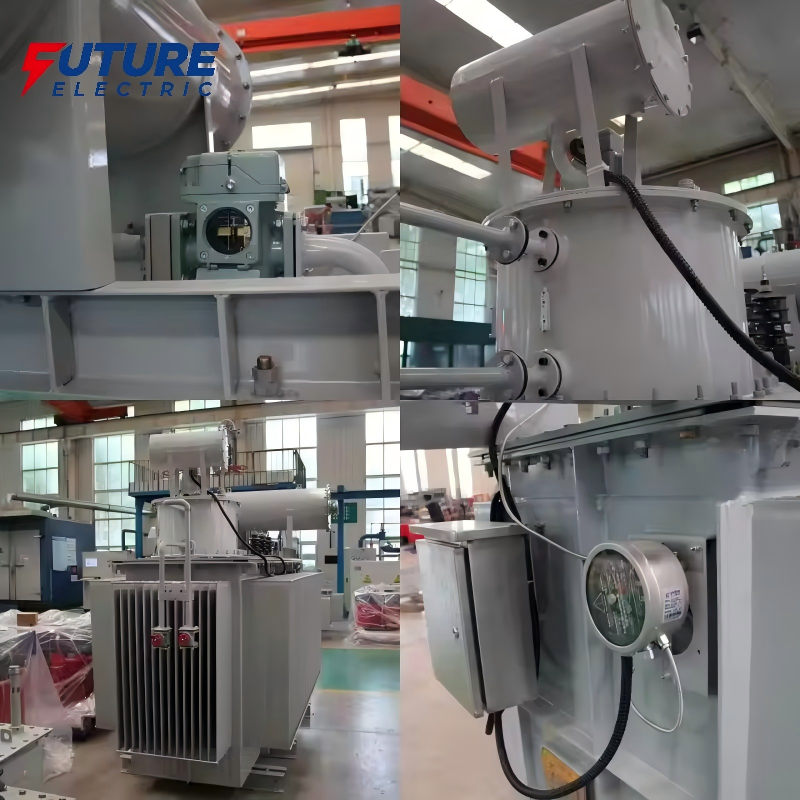

1. The transformer uses on-load tap-changing technology, which can adjust voltage under load without power outage, perfectly solving the problem of grid voltage fluctuation, and ensuring stable power supply.

2. The transformer core is made of high-permeability cold-rolled silicon steel sheets with a fully oblique joint structure, leading to extremely low magnetic reluctance. This drastically reduces no-load loss, no-load current and noise, resulting in energy savings far greater than traditional models.

3. The transformer is designed with optimised and compact structure, and short-circuit withstand capability is far beyond the industry standard. It can withstand short circuit currents of very high magnitude and very high reliability in service.

4. Fully sealed oil-immersed design, no oil leakage problem at all, good moisture-proof and dust-proof performance, applicable to various harsh environments, such as tropical and desert areas.

Technical Parameters

Model	Rated Capacity KVA	Voltage combination and Tap range			Connection symbol	No-Load Loss KW	LoadLoss KW	Short Circuit impedance %	Noload current %
Model	Rated Capacity KVA	HighVoltage KV	High voltage Tap range%	LowVoltage KV	Connection symbol	No-Load Loss KW	LoadLoss KW	Short Circuit impedance %	Noload current %
SZ11-2000/35	2000	35 38.5	±3×2.5%	6.3 6.6 10.5 11	Yd11	2.3	19.24	6.5	0.8
SZ11-2500/35	2500					2.72	20.64	6.5	0.8
SZ11-3150/35	3150					3.23	24.71	7	0.72
SZ11-4000/35	4000					2.87	29.16	7	0.72
SZ11-5000/35	5000					4.64	34.2	7	0.68
SZ11-6300/35	6300					5.63	36.8	7.5	0.68
SZ11-8000/35	8000				YNd11	7.87	40.6	7.5	0.6
SZ11-10000/35	10000					9.28	48.1	7.5	0.6
SZ11-12000/35	12500					10.94	56.9	8	0.56
SZ11-16000/35	16000					13.17	70.3	8	0.54
SZ11-20000/35	20000					15.57	82.8	8	0.54
