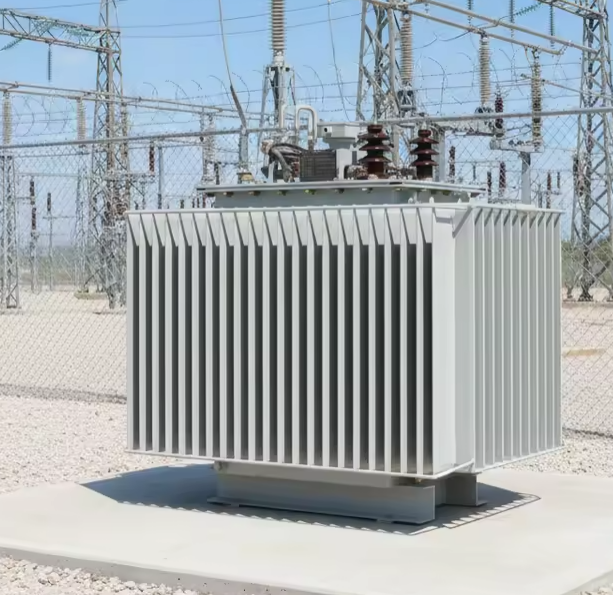

S11-M 20kV Oil-Immersed Transformer

The S11 series 20kV oil-immersed non-excitation voltage regulating power transformer is a kind of high-efficiency and energy-saving model of 20kV medium-voltage power distribution system. Compared with traditional 10kv transformer, the power supply radius is increased by 60%, the power supply capacity is doubled, the transmission loss is reduced by 75%, which is suitable for high load density power distribution market. It uses fully sealed corrugated tank structure and is maintenance-free, fully meeting the needs of the global 20kV power distribution market.

Model:
S11-M 20kV
Brand:
Future Electric


Availability:



Inquire

Product Description

Features of the product:

1. The transformer adopts 20kV voltage level, the power supply radius is bigger, the transmission loss is lower, greatly reduces the grid line loss, and the energy saving effect is remarkable.

2. The transformer core is composed of high permeability cold rolled silicon steel sheets, with fully oblique joint structure, and the magnetic reluctance is extremely low. This significantly reduces no-load losses, no-load current and noise, and achieves far higher energy saving than the traditional model.

3. Optimised and compact transformer structure, short-circuit withstand capability is much higher than industry standard. It is able to withstand very high short-circuit currents, which are very fast, and thus ensure very high operational reliability.

4. The full sealing oil immersion design completely avoids the risk of oil leakage, and has excellent moisture and dust resistance, which can be applied to various harsh environments such as tropical and desert areas.

Technical parameters

Model	Rated Capacity KVA	Voltage combination and Tap range			Connection symbol	NoLoad Loss KW	LoadLoss KW	Short Circuit impedance %	Noload current %
Model	Rated Capacity KVA	HighVoltage KV	High voltage Tap range%	LowVoltage KV	Connection symbol	NoLoad Loss KW	LoadLoss KW	Short Circuit impedance %	Noload current %
S11-M-30/20	30	20	±5% ±2×2.5%	0.4	Dyn11	90	660	5.5	2.1
S11-M-50/20	50					130	960		2
S11-M-63/20	63					150	1145		1.9
S11-M-80/20	80					180	1370		1.8
S11-M-100/20	100					200	1650		1.6
S11-M-125/20	125					240	1980		1.5
S11-M-160/20	160					290	2420		1.4
S11-M-200/20	200					330	2860		1.3
S11-M-250/20	250					400	3350		1.2
S11-M-315/20	315					480	4010		1.1
S11-M-400/20	400					570	4730		1
S11-M-500/20	500					680	5660		1
S11-M-630/20	630					810	6820	6	0.9
S11-M-800/20	800					980	8250		0.8
S11-M-1000/20	1000					1150	11330		0.7
S11-M-1250/20	1250					1350	13200		0.7
S11-M-1600/20	1600					1630	16950		0.6
S11-M-2000/20	2000					1950	19140		0.6
S11-M-2500/20	2500					2340	22220		0.5
