Every time an electric train pulls out of a station or a high-speed locomotive accelerates to 300 km/h, a specialized piece of electrical equipment is working at full capacity beneath the floor or on the roof. That equipment is the traction transformer — the critical link between the high-voltage supply network and the train's drive system.
Unlike conventional power transformers that operate under steady load conditions, a traction transformer must handle extreme and rapidly changing demands. It steps down thousands of volts from overhead power lines, feeds traction motors that draw megawatts of power, and does all of this while withstanding continuous vibration, thermal stress, and severe space limitations. This guide explains what a traction transformer is, how it works, and why it is irreplaceable in modern railway electrification.

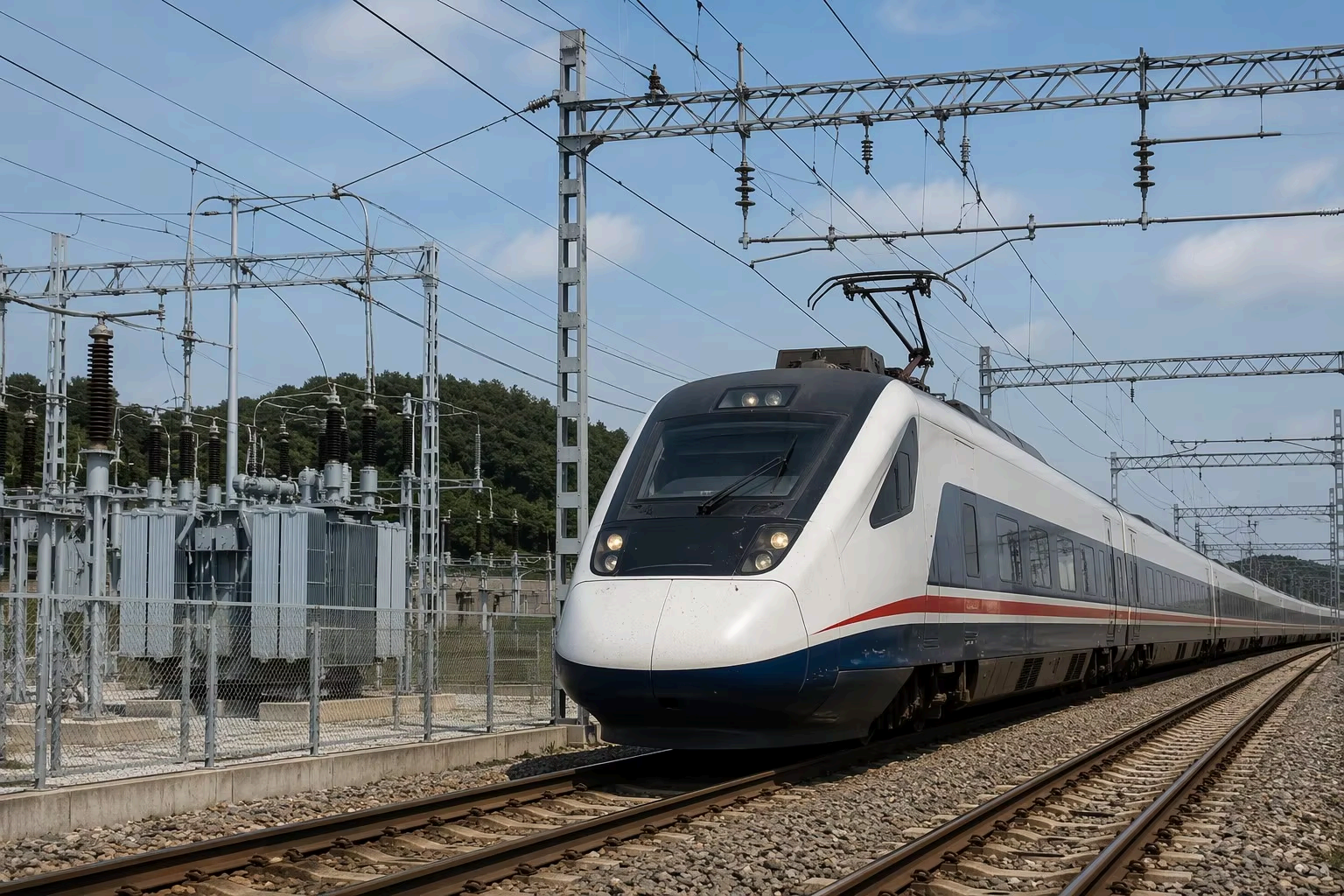

Figure 1: A high-speed electric train running beside a traction power substation — the substation transformers (left) step down grid voltage and feed it through the overhead catenary system to the train's pantograph, where the onboard traction transformer provides the final voltage conversion for the traction motors.
A traction transformer — also referred to as a railway traction transformer or locomotive transformer — is a specialized step-down transformer engineered to convert high-voltage electricity from the railway power supply into lower voltages suitable for train propulsion and auxiliary systems.
In a typical rail application, electricity arrives at 15 kV to 25 kV AC through an overhead catenary system or at 600 V to 3000 V DC via a third rail. This voltage is far too high to feed directly into traction motors or onboard electronics. The traction transformer performs voltage step-down, reducing the supply to levels that the traction system can safely and efficiently use — typically between 600 V and 3000 V for motor drive circuits, and 110 V to 400 V for lighting, HVAC, and control systems.
What sets a traction power transformer apart from standard distribution or power transformers is not its operating principle but the conditions it must survive:
Demand | Standard Power Transformer | Traction Transformer |
Load profile | Steady or slowly changing | Dynamic — spikes from zero to full load in seconds |
Mechanical environment | Static installation | Continuous vibration and shock |
Space/weight | Generous | Extremely constrained — onboard units must fit under the train |
Thermal cycling | Gradual | Rapid — frequent stops and starts |
Like all transformers, a traction transformer operates on the principle of electromagnetic induction. Alternating current flowing through the primary winding creates a changing magnetic flux in the iron core. This flux links with the secondary winding, inducing voltage at a level determined by the turns ratio between the two windings.
The specific workflow in a railway application is:
1. Power collection:The train's pantograph draws high-voltage AC electricity from the overhead power lines(or through contact shoes from a third rail for DC systems).
2. Voltage step-down:The primary winding receives the high-voltage input. Through electromagnetic induction, the secondary winding delivers power at a stepped-down voltage — a process of stepping down voltage to traction-motor-compatible levels.
3. Power distribution:The reduced voltage feeds the train traction system— primarily the traction motors that drive the wheels — plus auxiliary loads such as passenger lighting, air conditioning, and onboard control electronics.
4.Dynamic regulation: Because a train's power demand changes constantly — surging during acceleration, dropping while coasting, reversing during regenerative braking — the transformer must handle variable load demands without voltage instability or overheating.
Feature | Description |
High efficiency / energy efficiency | Minimized core and winding losses ensure that as much input power as possible reaches the traction motors, reducing operating costs and heat generation. |
Compact design / lightweight design | Onboard units achieve remarkable power density — delivering megawatts from a unit that fits within the locomotive's underframe or roof cavity. Every kilogram saved improves acceleration and reduces energy consumption. |
Space efficient | Winding geometry, core shape, and insulation systems are optimized to pack maximum capacity into minimal volume. |
Durability | A robust mechanical structure and rigid structure resist the constant vibration, mechanical shock, and thermal cycling inherent to rail operation. |
Thermal management / heat dissipation | High power density generates substantial heat. Effective transformer cooling — whether by natural airflow, forced air, or oil-based systems — is essential to prevent insulation degradation and ensure reliability. |
Voltage stability | Even under variable load demands, the transformer maintains consistent output voltage, ensuring smooth and predictable train operation. |
Energy efficiency / minimal power losses | Advanced core materials and optimized winding design reduce both no-load and load losses, contributing to lower total energy efficiency targets for the rail operator. |
Reduced power losses | Every percentage point of loss reduction translates into measurable savings in electricity cost and carbon footprint over the transformer's decades-long service life. |
Type | Installation | Key Characteristic | Typical Application |
Onboard traction transformer | Mounted on the locomotive, EMU, or tram | Ultra-compact, lightweight, vibration-resistant; uses OLTC for dynamic voltage regulation | High-speed trains, metro, light rail, trams |
Stationary (substation) traction transformer | Installed at trackside feeder stations | Larger capacity; feeds overhead lines or third rail; may use off-load tap changer | Mainline railways, freight corridors |
Additionally, multi-system traction transformers enable trains that cross international borders to adapt to different electrification standards — for example, switching between 15 kV 16.7 Hz (Central Europe) and 25 kV 50 Hz (France, China, Spain) seamlessly.

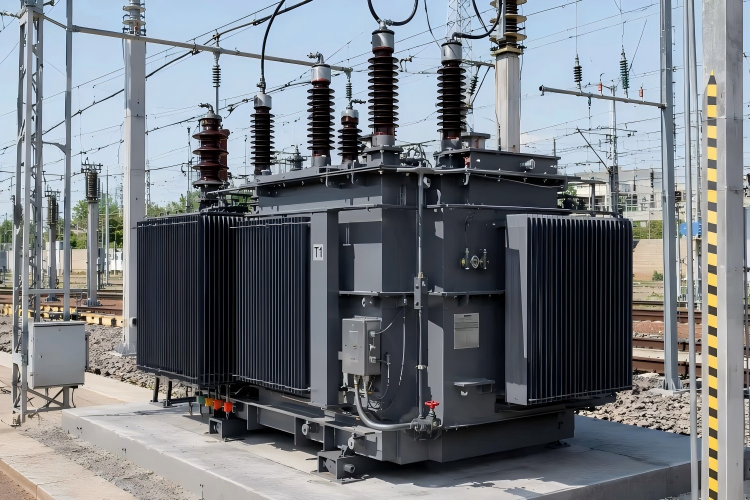

Figure 2: A stationary traction transformer at a railway substation — the transformer steps down high-voltage grid power before it is delivered to the overhead catenary system. Key visible components include the main tank, cooling radiators, ceramic HV bushings, and power cable connections.
The core provides a low-reluctance magnetic path between the primary winding and secondary winding. In traction service, the core must handle rapidly variable load conditions without magnetic saturation. The windings use high-conductivity copper with reinforced insulation rated for elevated temperatures and mechanical stress.
An on-load tap changer (OLTC) is standard on onboard traction transformers. It adjusts the turns ratio while the transformer remains energized and under load — essential because a train cannot stop to adjust voltage mid-journey. Stationary substation units may use off-load tap changers, adjusted during scheduled maintenance.
The cooling system is one of the most critical design elements:
● Natural air cooling:Sufficient for small tram and light-rail units, where train motion provides airflow.
● Forced air cooling: Fans direct air across windings in medium-capacity locomotive transformers.
● Oil natural air forced (ONAF): Oil circulates naturally through radiators; fans boost heat rejection. Common in larger stationary units.
● Oil forced air forced (OFAF): Pumps circulate oil through external heat exchangers with fan-cooled air. Used for high-power substation traction transformers.
Recent advances in materials science are reshaping traction transformer design:
● Nanocrystalline alloys: These advanced magnetic materials achieve significantly lower core losses than conventional grain-oriented silicon steel. In traction applications where every watt of loss translates into heat that must be removed from a confined space, nanocrystalline alloys offer a compelling efficiency advantage.
● Amorphous core: Transformers built with amorphous core materials can reduce no-load losses by up to 70% compared to conventional cores. This is particularly valuable in rail systems where transformers may remain energized for extended periods with low load — such as trains parked at depots or sidings overnight.
These material innovations directly support the rail industry's drive toward higher energy efficiency, lower operating cost, and reduced environmental impact.
Rail Sector | Traction Transformer Requirement |
High-speed rail (intercity) | Onboard AC; multi-megawatt capacity; multi-voltage input for cross-border routes |
Metro and light rail (urban) | Onboard compact dry-type; rated for frequent thermal cycling from repeated stops |
Trams and streetcars | Ultra-compact onboard units; natural or forced air cooling |
Freight locomotives | Heavy-duty onboard or substation; high torque at low speed; robust construction |
Electric buses | Compact onboard; bidirectional for charging compatibility |
A traction transformer is a specialized step-down transformer designed for railway and electric vehicle applications. It converts high-voltage electricity from overhead power lines or third-rail systems into lower voltages required by train traction motors and auxiliary systems, while handling dynamic loading, vibration, and space constraints.
A regular power transformer operates under steady load in a static environment. A traction transformer must handle rapid load changes, continuous vibration and shock, extreme space and weight limitations, and frequent thermal cycling — all while maintaining precise voltage output through an on-load tap changer.
Mounting the transformer onboard — called an onboard traction transformer — allows the train to convert high-voltage line power directly at the point of use. This eliminates the need for multiple intermediate substations along the route and gives each train independent control over its power supply.
Cooling methods range from natural air cooling (trams) to forced air cooling (medium locomotives) to oil-based systems like ONAF and OFAF (large stationary units). The cooling system must remain reliable under vibration and shock.
Modern traction transformers increasingly use nanocrystalline alloys and amorphous core materials to reduce core losses. These advanced magnetic materials offer significantly higher efficiency than conventional silicon steel, contributing to reduced power losses and lower operating temperatures.
Traction transformers power electric trains, electric locomotives, metro systems, light rail, trams, and increasingly electric buses. They are used in both passenger and freight rail applications worldwide.
The traction transformer is far more than a component — it is the electrical heart of every modern electric train. By performing reliable voltage step-down under the most demanding conditions, it enables the high-speed, energy-efficient rail transport that cities and nations depend on.
For railway operators and rolling stock manufacturers, selecting the right traction transformer means balancing high efficiency, compact design, durability, and effective thermal management — all within the severe space and weight constraints of onboard installation. Advances in nanocrystalline alloys, amorphous core technology, and smart cooling systems are pushing these boundaries further, promising lighter and more efficient transformers for the next generation of rail transport.
