S11-M 20kV Oil Immersed Power Transformer

S11-M 20kV Oil Immersed Power Transformer

S11 series 20kV oil-immersed non-excitation voltage regulating power transformer is a high-efficiency, energy-saving model specially designed for the global 20kV power distribution market. Compared with conventional 10kV transformers, it increases the power supply radius by 60%, doubles the power supply capacity and reduces transmission losses by 75%, perfectly adapting to the needs of high load density power distribution. It adopts the fully sealed corrugated tank structure , maintenance-free , fully adapts to the 20kV power distribution needs of different regions around the world .

Model:
S11-M 20kV
Brand:
Future Electric


Availability:



Inquire

Product Description

Technical Parameter

Model	Rated Capacity KVA	Voltage combination and Tap range			Connection symbol	NoLoad Loss W	LoadLoss W	Short Circuit impedance %	Noload current %
Model	Rated Capacity KVA	HighVoltage KV	High voltage Tap range%	LowVoltage KV	Connection symbol	NoLoad Loss W	LoadLoss W	Short Circuit impedance %	Noload current %
S11-M-30/20	30	20	±5% ±2×2.5%	0.4	Dyn11	90	660	5.5	2.1
S11-M-50/20	50					130	960		2
S11-M-63/20	63					150	1145		1.9
S11-M-80/20	80					180	1370		1.8
S11-M-100/20	100					200	1650		1.6
S11-M-125/20	125					240	1980		1.5
S11-M-160/20	160					290	2420		1.4
S11-M-200/20	200					330	2860		1.3
S11-M-250/20	250					400	3350		1.2
S11-M-315/20	315					480	4010		1.1
S11-M-400/20	400					570	4730		1
S11-M-500/20	500					680	5660		1
S11-M-630/20	630					810	6820	6	0.9
S11-M-800/20	800					980	8250		0.8
S11-M-1000/20	1000					1150	11330		0.7
S11-M-1250/20	1250					1350	13200		0.7
S11-M-1600/20	1600					1630	16950		0.6
S11-M-2000/20	2000					1950	19140		0.6
S11-M-2500/20	2500					2340	22220		0.5

Use Cases

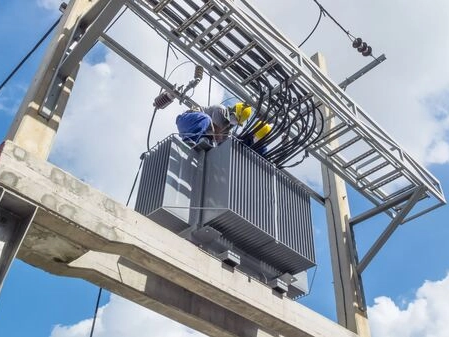

1.Southeast Asia 20kV Power Grid Upgrade

Upgrade 20kV power grids in the Philippines, Vietnam and other regions to replace traditional 10kV grids and enhance the power supply capacity.

Features: large power supply radius, small line loss, rapid increase of power grid capacity.

2.Power Distribution in High Load Area of Africa

High load density areas of Africa and South America have fast load growth and high power supply capacity needs.

Features: High load capacity, low loss, low long term operating cost

3.Large industrial parks:

Main power distribution in large industrial parks with large loads and high requirements of power supply reliability.

Features: Good short-circuit withstand ability, high reliability and guaranteed continuous power supply.

4.Grid Connection of New Energy Power Plants

Grid-connected transformers for photovoltaic, wind power and other new energy power plants, 20kV grid connection voltage.

Features:Low loss, high reliability, guaranteed grid connection quality.
