The global power transformer market was valued at over USD 48 billion in 2024 and continues to grow as industries expand, renewable energy integrates into the grid, and aging infrastructure demands replacement. At the center of this vast electrical ecosystem sits a device so fundamental that every power plant, factory, data center, and home depends on it: the AC transformer.
Whether you are an electrical engineer specifying equipment for a new substation, a procurement manager sourcing transformer wholesale from a reliable transformer OEM, or a facility operator troubleshooting voltage instability, understanding the AC power transformer — and particularly its tap changer — is essential to making informed decisions.
This article covers what an AC transformer is, how it works, the key types available on the market, and a deep dive into transformer tap changers, cooling methods, and practical selection criteria.
An AC power transformer (also called an AC transformer or alternating current transformer) is a static electrical transformer that transfers electrical energy between two or more circuits through electromagnetic induction. Its primary function is to change voltage levels — stepping voltage up for efficient long-distance transmission or stepping it down for safe end-user consumption.
Unlike motors or generators, an AC power transformer has no moving parts. It consists of a magnetic core and two or more windings. When alternating current flows through the primary winding, it creates a varying magnetic flux in the core, which induces a voltage in the secondary winding. The relationship between input and output voltage is governed by the turns ratio:
Vs/Vp = Ns/Np.
Transformers are the backbone of modern AC power grids. Without them, transmitting electricity from a power plant to a city 500 kilometers away would be economically impossible — line losses would consume most of the generated power. With transformers, transmission voltages can reach 765 kV, enabling efficient bulk power transfer, and then be stepped down through multiple stages to the 120 V or 230 V that reaches your wall outlet.
The operating principle of an AC transformer rests on Faraday's law of electromagnetic induction. When AC voltage is applied to the primary winding, it generates an alternating magnetic flux (Φ) in the laminated steel core. This changing flux links with the secondary winding and induces a voltage proportional to the number of turns.
The turns ratio determines the transformation type:
Transformation Type | Primary Turns vs Secondary Turns | Voltage Change | Typical Application |
Step-up transformer | Secondary > Primary | Output voltage is higher | Generator step-up (22 kV → 765 kV) |
Step-down transformer | Primary > Secondary | Output voltage is lower | Distribution (7.2 kV → 240/120 V) |
A step-up transformer increases voltage for transmission, reducing current and minimizing I²R losses. A step-down transformer reduces voltage for safe consumption at residential, commercial, and industrial levels.
It is important to note that transformers only work with AC — a DC supply creates a static magnetic field that induces zero voltage in the secondary winding.
The choice of transformer type depends on voltage level, power rating, installation environment, and cooling requirements. Below is a comparison of the most widely used AC transformer types in industrial and utility applications.
Type | Voltage Range | Typical kVA Rating | Cooling | Installation |
Dry-type transformer | Up to 35 kV | 10–10,000 kVA | Air natural/forced (AN/AF) | Indoor, safety-critical areas |
Oil-immersed transformer (oil-filled) | Up to 765 kV | 50–1,000,000+ kVA | Mineral oil + radiator | Outdoor, utility, industrial |
Pad-mount transformer | 5–35 kV | 25–5,000 kVA | Oil-filled, compartmentalized | Outdoor ground-level, residential/commercial |
Three-phase transformer | All ranges | 15–1,000,000+ kVA | Depends on subtype | Industrial, utility, commercial |
Single-phase transformer | Up to 35 kV | 5–500 kVA | Depends on subtype | Residential, light commercial |
Dry-type transformers use air as the cooling and insulating medium. They are fire-resistant, environmentally safer, and ideal for indoor installations such as hospitals, commercial buildings, and data centers. Because they contain no oil, there is no risk of leaks or soil contamination. However, they are typically limited to medium-voltage applications (up to 35 kV) and have higher material costs per kVA.
Oil-immersed transformers (also known as oil-filled transformers) use mineral oil or synthetic ester fluid for both insulation and cooling. The oil dissipates heat through radiator fins or forced circulation, allowing these units to handle much higher power ratings. They are the standard choice for utility substations, power plants, and heavy industrial facilities. Regular oil sampling and maintenance are required to ensure dielectric integrity.
A pad-mount transformer is a locked, ground-level, oil-filled unit commonly seen in residential subdivisions and commercial complexes. It steps down medium voltage (typically 7.2 kV or 13.8 kV) to utilization voltage (240/120 V or 480/277 V). Its tamper-resistant enclosure makes it safe for public-access areas.
A three-phase transformer handles three-phase AC power in a single unit with a common core — more compact and efficient than three separate single-phase units. It is the standard for industrial and commercial power distribution.
A single-phase transformer serves residential and light commercial loads, typically stepping down a single phase of a distribution feeder to household voltage.
Understanding the main components helps in evaluating transformer quality, identifying failure risks, and specifying correctly for your application.
Component | Function | Materials |
Core | Provides low-reluctance magnetic path | Grain-oriented silicon steel laminations (0.27–0.35 mm), amorphous metal |
Primary winding | Receives input AC voltage; creates magnetic flux | Copper or aluminum conductor, insulated |
Secondary winding | Delivers induced output voltage to load | Copper or aluminum conductor, insulated |
Insulation system | Separates turns, windings, and core electrically | Mineral oil, synthetic ester, Nomex, epoxy resin |
Tap changer | Adjusts turns ratio to regulate output voltage | Mechanical selector (DETC) or motor-driven diverter (OLTC) |
Bushings | Insulated terminals for HV and LV lead exit | Porcelain or polymer, rated to system BIL |
Cooling system | Dissipates heat from core and windings | Radiator fins, fans, oil pumps |
Conservator (oil-filled only) | Accommodates oil expansion; isolates oil from air | Steel tank with breather |
Buchholz relay (oil-filled only) | Detects internal faults by gas accumulation | Mechanical relay in pipe between tank and conservator |

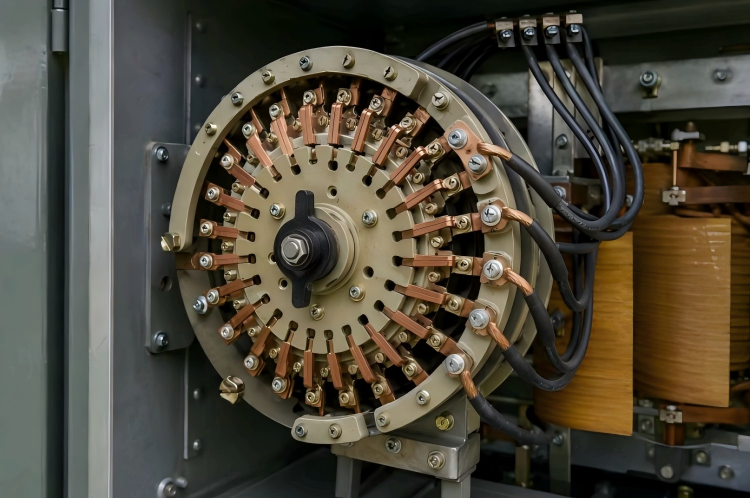

Among these, the transformer tap changer deserves special attention because it directly affects voltage regulation — one of the most common operational challenges in power systems.
Utility supply voltage is rarely exactly what the nameplate specifies. Feeder length, seasonal load variation, and grid conditions can push the actual primary voltage several percent above or below nominal. A transformer tap changer compensates for this by adjusting the effective turns ratio, bringing the secondary voltage back within tolerance.
Taps are connection points along a winding — typically the primary (HV) winding — that allow the number of active turns to be increased or decreased in fixed increments. A tap that reduces primary turns raises secondary voltage; a tap that increases primary turns lowers secondary voltage. This inverse relationship is the most common source of confusion during commissioning.
There are two fundamentally different approaches to tap changing:
Feature | On-Load Tap Changer (OLTC) | Off-Load Tap Changer (DETC) |
Operation | Switches taps while energized and under load | Requires full de-energization |
Mechanism | Motor-driven diverter switch + tap selector with transition resistors | Manual rotary selector or jumper lead |
Tap increments | Typically ±10% in 1.25% steps | Typically ±2.5% or ±5% in 2–5 positions |
Response speed | Instantaneous, real-time | Scheduled during planned outages |
Maintenance | Higher — moving parts, arc contacts, oil filtration | Minimal — mechanical only |
Cost | Significant — complex mechanism | Low — simple selector |
Typical use | Utility transmission, large substation transformers | Distribution transformers, dry-type, pad-mount |
Common configurations | Motor drive, remote control capable | 5-position or 7-position with FCAN/FCBN taps |
On-load tap changers (OLTC) are essential for utility and transmission transformers where voltage must be regulated dynamically without interrupting service. They use a diverter switch with transition resistors or reactors to bridge two tap positions momentarily during the change, preventing arc damage and load interruption. Major OLTC manufacturers include MR (Maschinenfabrik Reinhausen) and Hitachi Energy.
Off-load tap changers (also called de-energized tap changers, DETC, or NLTC) are standard on distribution transformers, dry-type units, and most industrial power transformers. They are simple, reliable, and low-cost. The trade-off is obvious: you cannot adjust the tap while the transformer is in service.
Tap selection is a measurement-driven process, not guesswork:
1. Measure the actual secondary voltage under representative load (not at no-load)
2. Compare to the nominal voltage required by connected equipment
3. Calculate the percentage deviation
4. Select the tap that compensates — remembering that reducing primary turns raises secondary voltage
Example: A 480 V three-phase secondary measures 467 V under typical load (approximately 2.7% low). With ±2.5% taps, moving to the -2.5% tap position reduces primary turns by 2.5%, raising secondary voltage to approximately 479 V — well within tolerance.
Changing taps without measurement: The most frequent error. Always confirm the secondary voltage is truly off-nominal before adjusting.
Failing to de-energize before a DETC change: Off-load tap changers are not rated to break load current. Lockout/tagout is mandatory.
Mismatching taps on paralleled transformers: Circulating currents develop immediately if only one unit's tap is changed.
Using taps to fix transient problems: Taps correct steady-state voltage offsets, not sags, swells, or harmonic distortion.
Cooling is critical to transformer longevity. IEEE C57.91 establishes that every 6-8°C increase in winding temperature above rating roughly halves insulation life. The cooling designation tells you exactly how heat is managed.
Cooling Designation | Full Name | How It Works | Typical Rating Range |
ONAN | Oil Natural Air Natural | Oil circulates by natural convection; heat dissipates through radiator fins to ambient air. No pumps, no fans. | Up to 30 MVA |
ONAF | Oil Natural Air Forced | Oil circulates naturally; fans blow air across radiators for increased heat dissipation. | 20–100 MVA |
OFAF | Oil Forced Air Forced | Pumps force oil through windings and radiators; fans force air across radiators. Maximum cooling. | 60–500+ MVA |
ONAN is the simplest and most common cooling method for distribution transformers. It is silent, requires no auxiliary power, and has minimal maintenance. ONAF adds forced-air cooling for medium and large power transformers, extending the rating by 25-33% over ONAN. OFAF is reserved for the largest units — generator step-up transformers and grid inter-tie transformers — where heat density demands active oil circulation.
For dry-type transformers, the equivalent designations are AN (Air Natural) and AF (Air Forced).
Selecting the correct AC transformer involves balancing technical requirements, environmental constraints, and lifecycle cost. Use the following checklist:
1. Determine kVA rating: Sum the connected load, apply a demand factor, and add 15-25% margin for future growth. A kVA rating that is too small causes overheating; one that is too large wastes capital and operates at reduced efficiency.
2. Define voltage ratio: Specify primary (input) and secondary (output) voltages. Common ratios include 13.8 kV/480 V, 7.2kV/240 V, and 35 kV/400 V.
3. Choose type: Indoor installation or fire-sensitive area → dry-type transformer. Outdoor utility or heavy industrial → oil immersed transformer. Residential subdivision → pad-mount transformer.
4. Select cooling method: Under ~2.5 MVA → ONAN is usually sufficient. Above ~30 MVA → consider ONAF or OFAF.
5. Specify tap changer: If voltage is stable and adjustments are rare → DETC. If real-time regulation is required → OLTC.
6. Verify standards compliance: Ensure the unit meets IEEE C57.12, IEC 60076, or applicable local standards.
7. Evaluate no-load current: A lower no-load current indicates better core material quality and lower standing losses. For a modern 500 kVA distribution transformer, no-load current should be below 1.5% of rated current.
8. Consider total cost of ownership: Purchase price is only part of the equation. Factor in efficiency at expected load (40-70%is the sweet spot), maintenance intervals, and expected service life (30-40 years for oil-filled units).
AC power transformers serve virtually every sector of the modern economy:
Industry | Typical Transformer Type | Key Requirements |
Electric utilities | Oil-immersed, OLTC-equipped | High reliability, 30+ year life |
Renewable energy (solar/wind) | Step-up transformer (690 V → 35 kV) | Handle variable generation, harmonic tolerance |
Data centers | Dry-type, indoor | Fire safety, low noise, high efficiency |
Heavy industry (steel, mining) | Oil-immersed, OFAF/ONAF | High overload capacity, arc-furnace duty |
Commercial buildings | Dry-type or pad-mount | Compact, low maintenance |
EV charging infrastructure | Pad-mount, oil-filled | 1-2 MVA, high cycling duty |
Rail traction | Specialty oil-immersed | 25 kV catenary input, compact design |
Frequently Asked Questions (FAQ)
Q1: What is the difference between a step-up and step-down transformer?
A step-up transformer has more turns on the secondary winding than the primary, producing a higher output voltage. It is used at power plants to raise generator voltage (e.g., 22 kV to 765 kV) for efficient transmission. A step-down transformer has fewer secondary turns, reducing voltage for distribution and end use. The same physical unit can operate in either direction — the designation describes its typical application, not an inherent limitation.
2: Why does my transformer hum, and is it a problem?
The hum is magnetostriction — the core laminations physically expand and contract with the alternating magnetic flux at twice line frequency (120 Hz on 60 Hz systems). Some hum is normal. If the noise increases suddenly or becomes noticeably louder after a voltage adjustment, the core may be approaching saturation. Measure the primary no-load current — if it has more than doubled from nameplate, you are saturating and should adjust the tap or reduce primary voltage.
Q3: How long does a distribution transformer last?
A properly maintained oil-immersed transformer typically lasts 30-40 years. Dry-type transformers have a similar expected lifespan when operated within rated temperature limits. The primary aging mechanism is thermal degradation of insulation — every sustained 6-8°C rise above rated temperature halves the remaining insulation life per IEEE C57.91.
Q4: Can I operate a 60 Hz transformer on a 50 Hz supply?
Only if you derate the primary voltage proportionally. Core flux density is proportional to V/f. Switching from 60 Hz to 50 Hz at the same voltage increases flux by 20%, pushing most designs into saturation. Reduce the voltage to 50/60 (about 83%) of the nameplate rating. The kVA capacity drops by the same ratio. Operating a 50 Hz transformer on 60 Hz is generally safe at full voltage.
Q5: What is voltage regulation and why does it matter?
Voltage regulation is the change in secondary voltage from no-load to full-load, expressed as a percentage of full-load voltage. A lower regulation value means the transformer maintains a more stable output under varying load. Typical distribution transformers have 2-5% regulation. Poor regulation causes equipment to receive voltage below specification, leading to reduced motor torque, dimmed lighting, and increased current draw.
Q6: How do I source transformers from a reliable manufacturer?
When evaluating a transformer OEM or sourcing transformer wholesale, look for: ISO 9001 certification, compliance with IEEE/IEC standards, factory test reports (routine, type, and special tests), reference projects in your industry, and after-sales support. A reputable manufacturer will provide full nameplate data, test certificates, and technical documentation before shipment.
Conclusion
The AC power transformer is one of the most reliable and long-lived assets in any electrical infrastructure. From the three-phase transformer in a utility substation to the single-phase transformer on a residential pole, from ONAN-cooled distribution units to OFAF-cooled generator step-up giants, the technology is mature but continues to evolve with better materials, smart monitoring, and higher efficiency standards.
Understanding the key types — dry-type, oil-immersed, and pad-mount — as well as the critical role of the transformer tap changer in voltage regulation (whether on-load tap changer (OLTC) for dynamic control or off-load tap changer for scheduled adjustments) empowers you to specify, operate, and maintain transformers with confidence.
When you are ready to source quality AC power transformers, partner with a manufacturer that combines technical expertise with reliable delivery.
