Description of the Product

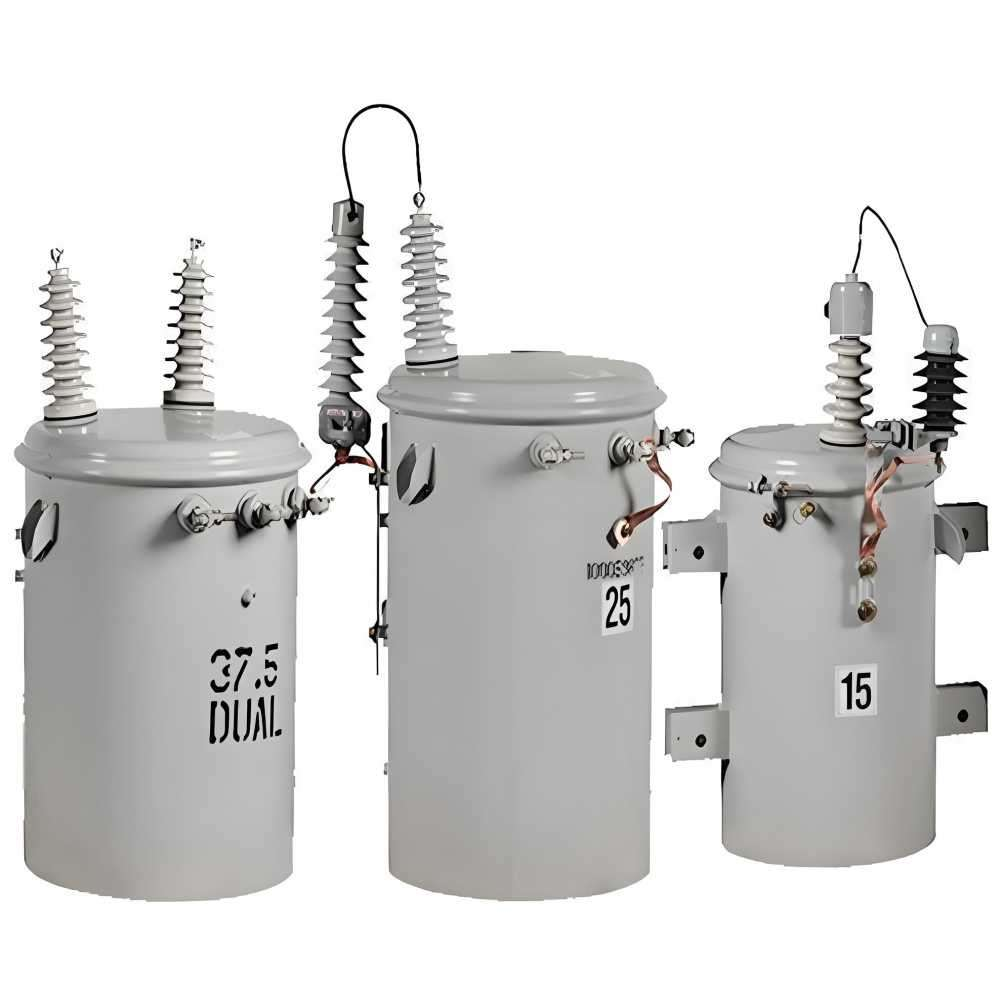

The D11-M.R series single-phase oil-immersed transformer uses R-type wound core technology to form a seamless core, reducing magnetic resistance and losses. Annealing treatment improves mechanical properties, reduces noise and temperature rise. The windings are made of high-quality oxygen-free copper wire, and the high-voltage winding is multi-layer cylindrical. All fasteners are treated with special anti-loosening. This product has the characteristics of high efficiency, low loss, and can save a lot of energy and operating costs, is the preferred product of small-scale power distribution. It has been widely applied in the rural power grid, remote area and pole mounted distribution system all over the world.

Normal Environment

1. Ambient temperature: Maximum temperature not higher than +40℃, minimum temperature not lower than -25℃; monthly average temperature not higher than +30℃; annual average temperature not higher than +20℃

2. Altitude: Equal or less than 1000 meters

3. Power supply voltage waveform approx. sinusoidal

4. Power supply voltage mostly symmetrical

5. Total harmonic content of load current shall not be more than 5% of rated current

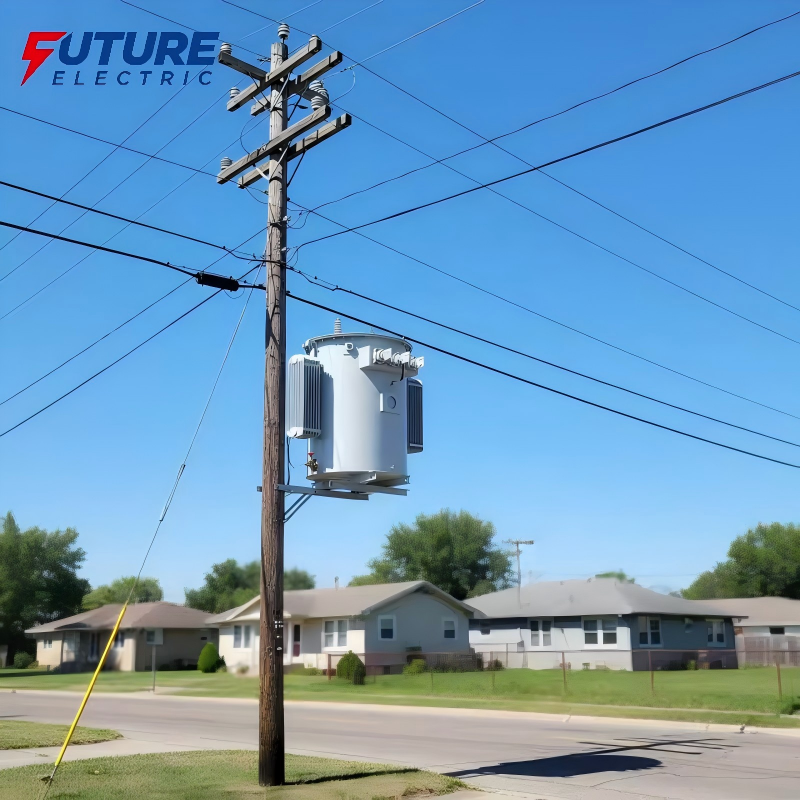

6. Installing Location: Outdoor pole mounted/platform
