What is a Three Phase Transformer and How Does It Work?

Views: 4213     Author: Site Editor     Publish Time: 2023-07-13      Origin: Site

Inquire

wechat sharing button
facebook sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

Introduction

In the realm of modern electrical engineering and Industrial Power Distribution, the Three-Phase Transformer stands as a cornerstone technology. Unlike single-phase systems, Three Phase Power Systems provide a more efficient and balanced way to transmit and distribute electricity across vast distances and within heavy-duty industrial environments. From the massive grids that power our cities to the specialized three-phase pad-mounted transformers found in residential neighborhoods and commercial complexes, these devices are essential for managing voltage levels safely and effectively.

A three-phase transformer is essentially a device that transfers electrical energy between circuits through Electromagnetic Induction. Whether it is a Step-up Transformer used at power plants to increase voltage for long-distance transmission or a Step-down Transformer used in local substations to bring voltage down to usable levels for machinery, the underlying principles remain the same. This guide delves deep into the mechanics, configurations, and applications of these vital components in today's energy infrastructure.

How It Works: The Science of Power Conversion

The operation of a three-phase transformer is governed by Faraday’s Law of Electromagnetic Induction. At its core, the device consists of three sets of Primary & Secondary Windings wrapped around a common core.

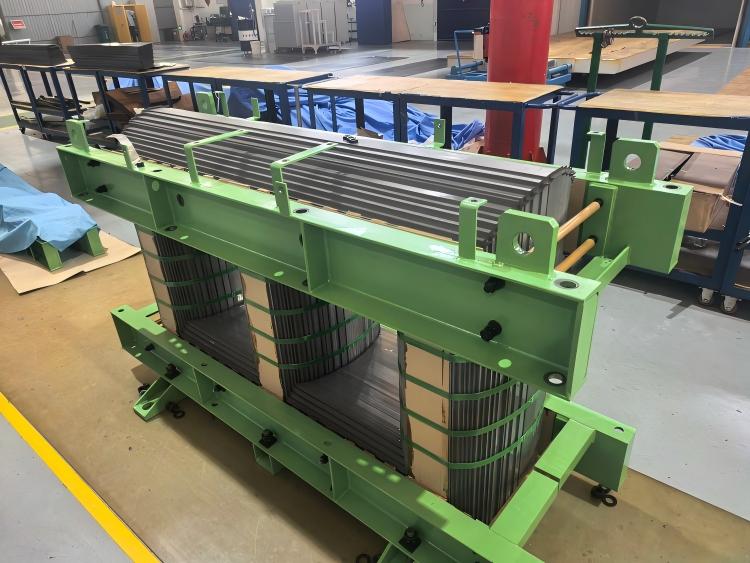

The Laminated Silicon Steel Core

The heart of the transformer is the Laminated Silicon Steel Core. This core provides a low-reluctance path for the magnetic flux. By using laminated sheets rather than a solid block of steel, engineers significantly reduce eddy current losses, which would otherwise lead to overheating and inefficiency. The high-quality silicon steel ensures that the magnetic field generated by the primary windings is efficiently coupled to the secondary windings.

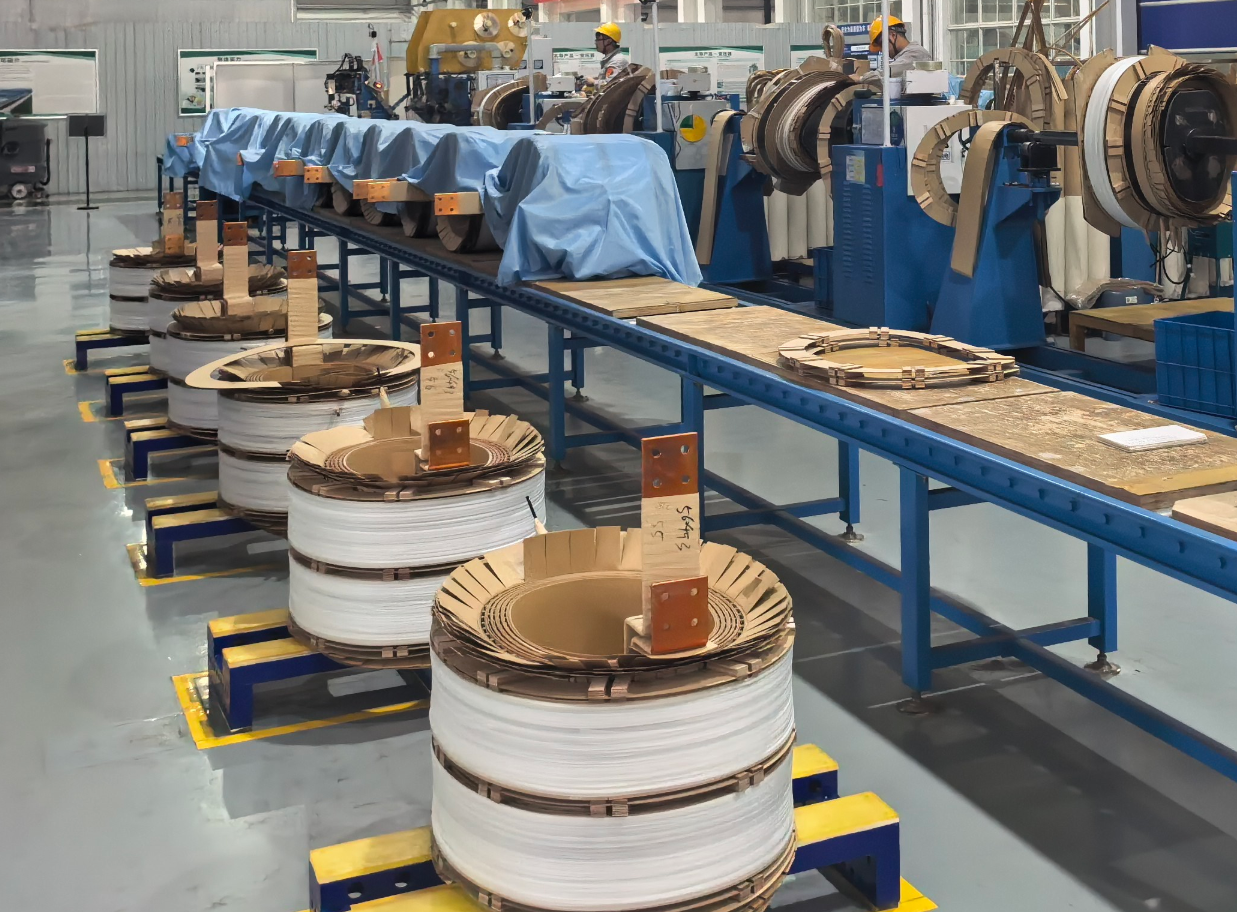

Primary and Secondary Windings

Each phase of the transformer has its own set of windings. The Primary Windings receive the input voltage, creating a varying magnetic flux in the core. This flux then induces a voltage in the Secondary Windings. The Voltage Conversion Ratio is determined by the number of turns in the primary versus the secondary windings.

• If the secondary has more turns, it is a Step-up Transformer.

• If the secondary has fewer turns, it is a Step-down Transformer.

dry type transformers.png



Delta vs. Wye Configurations

One of the most critical aspects of three-phase systems is how the windings are connected. The two primary configurations are Delta (Δ) and Wye (Y) (also known as Star).

Delta Configuration

In a Delta connection, the three windings are connected end-to-end to form a closed loop. This configuration is often used in industrial settings where high reliability is required, as it can continue to operate (at reduced capacity) even if one phase is lost. It is commonly used for transmission and high-power motors.

Wye Configuration

In a Wye connection, one end of each winding is connected to a common neutral point. This allows for two different voltages (line-to-line and line-to-neutral), making it ideal for mixed loads (e.g., both three-phase motors and single-phase lighting).

Detailed Comparison Table

Feature

Delta (Δ) Connection

Wye (Y) / Star Connection

Neutral Point

No neutral point available.

Has a common neutral point.

Voltage Levels

Line Voltage = Phase Voltage.

Line Voltage = √3 × Phase Voltage.

Current Levels

Line Current = √3 × Phase Current.

Line Current = Phase Current.

Applications

High power, industrial motors, transmission.

Distribution, residential, mixed loads.

Vector Group

Often used in Dyn11 (Delta primary).

Common in distribution secondary.

The Vector Group (Dyn11) is a common standard in distribution transformers, where the primary is Delta-connected and the secondary is Wye-connected with a neutral point, shifted by 30 degrees. This specific configuration is highly effective at suppressing third-harmonic currents, which can interfere with sensitive electronic equipment.

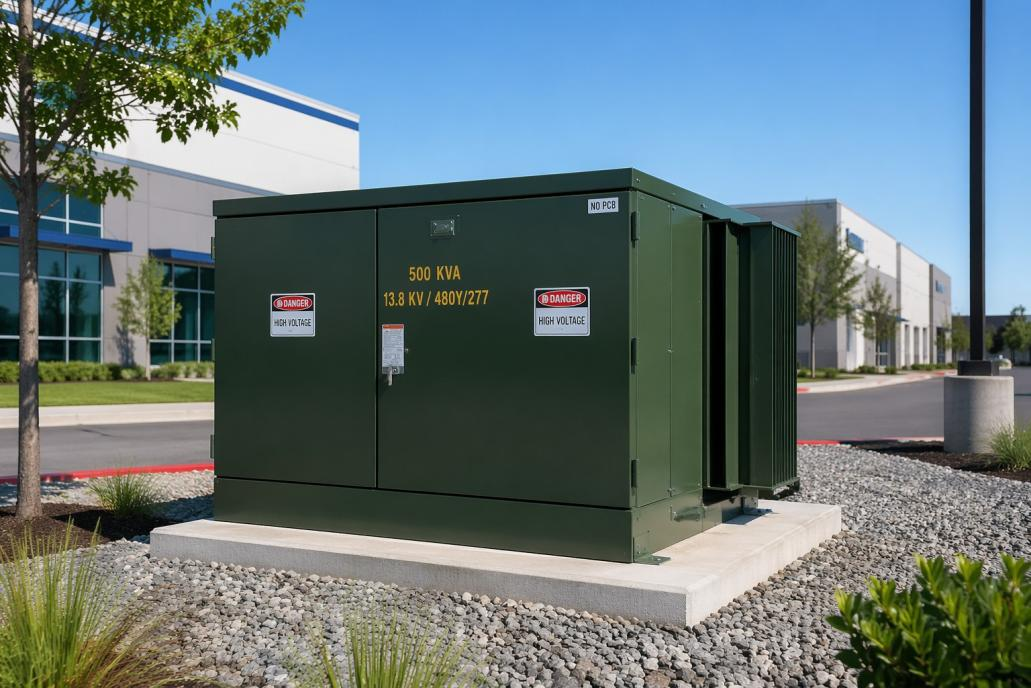

Specialized Types: Three-Phase Pad-Mounted Transformers

Pad-Mounted Transformer.png



These units are designed for underground power distribution systems. They are typically housed in a tamper-resistant metal cabinet, allowing them to be installed in public areas without the need for protective fencing.

Dry-type vs. Oil-immersed

When selecting a transformer, engineers must choose between Dry-type and Oil-immersed designs:

• Oil-immersed Transformers: Use mineral oil for both insulation and cooling. They are generally more efficient and have a longer lifespan, making them the standard for outdoor and high-voltage applications.

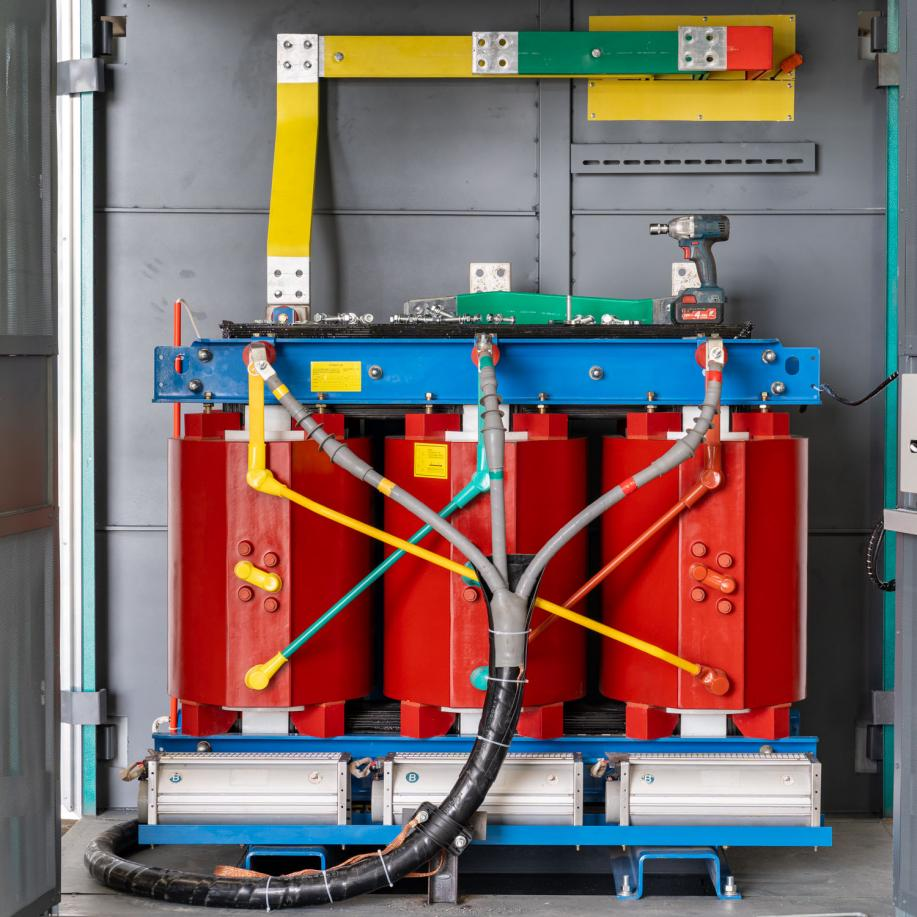

• Dry-type Transformers: Use air as the cooling medium and specialized resin for insulation. They are preferred for indoor installations, such as within Data Centers or hospitals, because they eliminate the fire risk associated with oil.

Industrial Applications: Powering the Future

Renewable Energy

Solar farms and wind turbines generate power that must be integrated into the grid. Specialized transformers are used to step up the variable output of Renewable Energy sources to the high voltages required for the transmission network.

EV Charging Stations

The rise of electric vehicles has created a massive demand for high-power EV Charging Stations. Fast-charging hubs require significant amounts of power, often necessitating dedicated three-phase transformers to handle the load without destabilizing the local grid.

Data Centers

Modern Data Centers are energy-intensive facilities that require ultra-reliable power. They rely on three-phase systems to provide balanced power to thousands of servers, using both step-down transformers and Uninterruptible Power Supplies (UPS) to ensure zero downtime.

dry type transformer.png



How to Select kVA Ratings

1. Calculate the Total Load: Sum up the power requirements of all connected equipment in kW and convert to kVA by dividing by the power factor (typically 0.8 to 0.9).

2. Account for Future Expansion: It is wise to select a transformer with a kVA rating that is 20-30% higher than the current peak load to allow for growth.

3. Consider Duty Cycle: Continuous industrial loads require more robust cooling and potentially a higher kVA rating than intermittent loads.

4. Environmental Factors: High altitudes or extreme ambient temperatures may require "derating" the transformer, as cooling efficiency decreases.

Conclusion

The Three-Phase Transformer remains an indispensable asset in the global power infrastructure. By leveraging the principles of Electromagnetic Induction and utilizing advanced materials like the Laminated Silicon Steel Core, these devices provide the foundation for efficient Industrial Power Distribution. Whether you are building a new solar farm, upgrading Data Centers, or installing high-speed EV Charging Stations, understanding the nuances of kVA ratings, configurations, and types is key to a successful electrical design.

As we move toward a more electrified and sustainable future, the role of these transformers will only grow, continuing to serve as the silent workhorses of the modern world.
