If you have ever glanced up at the utility poles along your street, you have seen a power line transformer — that cylindrical gray metal can bolted high above the ground. These devices are the quiet workhorses of the electrical grid, bridging the gap between high-voltage transmission lines and the safe, usable electricity that powers homes, businesses, and industrial facilities.
A power line transformer (also called a power pole transformer or utility pole transformer) is a type of distribution transformer that steps down high primary voltage from overhead power lines to a lower secondary voltage suitable for end users. Without transformers on power lines, the electricity generated at power plants — often tens of thousands of volts — would be far too dangerous and incompatible with everyday appliances. This article explains what a transformer on a power line is, how it works, what is inside it, and why it is essential to modern life.
Not all power line transformers look the same. Their appearance depends on the installation environment and distribution system design. The two most common configurations are:

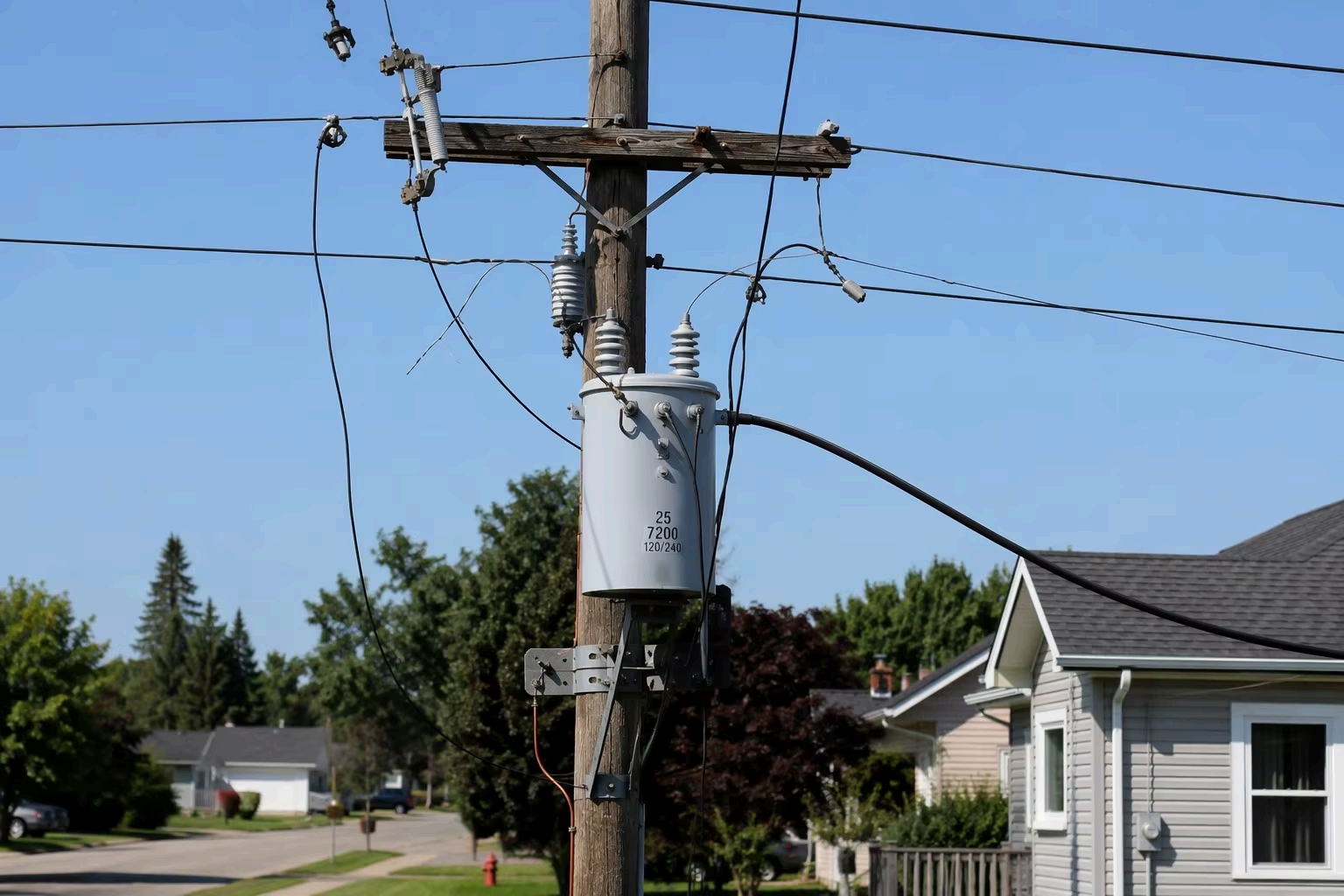

The most visible type, a pole mounted transformer (or pole-mounted transformer) is a cylindrical, oil-filled steel tank bolted directly to a wooden or steel utility pole. You will see these everywhere in suburban and rural neighborhoods across the United States. Primary voltage wires enter through porcelain or polymer bushings on top, and secondary wires exit to the service drop that feeds individual homes. A typical pole mounted transformer handles between 10 and 167 kVA, serving anywhere from a single rural property to a cluster of 5–10 houses.

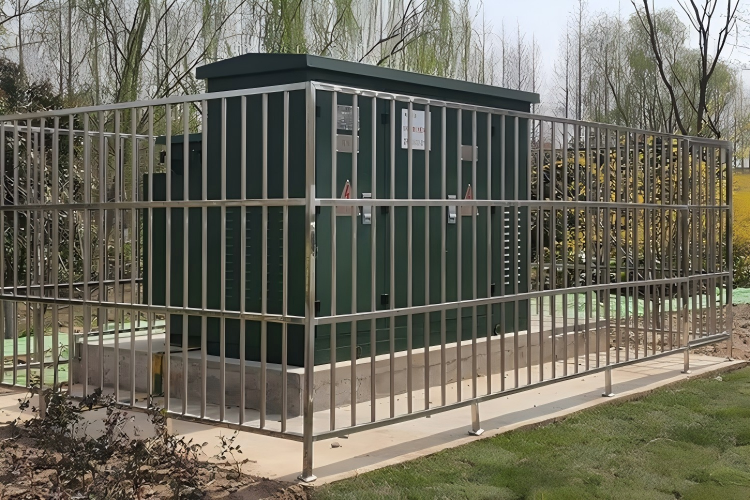

In urban areas and underground distribution systems, pad mounted transformers (or pad-mounted transformers) are used instead. These are housed in locked metal cabinets that sit on a concrete pad at ground level. They serve the same function as pole mounted transformers — stepping down voltage for customer use — but are preferred where overhead lines are impractical or where aesthetics and safety concerns favor underground cabling. A single pad mounted transformer can serve an apartment complex, a commercial plaza, or a small industrial facility.
Every power line transformer operates on the principle of electromagnetic induction, discovered by Michael Faraday in 1831. There are no moving parts inside — just coils of wire and a magnetic core working together to transform voltage levels.
The process works as follows:
1.Alternating current (AC) from the distribution line enters the primary winding, which is connected to the high-voltage side of the transformer power line system.
2. The changing current creates a fluctuating magnetic field in the laminated silicon steel core, which is designed to guide the magnetic flux with minimal energy loss.
3. That magnetic field induces a voltage in the secondary winding, which has a different number of turns than the primary winding.
4. The turns ratio— the ratio of primary turns to secondary turns — determines how much the voltage is stepped down. For example, a 30:1 turns ratio on a 7,200V primary produces roughly 240V on the secondary side.
This is why most power line transformers are step-down transformers: they reduce high distribution voltage to safe residential or commercial levels. In some specialized applications — such as generator substations or wind farms — a step-up transformer is used instead to raise voltage for efficient long-distance transmission.

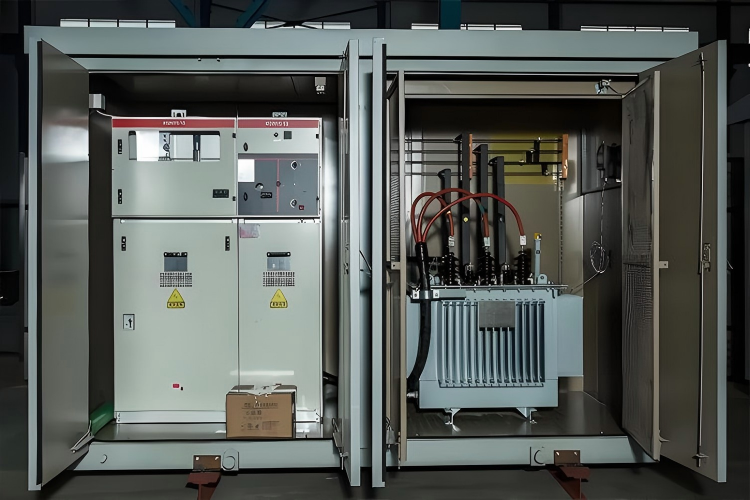

A power line transformer may look like a simple sealed container from the outside, but its interior contains precisely engineered components that work together for decades. The key internal parts include:
Component | Function |
Magnetic Core | Made of laminated silicon steel sheets; provides a low-reluctance path for magnetic flux while minimizing eddy current losses |
Primary Winding | Receives high-voltage input from the distribution line; typically made of copper or aluminum conductors with heavy insulation |
Secondary Winding | Delivers the stepped-down output voltage; wound with more or fewer turns depending on the desired turns ratio |
Transformer Oil | Fills the tank in oil-filled transformer designs; serves as both an electrical insulator and a cooling medium, transferring heat from the windings to the tank walls |
Cooling Fins | Metal fins or radiator panels welded to the outside of the tank; they dissipate heat into the surrounding air through natural convection |
Bushings | Porcelain or polymer insulators mounted on the top of the tank; they allow high-voltage cables to safely enter and exit without arcing to the grounded tank |
Tap Changer | A mechanical switch that adjusts the turns ratio by connecting to different tap points on the winding, typically offering ±5% voltage adjustment to compensate for line voltage variations |
Pressure Relief Valve | A safety device that vents internal pressure if the oil overheats due to a fault, preventing the tank from rupturing |
Power line transformers are available in two primary insulation and cooling designs:
Feature | Oil-Filled Transformer | Dry-Type Transformer |
Cooling Medium | Mineral oil (natural convection) | Air or resin encapsulation |
Installation | Outdoor — poles, pads, substations | Indoor — buildings, fire-sensitive areas |
Cooling Efficiency | Superior heat dissipation through oil and tank fins | Lower; relies on ambient air circulation |
Maintenance | Periodic oil sampling and leak inspection | Minimal routine maintenance |
Fire Risk | Higher if the tank ruptures | Lower; no combustible fluid |
Service Life | 25–40 years | 15–25 years |
Cost | Generally lower upfront cost | Higher upfront cost |
For outdoor distribution applications, the oil-filled transformer dominates because of its superior cooling capacity, overload tolerance, and lower cost per kVA. Dry-type transformers are preferred indoors — in high-rise buildings, hospitals, and data centers — where fire safety regulations restrict the use of oil-filled equipment.
The primary voltage of a power line transformer depends on the distribution voltage class of the local utility grid. Common primary voltages in North America include:
● 7,200V / 7,620V(line-to-neutral on 12,470V or 13,200V wye systems)
● 13,800V (common on heavier distribution feeders)
● Up to 34,500V for sub-transmission-level distribution
The secondary voltage — the output delivered to customers — is standardized based on the application:
Application | Secondary Voltage |
Residential (single-phase) | 120/240V split-phase |
Light commercial | 208Y/120V three-phase |
Industrial | 480Y/277V three-phase |
The kVA rating determines how much load a power line transformer can handle. Selecting the correct kVA size is critical — undersized units overheat and fail prematurely; oversized units waste capital and run at suboptimal efficiency.
kVA Range | Typical Application |
10–25 kVA | Small homes, rural properties, 1–3 houses |
37.5–50 kVA | Neighborhood average, 5–8 homes |
75–100 kVA | Apartment buildings, small commercial, light industrial |
167+ kVA | Industrial plants, data centers, large commercial complexes |
Utilities typically oversize power line transformers by 20–30% to accommodate future load growth — a practice that has become especially important with the rapid adoption of electric vehicle chargers and heat pumps.
Power line transformers occupy the final stage of electricity distribution — the "last mile" between the substation and the customer meter. Electricity is generated at power plants at medium voltage, stepped up to high voltage (110 kV to 765 kV) for efficient long-distance transmission, stepped down again at substations, and finally reduced by distribution transformers to a safe utilization voltage at the point of use.
Without this power line transformer system, the electrical grid would face two insurmountable problems:
●Transmission losses : Sending electricity at utilization voltage (120–480V) over long distances would result in massive energy losses due to conductor resistance.
●Safety hazards : High transmission voltages are lethal and incompatible with consumer equipment. Every appliance, light fixture, and motor relies on the voltage reduction that transformers on power lines provide.
By stepping voltage down locally — on the pole outside your house or the pad in your neighborhood — power line transformers make electricity simultaneously efficient to transport and safe to use.
A power line transformer is a distribution transformer — typically a pole mounted transformer or pad mounted transformer — that steps down high-voltage electricity from overhead or underground distribution lines to a lower, usable voltage for homes, businesses, and industrial equipment.
Almost all power line transformers on utility poles are step-down transformers. They take high primary voltage (7,200V–34,500V) and reduce it to low secondary voltage (120/240V or 277/480V). Step-up transformers are used at power plants and wind farms to raise voltage for long-distance transmission, not on distribution poles.
Pole mounted transformers are installed on utility poles, are less expensive to install, and dominate in suburban and rural overhead distribution. Pad mounted transformers sit on concrete pads at ground level, connect to underground cables, and are preferred in urban areas, subdivisions, and locations where aesthetics or flood risks make overhead installation undesirable.
The oil in an oil-filled transformer serves two critical functions. First, it acts as an electrical insulator, preventing arcing between the high-voltage windings and the grounded tank. Second, it transfers heat from the core and windings to the tank walls and cooling fins, where it dissipates into the surrounding air. Oil-filled units last longer outdoors and withstand overload conditions better than dry-type transformers.
A well-maintained power line transformer typically lasts 25 to 40 years. Factors that affect lifespan include load patterns (frequent overloading shortens life), ambient temperature, oil condition, and the quality of surge protection. Regular oil sampling, thermal monitoring, and bushing inspection help maximize service life.
Inside a power line transformer you will find a laminated silicon steel core, primary winding and secondary winding coils (copper or aluminum), mineral oil for insulation and cooling, bushings for cable connections, and a tap changer for voltage adjustment. There are no moving parts — the entire device operates through electromagnetic induction.
The power line transformer is one of the most essential yet overlooked components of the electrical grid. Every time you turn on a light, charge a phone, or start a motor, you are relying on a transformer on a power line to have safely stepped down thousands of volts to the precise voltage your equipment needs.
Whether it is a pole mounted transformer on a rural road, a pad mounted transformer in a suburban subdivision, or a three-phase transformer feeding an industrial park, these devices represent the critical final link between high-voltage transmission and everyday electricity consumption. Understanding how they work, what is inside them, and how to size and maintain them helps engineers, contractors, and facility managers make informed decisions about the power systems they depend on.
For those looking to source power line transformers — from single-phase 10 kVA units to large three-phase industrial configurations — working with an experienced manufacturer that offers customizable designs, international standards compliance, and reliable after-sales support is essential to ensuring long-term performance and safety.
