Introduction

Every electrical transformer — whether it is a compact unit on a neighborhood pole or a massive power transformer in a transmission substation — relies on two fundamental components to perform its essential function: the transformer core and the transformer coils (also called windings). Together, these elements form the electromagnetic heart of the device, converting electrical energy from one voltage level to another with the efficiency and reliability that modern power systems demand. The materials chosen for the core and coils, the precision of their design, and the way they are integrated directly determine the transformer's performance, operating cost, and service life. This article provides a thorough exploration of transformer core and coils — the materials, designs, working principles, and applications that define them.

Why Transformer Core and Coils Matter

The transformer core and coils are the two most critical components of any transformer. Their role can be stated simply: the core provides a low-reluctance path for the magnetic field, while the coils carry the electrical current that creates and receives that magnetic field. Together, they enable voltage transformation through the principle of electromagnetic induction.

The quality of these components has direct, measurable consequences:

Efficiency: The choice of core material and the design of the coils determine how much electrical energy is lost as heat during voltage conversion. A transformer with a well-designed core and optimized coils can achieve efficiency exceeding 99%, while a poorly designed unit may waste several percent of throughput as thermal energy loss.

Operating Cost: Energy losses in the core (no-load losses) and coils (load losses) translate directly into higher electricity consumption and operating cost over the transformer's decades-long service life. Even a 0.5% difference in efficiency can represent tens of thousands of dollars in additional energy costs for a large power transformer.

Size and Footprint: The conductivity of the coil material and the magnetic properties of the core affect how much material is needed to achieve a given power rating. Higher-performance materials enable more compact designs — an important consideration in space-constrained installations.

Service Life: Excessive heat — the byproduct of energy losses — accelerates insulation degradation. A core and coil system designed to minimize losses runs cooler, extending the transformer's operational life.

How Transformer Core and Coils Work Together

The interaction between the transformer core and coils is the physical mechanism underlying all voltage transformation:

The Primary Coil Creates a Magnetic Field When alternating current flows through the primary coil (or primary winding), it generates a time-varying magnetic field around the conductor. The strength of this field is proportional to the current and the number of turns in the primary coil.

The Core Guides the Magnetic Flux The magnetic field produced by the primary coil must be efficiently channeled to the secondary coil. This is the role of the transformer core — typically made of high-permeability silicon steel or amorphous metal — which provides a closed magnetic circuit with very low reluctance. Without the core, the magnetic field would disperse into the surrounding air, and the vast majority of energy would be lost.

The Secondary Coil Receives the Flux The changing magnetic flux in the core links with the secondary coil (or secondary winding), inducing a voltage across its terminals. The magnitude of the induced voltage is determined by the turns ratio — the ratio of the number of turns in the secondary coil to the number of turns in the primary coil.

Step-Up and Step-Down If the secondary coil has more turns than the primary coil, the output voltage is higher than the input — this is a step-up transformer. If the secondary coil has fewer turns, the output voltage is lower — a step-down transformer. The turns ratio is the fundamental design parameter that defines the transformer's voltage transformation function.

This elegant mechanism — a primary coil creating flux, a core guiding it, and a secondary coil receiving it — has remained the foundation of transformer design for over a century. What has evolved dramatically is the materials science and engineering precision applied to each element.

Transformer Core Materials

The material chosen for the transformer core is the single most important factor determining no-load losses and overall magnetic performance. Three materials dominate modern transformer manufacturing:

Silicon Steel Silicon steel — an iron alloy containing 3–4% silicon — is by far the most common core material in use today. The addition of silicon increases the material's electrical resistivity, which suppresses eddy current loss, while retaining high magnetic permeability. Silicon steel cores can carry substantial magnetic flux density with relatively low hysteresis loss.

Grain-Oriented Silicon Steel Grain-oriented silicon steel represents a significant advance over standard silicon steel. During manufacturing, the steel is cold-rolled and annealed in a way that aligns the crystal grain structure in a single direction. This alignment produces exceptional magnetic properties along the rolling direction — lower hysteresis loss, higher permeability, and greater saturation flux density. Grain-oriented silicon steel is the standard material for large power transformers in transmission grids, where even small efficiency improvements yield substantial economic returns over decades of operation.

Amorphous Metal Amorphous metal (also called metallic glass) has a fundamentally different atomic structure from crystalline metals. Instead of an ordered crystal lattice, the atoms are arranged in a random pattern — similar to glass. This disordered structure results in extremely low coercivity, meaning very little energy is required to magnetize and demagnetize the material. Amorphous metal cores exhibit hysteresis loss that is 70–80% lower than the best grain-oriented silicon steel.

The trade-off is that amorphous metal is more expensive, more difficult to manufacture into large cores, and has lower saturation flux density (requiring a physically larger core for the same power rating). For these reasons, amorphous metal cores are most commonly found in distribution transformers where no-load losses dominate total energy loss, and in renewable energy applications where high efficiency at partial load is critical. The increasing stringency of DOE efficiency standards — with new requirements taking effect in 2028 — is expected to accelerate amorphous metal adoption.

The table below compares key properties:

Transformer Core Designs

Beyond material selection, the geometric design of the transformer core significantly affects energy loss, mechanical integrity, and noise:

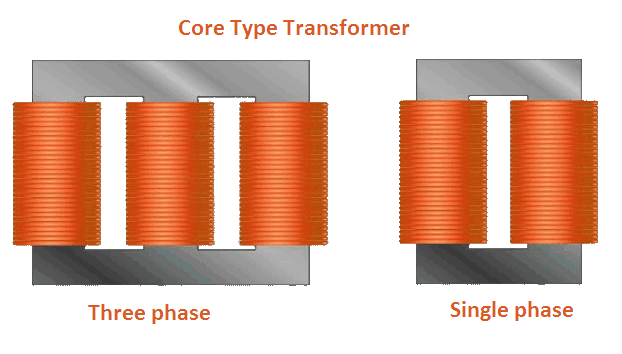

Laminated Core The laminated core is the standard design for the vast majority of transformers. The core is built from many thin sheets (laminations) of silicon steel, each coated with an insulating layer, stacked and clamped together. The purpose of lamination is to interrupt the paths of eddy currents — circulating electrical currents that form within the core material itself, generating heat and wasting energy. By dividing the core into thin, electrically isolated layers, eddy current loss is dramatically reduced. The thinner the laminations, the lower the eddy current loss — but also the higher the manufacturing cost.

Shell-Type Core In a shell-type core, the magnetic circuit surrounds the coils on three sides, rather than the coils surrounding the core limbs. This configuration provides superior mechanical bracing, reduced magnetic flux leakage, and high short-circuit withstand capability. Shell-type cores are used in high-power applications — such as furnace transformers, traction transformers, and industrial units — where mechanical stress and compact dimensions are primary concerns.

Toroidal Core A toroidal core is shaped like a donut, with the coils wound uniformly around the entire circumference. This geometry eliminates air gaps and provides a continuous magnetic path with minimal flux leakage. Toroidal cores are inherently quieter (lower magnetostriction noise) and more efficient for smaller ratings. They are commonly found in instrument transformers, audio transformers, and small power supplies, but are less practical for large power ratings due to manufacturing complexity.

Core Design and Cost The choice of core design affects not only performance but also upfront cost. Shell-type cores require more material and more complex manufacturing, increasing initial investment. Laminated cores using grain-oriented silicon steel strike the best balance of performance and cost for most applications. Advanced or specialized designs may have higher initial costs but can deliver significant savings over time through reduced energy loss and lower maintenance requirements.

Transformer Coil Materials

The transformer coils carry the full operating current of the device, and the material from which they are made directly affects load losses, size, weight, and cost:

Copper Copper is the premium coil material. It offers approximately 60% higher electrical conductivity than aluminum, meaning a copper winding of a given cross-section has lower resistance and therefore lower I²R (load) losses. For the same current-carrying capacity, a copper coil requires less material and occupies less space, enabling a more compact transformer design. Copper also has superior mechanical strength and thermal conductivity, both of which contribute to long-term reliability.

The primary disadvantage of copper is cost — copper is typically three to four times more expensive than aluminum on a per-kilogram basis. However, the material cost difference is partially offset by the smaller volume required, and for applications where efficiency and compact size are priorities, copper remains the preferred choice.

Aluminum Aluminum windings offer a compelling alternative to copper, particularly for cost-sensitive applications. Aluminum is significantly less expensive, lighter in weight (approximately one-third the density of copper), and its price is more stable than copper, which is subject to commodity market volatility.

The trade-off is lower conductivity: an aluminum coil requires approximately 60% more cross-sectional area to carry the same current as a copper coil. This results in a physically larger transformer for the same rating. Aluminum is also more susceptible to thermal expansion and has lower tensile strength, though modern manufacturing techniques — including proper connection design and the use of specialized termination hardware — have largely addressed historical reliability concerns.

Aluminum is the dominant coil material for distribution transformers — including pole-mounted and pad-mounted units — where cost, weight, and reliability are balanced appropriately for the application.

The table below summarizes the comparison:

Transformer Coil Designs

The physical arrangement of the coils — how the conductor is wound and shaped — affects heat dissipation, mechanical strength, and electrical performance:

Layer Coil (Layer Winding) In a layer winding, the conductor is wound in multiple flat layers, one on top of another, around the core limb. This design provides good mechanical strength because each layer supports the next, and it simplifies manufacturing for smaller units. Layer coils are commonly used in distribution transformers and low-voltage windings.

Disc Coil (Disc Winding) In a disc winding, the conductor is wound into a series of flat discs stacked along the core limb, separated by insulating spacers that create radial oil ducts. This arrangement provides excellent heat dissipation because the insulating oil (in oil-immersed transformers) can flow freely through the ducts between discs, carrying heat away from the conductors. Disc coils are the standard design for high-voltage power transformers, where thermal management is a primary design concern.

Continuous Disc Winding An advanced form of disc winding, this technique winds the entire high-voltage coil as a single continuous conductor, eliminating internal joints and reducing the risk of hot spots or weak points. It is used in the most demanding power transformer applications.

Precision Coil Winding Modern transformer manufacturing employs computer-controlled winding machines that ensure consistent tension, precise turn spacing, and uniform layer geometry. These manufacturing advances contribute directly to lower losses, better thermal performance, and longer service life.

Energy Losses: Hysteresis and Eddy Current

Understanding energy losses in the transformer core is essential for appreciating why material and design choices matter:

Hysteresis Loss Hysteresis loss occurs because the magnetic domains within the core material resist realignment each time the alternating current changes direction (100 or 120 times per second, depending on grid frequency). Overcoming this resistance consumes energy, which is dissipated as heat. The magnitude of hysteresis loss depends on the core material's coercivity — the magnetic field strength required to reverse its magnetization. Grain-oriented silicon steel and, even more so, amorphous metal, have very low coercivity and therefore low hysteresis loss.

Eddy Current Loss Eddy current loss occurs because the changing magnetic flux in the core induces circulating electrical currents within the core material itself, perpendicular to the flux direction. These currents encounter the material's electrical resistance and generate heat — pure wasted energy. Laminating the core into thin, insulated sheets — the laminated core design — breaks up these circulating current paths and is the primary mitigation strategy. Thinner laminations reduce eddy current loss but increase manufacturing cost.

Together, hysteresis loss and eddy current loss constitute the no-load (or core) losses of the transformer — losses that occur whenever the transformer is energized, regardless of load. Minimizing these losses through high-quality materials and precision lamination is a central goal of transformer core design.

Real-World Applications

Transformer core and coil technology manifests differently across application categories:

Residential Distribution Neighborhood distribution transformers — the green boxes on pads or the cylinders on poles — typically use laminated cores made of standard silicon steel and aluminum coils for cost-effectiveness. Their modest ratings (typically 25–500 kVA) and outdoor installation make this combination the industry standard for residential power delivery.

Industrial Power Supply Industrial power transformers serving factories, refineries, and processing plants demand higher ratings (5–100+ MVA) and continuous-duty reliability. These units commonly use grain-oriented silicon steel laminated cores and copper coils with disc winding configurations. The higher material cost is justified by the efficiency gains over decades of 24/7 operation.

Renewable Energy Integration Wind farm and solar PV transformers increasingly use amorphous metal cores to minimize no-load losses during periods of partial or zero generation. Combined with aluminum or copper coils depending on project economics, these designs meet the growing demand for efficiency in sustainable energy infrastructure.

High-Efficiency and DOE-Compliant Designs With the U.S. Department of Energy's updated efficiency standards taking effect in 2028 — requiring significant reductions in transformer losses — the industry is accelerating the adoption of amorphous metal cores and copper coils even in traditionally cost-driven segments. The trend is toward higher upfront material investment in exchange for lower lifetime operating cost.

FAQ

Q1: What is the role of the transformer core and coils? The transformer core provides a controlled, low-reluctance path for the magnetic field, while the transformer coils carry the electrical current that creates (in the primary coil) and receives (in the secondary coil) that magnetic field. Together, they enable efficient voltage transformation through electromagnetic induction.

Q2: Why is silicon steel used for transformer cores? Silicon steel is used because it combines high magnetic permeability (ability to guide magnetic flux), low hysteresis loss, and increased electrical resistivity (which reduces eddy current loss) — all at a competitive cost. Grain-oriented silicon steel further improves performance by aligning the crystal structure for optimal magnetic properties.

Q3: What is the difference between copper and aluminum transformer coils? Copper coils offer approximately 60% higher electrical conductivity, resulting in lower losses, smaller physical size, and better mechanical strength — but at a higher material cost. Aluminum coils are lighter and less expensive but require more material volume for the same current, producing a larger transformer footprint.

Q4: What are hysteresis loss and eddy current loss? Hysteresis loss is the energy consumed by repeatedly magnetizing and demagnetizing the core material with each AC cycle. Eddy current loss is the energy wasted as heat from circulating currents induced within the core material. Both are minimized through high-quality core materials and laminated core construction.

Q5: What is a laminated core and why is it used? A laminated core is built from thin sheets of silicon steel (or amorphous metal), each electrically insulated from its neighbors and stacked together. This construction interrupts the paths of eddy currents within the core, dramatically reducing eddy current loss and improving efficiency.

Q6: When should I choose copper coils over aluminum coils? Copper coils are recommended when efficiency is the highest priority, when space constraints demand a compact design, or when the transformer will operate at high load factors where lower I²R losses deliver significant lifetime energy savings. Aluminum coils are appropriate for cost-driven projects where slightly lower efficiency and larger size are acceptable trade-offs.

Conclusion

The transformer core and coils are far more than just components — they are the electromagnetic engine that makes voltage transformation possible, and their design defines the transformer's performance, efficiency, cost, and longevity. From the choice between silicon steel and amorphous metal for the core, to the decision between copper and aluminum for the coils, to the selection of laminated, shell-type, or toroidal construction — every design decision carries consequences that play out over decades of service.

As global energy demands grow and efficiency standards tighten, the trend in transformer core and coil technology is clear: higher-performance materials, precision manufacturing, and designs optimized for minimum lifecycle cost rather than minimum upfront price. Whether for a neighborhood distribution transformer, an industrial power transformer, or a renewable energy installation, understanding the fundamentals of core and coil design is the first step toward specifying equipment that will deliver reliable, efficient service for the long term.
