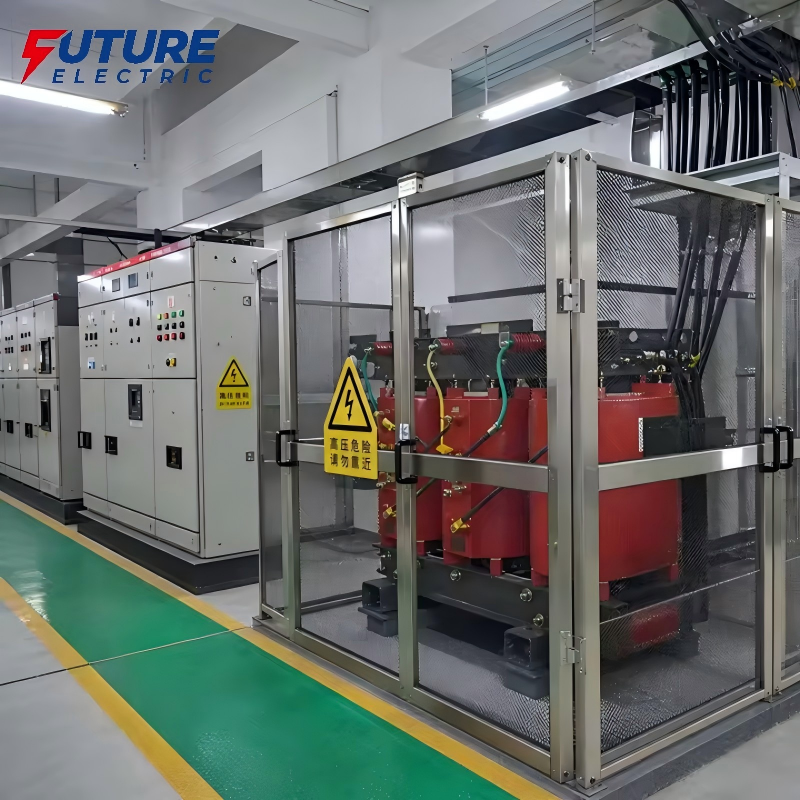

SCB14 10kV three phase dry type transformer

SCB14 10kV Three Phase Dry Type Transformer

The SCB14 10kV epoxy resin cast dry-type transformer is applicable to the power system with the AC frequency of 50Hz/60Hz and rated operating voltage of 10kV and below. It is widely used as the distribution transformer in hospitals, data centers, commercial buildings, chemical plants, metallurgical plants and other fields with high safety and environmental protection requirements.

Model:
SCB14 10kV
Brand:
Future Electric


Availability:



Inquire

Product Description

Technical Parameter

Model	Rated Capacity KVA	Voltage combination and Tap range			Connection symbol	No-Load Loss KW	LoadLoss KW	Short Circuit impedance %	Noload current %
Model	Rated Capacity KVA	HighVoltage KV	High voltage Tap range%	LowVoltage KV	Connection symbol	No-Load Loss KW	LoadLoss KW	Short Circuit impedance %	Noload current %
SCB14-30/10	30	10 10.5	±2×2.5	0.4	Dyn11	0.13	0.64	4	2.1
SCB14-50/10	50					0.185	0.9		2
SCB14-63/10	63					0.23	1.07		1.9
SCB14-80/10	80					0.25	1.24		1.8
SCB14-100/10	100					0.27	1.415		1.6
SCB14-125/10	125					0.32	1.665		1.5
SCB14-160/10	160					0.365	1.915		1.4
SCB14-200/10	200					0.42	2.275		1.3
SCB14-250/10	250					0.49	2.485		1.2
SCB14-315/10	315					0.6	3.125		1.1
SCB14-400/10	400					0.665	3.59		1
SCB14-500/10	500					0.79	4.39		1
SCB14-630/10	630					0.885	5.365	6	0.9
SCB14-800/10	800					1.035	6.265		0.8
SCB14-1000/10	1000					1.205	7.315		0.7
SCB14-1250/10	1250					1.42	8.72		0.6
SCB14-1600/10	1600					1.665	10.555		0.6
SCB14-2000/10	2000					2.075	13.005		0.5
SCB14-2500/10	2500					2.45	15.445		0.4

FAQs

FAQs If you are buying dry-type transformers, then you may want to know the following questions and answers.

Q: What types of transformers do you have?

A: We have a wide range of transformers, such as power transformers, distribution transformers, step-up/step-down transformers, and dry-type transformers are one of our core products.

Q: Is it possible to order a transformer designed to my specifications?

A: Certainly. We do custom solutions. Various parameters can be specified such as power rating (kVA/MVA), input/output voltage, frequency (50Hz/60Hz), number of phases, insulation class, cooling method and standards applicable (IEC, ANSI, IEEE etc.). "Our technical team will carefully review and confirm the feasibility of these solutions.

Q : What international standards do your transformers meet?

A: We mostly comply with IEC 60076 for our transformers. We can also provide products to other regional standards such as ANSI/IEEE, CSA and EN, if required. During your consultation please advise the certification standards you require.

Q：The common ratings for voltage and frequency are:

A: Our transformers meet international standards (for example, 10kV, 20kV, 35kV) and the relevant frequency standards (50Hz or 60Hz). We also offer custom products for the needs of specific markets.

Q: How do I get a quote?

A: Please contact us through our “Contact Us” form or email us your requirements, order quantity and destination port. The more details you give us, the more accurate our quote will be.
