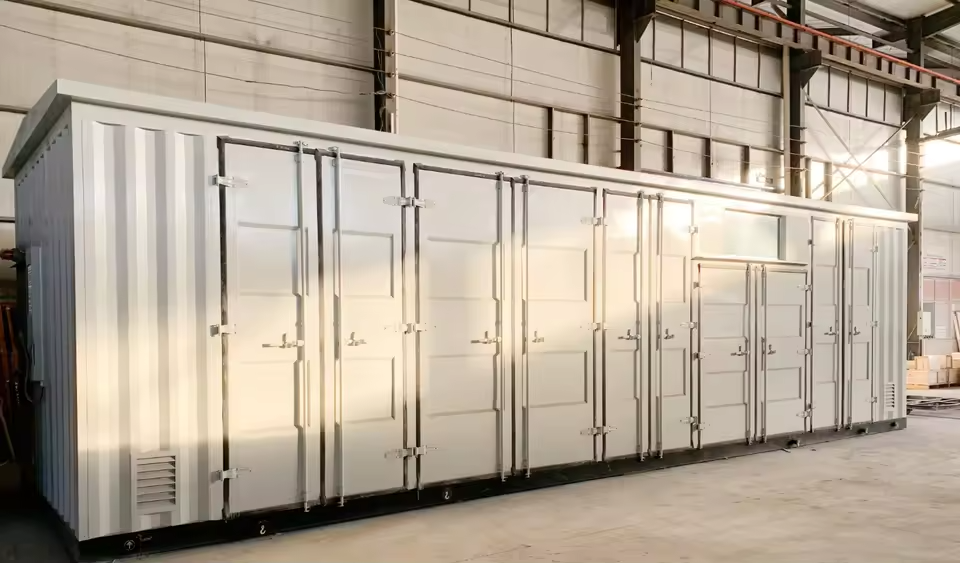

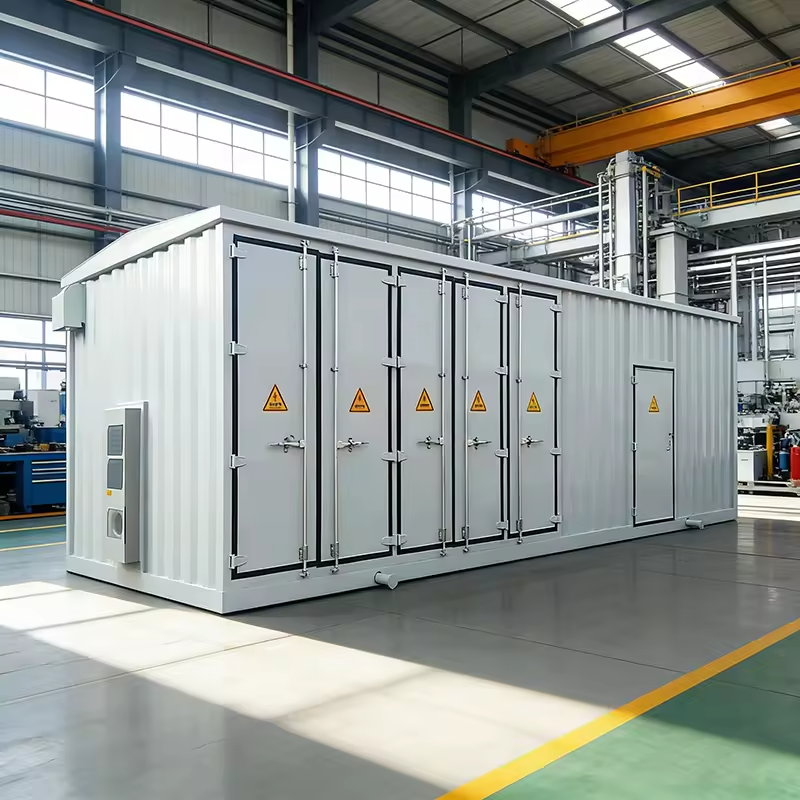

The Compact Substation is a prefabricated modular unit for power distribution, designed for the IEC standard market. The fully sealed enclosure consists of three independent units: high-voltage compartment, transformer compartment and low-voltage compartment. Compared with traditional substations, it reduces the floor space by 60% and the installation time by 70%, ideal for the requirements of global outdoor power distribution. It complies with IEC standards, it has high safety, intelligent monitoring and maintenance-free operation and has become the world's preferred choice for outdoor power distribution.

Product Features:

1. Modular design, 3 independent units, each with independent protection, safe, reliable and easy to maintain.

2. Fully sealed enclosure design with IP54 protection level, totally dust-proof and water-proof, suitable for various harsh outdoor environment, maintenance free operation.

3. High safety design, equipped with full protection system, mechanical interlocks and anti-misoperation to ensure full safety of operation.

4. Smart monitoring design, supporting remote monitoring and fault diagnosis, greatly reducing the operation and maintenance cost.

Technical specifications
