Every transformer relies on a magnetic core to transfer energy between circuits, but not all cores are built the same way. The two fundamental construction approaches — core type and shell type — define how windings, laminations, and magnetic flux interact, directly influencing performance, size, cost, and maintenance.
Understanding the difference between core type and shell type transformer is essential for engineers, procurement specialists, and facility managers who need to specify the right equipment for high voltage applications, industrial applications, or heavy-duty applications. A mismatch can lead to avoidable energy losses, cooling problems, or excessive downtime.
In this guide, we break down the construction, performance characteristics, and ideal use cases for both core type transformer and shell type transformer designs, and provide a practical framework for transformer selection.
A core type transformer is the traditional and most common design. Its magnetic core consists of two vertical sections called limbs and two horizontal yokes (horizontal sections) that connect them, forming a rectangular frame. The windings — both primary winding and secondary winding — are wrapped around the limbs, meaning the windings surround the core.
● Core laminations:Built from U-shaped and I-shaped laminations of silicon steel, stacked to form a rectangular frame.
●Winding arrangement: The low-voltage winding is placed closest to the core for better insulation, with the high-voltage winding layered on top. This is known as the concentric winding or cylindrical winding method.
● Cross-section:The core cross-section can be square,rectangular,cruciform(cross-shaped), or three-stepped (also called two-slipped), depending on the power rating. Larger units typically use stepped cross-sections to better approximate a circular shape and reduce winding material.
● Compact design— windings wrap tightly around the core, reducing overall footprint
● Easy maintenance — fewer windings must be removed during inspection or repair
● Effective cooling — the open winding arrangement allows natural oil or forced-air circulation
● Cost-effective for high voltage — widely used in power transmission applications
● Longer magnetic path leads to higher magnetic flux leakage and slightly lower efficiency compared to shell-type designs
● Lower inherent mechanical strength against short-circuit forces
What Is a Shell Type Transformer?
A shell type transformer uses a fundamentally different arrangement: the magnetic core surrounds the windings rather than the other way around. The core has three limbs — one central limb and two outer limbs. Both the primary winding and secondary winding are placed on the central limb, and the outer limbs provide return paths for the magnetic flux.
● Core laminations:Built from E-shaped and I-shaped laminations (or U and T shapes). The E laminations form the central and outer limbs, while the I laminations close the magnetic circuit.
● Winding arrangement: Windings are sandwiched between core sections using the sandwich winding or disc winding method. The insulation between winding layers is more complex but provides excellent heat distribution.
● Cross-section: The core cross-section is typically rectangular, keeping the construction straightforward for the surrounding core structure.
● Higher efficiency— shorter magnetic path reduces magnetic flux leakage and core losses
● Superior heat dissipation — the core surrounds the windings, spreading heat evenly and preventing hot spots
● Better mechanical strength — bracing and the core frame provide structural support against electromagnetic forces, ideal for heavy-duty applications
● Less copper required — the shorter winding length saves conductor material
● Larger and heavier for the same power rating
● Difficult maintenance— more windings must be removed to access internal components
● Higher manufacturing complexity and initial cost

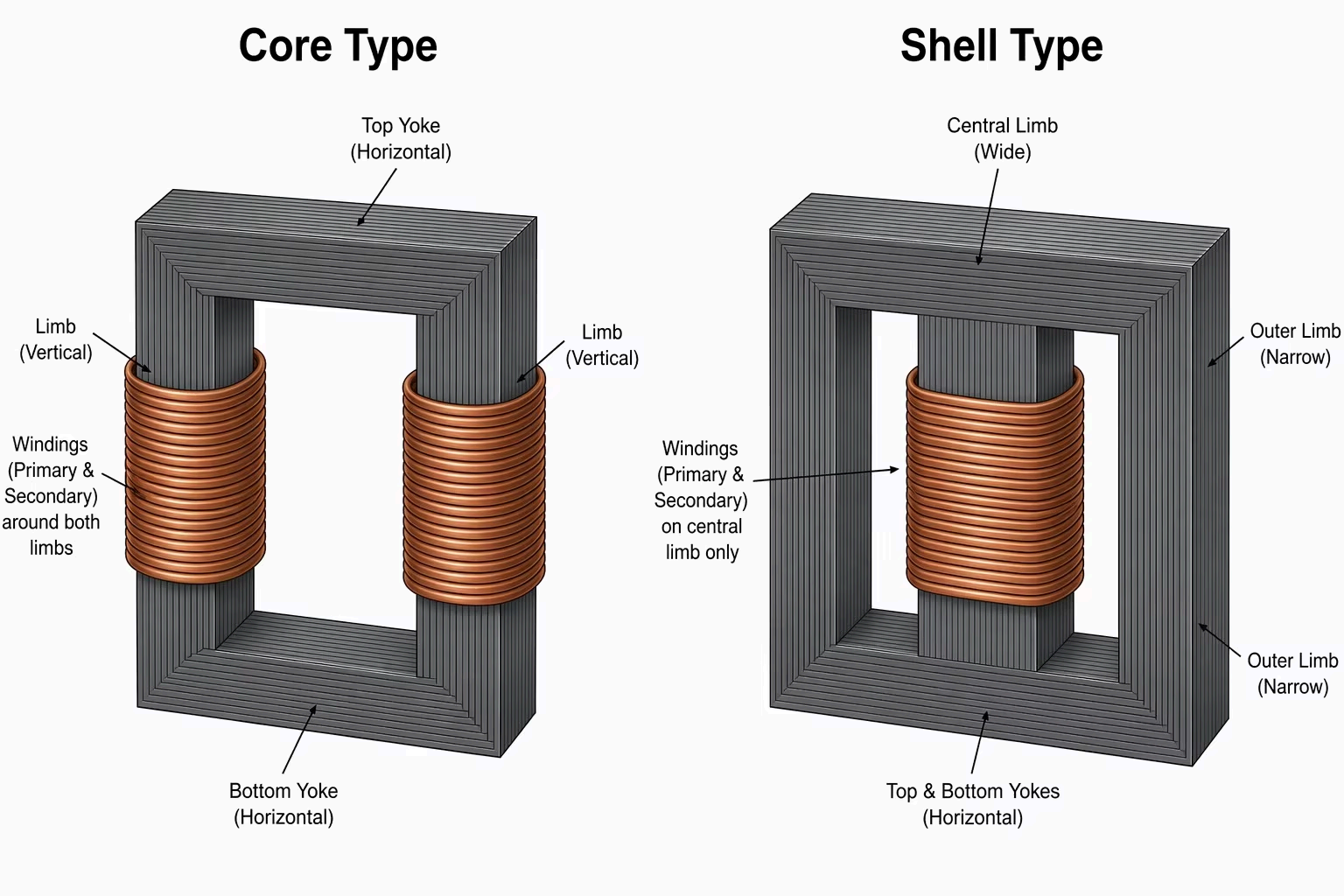

Figure 1: Structural comparison — Core Type (left) has windings wrapped around two vertical limbs connected by horizontal yokes; Shell Type (right) places windings on a single central limb enclosed by the magnetic core on both sides.
The following table summarizes the difference between core type and shell type transformer across all critical dimensions:
Aspect | Core Type Transformer | Shell Type Transformer |
Core structure | Windings surround the core; two vertical limbs + two horizontal yokes | Core surrounds the windings; one central limb + two outer limbs |
Alternative names | Core-form transformer; concentric winding / cylindrical winding | Shell-form transformer; sandwich winding / disc winding |
Lamination shape | U-shaped and I-shaped | E-shaped and I-shaped (or U and T) |
Cross-section | Square, rectangular, cruciform, or three-stepped (two-slipped) | Typically rectangular |
Winding placement | On both outer limbs | On the central limb only |
Magnetic flux path | Longer path; higher leakage flux | Shorter path; lower leakage flux |
Efficiency | Moderate | Higher, due to reduced core loss |
Copper requirement | More | Less |
Cooling method | Natural oil or forced-air cooling | Oil-filled tank cooling with superior heat distribution |
Heat dissipation | Adequate | Excellent — even distribution prevents hot spots |
Mechanical strength | Lower; relies on core frame | Higher; bracing and clamping provide robust support |
Insulation | Simpler; less material required | More complex; more material between winding layers |
Size and compactness | More compact | Larger footprint for same rating |
Maintenance | Easy — fewer windings to remove | Difficult — more windings to remove |
Typical applications | High voltage power transmission; distribution networks | High power industrial; low voltage heavy-current systems |
Cost | Lower manufacturing cost | Higher due to complex construction |
The most significant technical distinction lies in how the magnetic flux behaves in each design.
In a core type transformer, the entire flux generated by the primary winding travels through the complete core loop. This longer magnetic path increases flux distribution losses and requires more magnetizing current. The result is typically lower overall efficiency — though still well above 95% in well-designed units.
In a shell type transformer, the flux from the central limb splits into two parallel return paths through the outer limbs. With only half the total flux flowing through each outer limb at any moment, core loss is substantially reduced. The shorter, split-path design also produces lower leakage flux, translating directly into better energy efficiency.
Transformer cooling is another critical differentiator:
● Core type transformers typically rely on natural oil circulation or forced-air cooling methods. The exposed winding surfaces allow direct contact with the cooling medium, which works well for moderate power ratings.
● Shell type transformers use oil-filled tanks where the core's full enclosure of the windings creates a more uniform thermal profile. This heat management advantage makes shell-type designs preferable for continuous high-load operation where heat dissipation is paramount.
The decision between core type and shell type depends on your specific application requirements. Use this decision framework:
● You need a compact design with smaller footprint for space-constrained installations
● The application involves high voltage transmission or distribution
● Easy maintenance access is a priority for your operational team
● Budget constraints favor lower upfront manufacturing cost
● The unit will operate at moderate load factors with adequate cooling provisions
●Efficiency is the top priority, especially for continuous high-load operation
● The application is high power industrial with significant short-circuit risks — the superior mechanical strength handles electromagnetic forces better
●Heavy-duty applications demand robust construction and long service life under stress
● Space is available for a larger footprint in exchange for better heat dissipation
● Low-voltage, high-current systems require minimal copper losses
For any procurement decision, verify that the manufacturer holds relevant certifications. Reputable suppliers should provide UL/CUL certified products for North American markets and CE-certified products for European installations. Many established manufacturers also offer customized solutions tailored to specific voltage ratings, cooling requirements, and environmental conditions.
Application | Preferred Type | Reason |
Power transmission (HV substations) | Core type | Cost-effective at high voltage; easier insulation design |
Power generation (generator step-up) | Core type | Proven reliability in utility-scale installations |
Distribution networks | Core type | Compact design fits pole-mount and pad-mount configurations |
Industrial furnaces / arc furnaces | Shell type | Superior mechanical strength against frequent short-circuits |
Heavy manufacturing plants | Shell type | Handles continuous high-current loads with better cooling |
Data centers | Shell type | Higher efficiency reduces operating costs; better thermal management |
Low-voltage high-current systems | Shell type | Shorter winding path minimizes copper losses |
Traction and railway power | Shell type | Robust construction withstands vibration and load cycling |

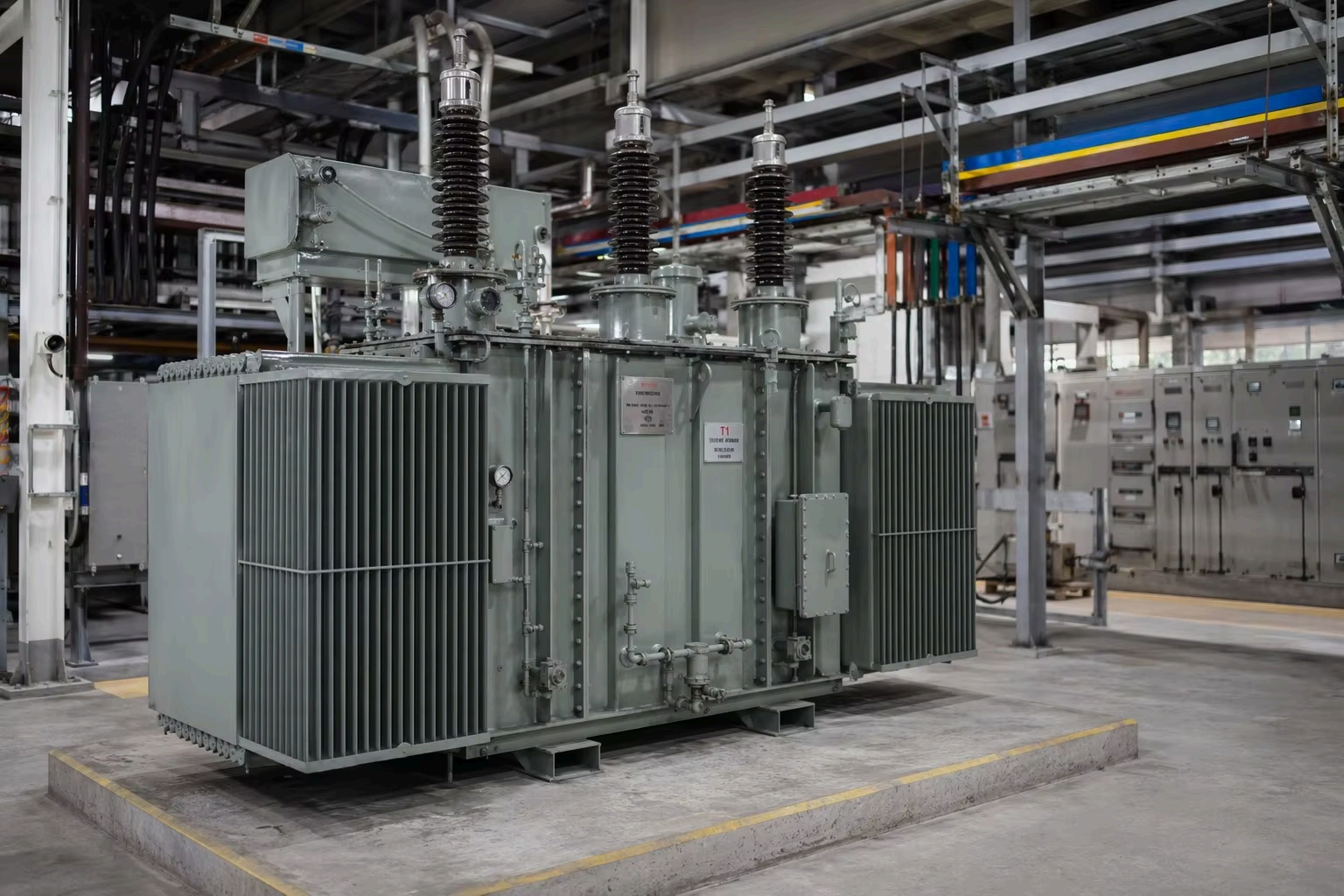

Figure 2: A heavy-duty oil-filled power transformer in an industrial substation environment — core type and shell type transformers are selected based on voltage, load characteristics, and cooling requirements.
FAQ
The fundamental difference is in how the windings and core are physically arranged. In a core type transformer, the windings surround the core — they are wrapped around the two outer limbs. In a shell type transformer, the magnetic core surrounds the windings — the windings sit on a central limb enclosed by the core structure on both sides.
Shell type transformers are generally more efficient because their shorter, split magnetic path reduces leakage flux and core losses. The flux from the central limb divides between two outer limbs, minimizing energy lost in the core material.
Core type transformers are simpler and cheaper to manufacture, more compact, and easier to maintain. These practical advantages make them the default choice for most utility and distribution applications, especially at higher voltages where insulation requirements favor the core-type design.
Core type transformers require more copper because the windings must wrap around two limbs with a longer conductor path. Shell type transformers concentrate windings on a single central limb, reducing the average winding length and total copper usage.
Choose a shell type transformer when your application demands maximum efficiency, superior short-circuit withstand capability, or continuous operation at high load factors. This includes arc furnaces, heavy industrial plants, data centers, and low-voltage high-current systems.
Yes. Both types can be UL/CUL certified for North America and CE-certified for Europe. The certification applies to the finished transformer regardless of construction type. Always verify that your supplier provides the certifications required for your installation jurisdiction.
The choice between a core type transformer and a shell type transformer is not about which design is "better" — it is about which design matches your operational priorities. Core-type units offer compact design, easy maintenance, and cost-effective performance for the majority of high voltage applications. Shell-type units deliver higher efficiency, superior heat dissipation, and the mechanical robustness required for heavy-duty industrial applications.
For engineers and buyers, the decision comes down to three questions: What voltage and power level? What are the space and maintenance constraints? And how critical is efficiency to the total cost of ownership? Answering these will point you to the right transformer selection — and to a transformer manufacturer with the certifications and engineering capability to deliver a customized solution that fits your exact requirements.
