Introduction — Why Voltage Stability Matters

In modern power systems, voltage fluctuations are unavoidable. Daily load changes, long-distance transmission losses, and the growing share of intermittent renewable energy sources all cause the grid voltage to drift. When voltage deviates beyond acceptable limits, equipment suffers- motors overheat, insulation ages faster, and in severe cases, transformers fail.

Shutting down a transformer every time voltage correction is needed is neither practical nor economical.

This is exactly where an on-load tap changer (OLTC) proves indispensable.

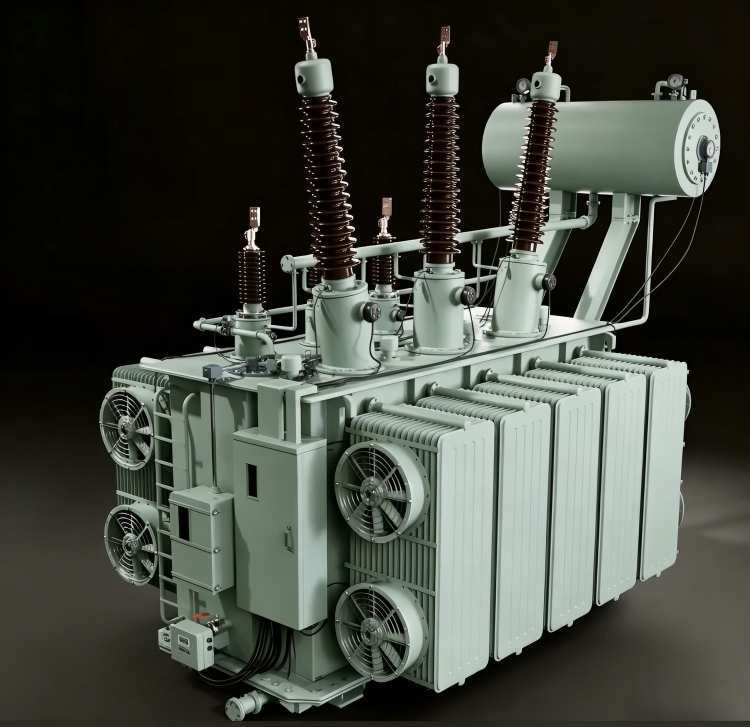

An OLTC transformer allows operators to adjust the output voltage while the transformer remains energized and under load.No power interruption, no production downtime, no compromise on grid stability. For utilities, industrial plants, and renewable energy project developers, understanding how an on-load tap changer works-and choosing the right type-is fundamental to building a resilient power infrastructure.

What Is an On-Load Tap Changer (OLTC)?

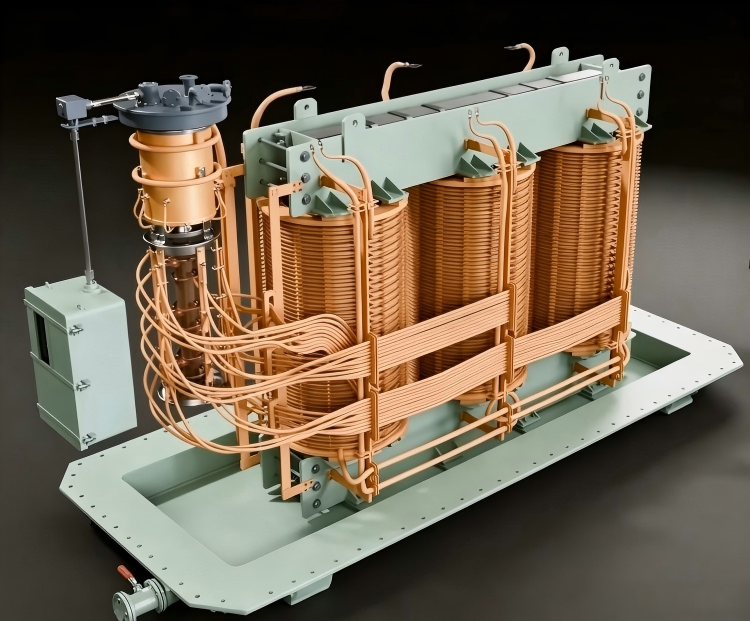

An on-load tap changer is a mechanical switching device integrated into a power transformer that changes the transformer's turns ratio -and therefore its output voltage -without interrupting the power supply. By moving between taps on the transformer winding while current is flowing, the OLTC compensates for input voltage variations and maintains secondary voltage within a narrow, predefined band.

In simpler terms: an on-load tap changing transformer regulates voltage automatically or manually, keeping your down stream equipment safe regardless of what happens on the grid.

How an OLTC Transformer Works

The working principle of a tap changer transformer relies on switching between multiple connection points-called tap positions-built into the transformer's high-voltage winding. Each tap position represents a slightly different number of active turns, producing a different output voltage.

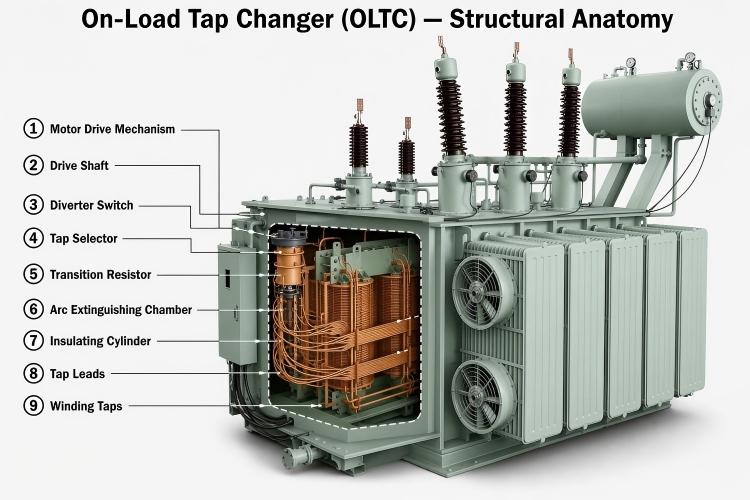

During a tap change operation, the OLTC follows a carefully coordinated sequence:

1. Preselection: The selector mechanism chooses the next tap position in advance.

2. Current transfer: Transition resistors or reactors momentarily carry the load current, bridging the gap between the old and new tap.

3. Diverter switching: The diverter switch completes the transfer, establishing the new electrical connection.

4. Stable output: The transformer resumes normal operation at the adjusted voltage level.

This entire process occurs in milliseconds, without opening the circuit and without the end user noticing any interruption. Modern OLTCs are typically motor-driven and controlled by an automatic voltage regulator (AVR) that monitors system voltage in real time. Remote operation via SCADA integration is also standard in most utility-grade installations.

On-Load Tap Changer Types

Not all OLTCs are designed the same way. The choice of on-load tap changer types depends on the transformer's power rating, voltage class, cooling method, and operational environment. The two fundamental designs are distinguished by how they handle the temporary circulating current during tap switching:

The resistor-type OLTC and in-tank OLTC are the most common configurations found in standard three-phase OLTC transformers rated from 10 MVA to 100 MVA. For extra-high voltage and critical substation applications, separate compartment OLTC with vacuum interrupter technology is becoming the preferred choice.

OLTC vs Off-Circuit Tap Changer

A common question from project planners is whether an on-load tap changer is truly necessary — or whether a cheaper off circuit tap changer will suffice. The table below breaks down the key differences:

For a transmission substation OLTC, an OLTC power transformer supplying urban grids, or a three-phase OLTC transformer serving an industrial plant with variable loads, the benefits of on-load regulation far outweigh the higher initial investment. The avoided cost of unplanned outages alone justifies the choice in most cases.

Key Applications of OLTC Transformers

OLTC transformers for substations are deployed across a wide range of power system environments:

-Transmission substations (110 kV – 765 kV): OLTCs maintain interconnecting bus voltage, enabling power exchange between regional grids.

-Distribution substations: Voltage is stepped down to medium-voltage levels; OLTCs compensate for voltage drop along long distribution feeders.

-Industrial power systems: Plants with large motor loads, arc furnaces, or welding equipment experience severe voltage swings- OLTCs stabilize the supply.

-Renewable energy integration: Solar farms and wind parks produce variable output depending on weather. An OLTC for renewable energy integration keeps the point of interconnection voltage within grid-code limits.

-Urban and critical infrastructure: Hospitals, data centers, and metro rail networks rely on OLTC transformers for uninterrupted voltage quality.

In-Tank vs Separate Compartment OLTC Design

One important design decision when specifying an OLTC transformer is whether the tap changer should be installed inside the main tank or in a separate oil-filled compartment.

For OLTC transformer for export to regions with stringent fire safety regulations (e.g., Middle East, Europe), the separate compartment OLTC design is often mandated by project specifications. A custom OLTC transformer can be configured with either option depending on the end user's operational requirements and local standards.

How OLTC Ensures Voltage Regulation

OLTC transformer voltage regulation works by continuously comparing the measured secondary voltage against a preset reference value, typically via the AVR. When the deviation exceeds a configurable deadband (commonly ±0.5% to ±1%), the AVR commands the motor drive to move the tap changer one step in the corrective direction.

This automatic loop ensures that the output voltage remains stable under:

-Daily load cycles (morning ramp-up, evening peak, night-time trough)

-Seasonal demand shifts

-Intermittent generation from solar and wind

-Network reconfiguration events

Manual override and remote control via SCADA allow operators to intervene during abnormal grid conditions.

Tap Position and Voltage Control Range

The tap position determines how much the output voltage is adjusted. Most medium and large OLTC power transformers offer:

-Voltage regulation range: ±10% of rated voltage

-Step size: 1.25% or 1.5% per tap (0.625% per tap also common in some designs)

-Number of tap positions: Typically 17 to 33 positions (including the neutral position)

For example, a 110 kV transformer with 17 taps (±8 positions plus neutral) and a 1.25% step size can adjust output voltage from 101.2 kV to 118.8 kV — fine enough to meet most grid-code requirements.

Vacuum Interrupter OLTC — The Modern Upgrade

Traditional OLTCs rely on oil as both the insulating and arc-quenching medium. Over time, this causes oil carbonization,requiring frequent oil filtration and contact replacement.

The vacuum interrupter OLTC addresses this limitation by housing the switching contacts inside vacuum bottles. Because the arc is extinguished in a vacuum — not in oil — there is virtually no oil degradation and minimal contact erosion.

Key benefits of vacuum interrupter OLTC:

-Maintenance intervals extended from 50,000–100,000 operations to 300,000+ operations

-No carbon buildup in the OLTC oil

-Reduced fire risk

-Lower total lifecycle cost despite higher initial price

For utilities aiming to minimize substation downtime, vacuum interrupters are rapidly becoming the standard.

Maintenance and Reliability

While properly designed OLTCs are mechanically robust, they remain the single most maintenance-intensive component in a power transformer. Industry data indicates that OLTC-related issues contribute to over 30% of transformer failures.

Essential OLTC maintenance tasks include:

1. Oil sampling and dissolved gas analysis (DGA) — detects early signs of contact arcing and insulation degradation

2. Contact inspection and replacement — wear items that must be replaced at intervals specified by the manufacturer

3. Motor drive mechanism inspection — lubrication, alignment, and electrical checks

4. Tap position calibration — verifies that electrical tap position matches the mechanical indicator

5. Condition monitoring — tap position counters, temperature sensors, and online DGA systems provide real-time health data

A preventive maintenance program tailored to the operating duty cycle is essential for maximizing service life.

Selecting an OLTC Transformer Manufacturer

When sourcing an OLTC transformer, whether for a new substation build or a retrofit project, the choice of manufacturer has a direct impact on long-term reliability and total cost of ownership.

Key evaluation criteria:

Technical capability: Can the OLTC transformer manufacturer design and test to your project's voltage class (e.g., 69 kV,110 kV, 230 kV) and MVA rating?

Standards compliance: Does production follow IEC 60076, IEEE C57, and applicable national grid codes?

OLTC brand: Leading OLTC brands (such as MR — Maschinenfabrik Reinhausen) provide proven reliability; ensure the transformer builder integrates them correctly.

Export experience: For international projects, choose a supplier with demonstrated OLTC transformer for export capability - including logistics, documentation, and after-sales support at the destination country.

Custom engineering: A custom OLTC transformer can be designed with the exact tap range, impedance, cooling type, and OLTC configuration (in-tank or separate compartment) required by your project.

At Shandong Future Electric Co., Ltd. — Transformer Division, we supply engineered three-phase OLTC transformers from distribution-class to power-class ratings, built to IEC and IEEE standards, with global export experience across Asia, Africa, the Middle East, and Latin America.

FAQ — Frequently Asked Questions

Q1: What is an on-load tap changer?

An on-load tap changer is a device fitted to a power transformer that allows the transformer's turns ratio — and therefore its output voltage - to be adjusted while the transformer remains energized and supplying load. It ensures continuous voltage regulation without interrupting the power supply.

Q2: How does an OLTC transformer work?

An OLTC transformer works by switching between predefined tap positions on the high-voltage winding. Transition resistors or reactors carry the current momentarily during switching, while a diverter switch completes the transfer to the new tap. The entire process happens without opening the circuit.

Q3: Where is the OLTC installed in a transformer?

The OLTC is typically installed on the high-voltage winding side, where current is lower and switching stresses are reduced. In oil-immersed transformers, it is housed either inside the main tank (in-tank OLTC) or in a separate oil-filled compartment.

Q4: What are the main types of on-load tap changers?

The two fundamental types are resistor-type OLTC and reactor-type OLTC. Additionally, OLTCs can be classified by installation as in-tank OLTC or separate compartment OLTC. Modern designs increasingly use vacuum interrupter OLTC technology to reduce maintenance.

Q5: What is the difference between OLTC and off-circuit tap changers?

An OLTC changes taps under load without power interruption, enabling automatic, continuous voltage regulation. An off-circuit tap changer (DETC) requires the transformer to be de-energized, making it suitable only for infrequent, manual adjustments in small distribution transformers.

Q6: How many tap positions does a typical OLTC transformer have?

Most medium and large power transformers have 17 to 33 tap positions, with a voltage regulation range of ±10% and step sizes of 1.25% or 1.5% per tap.

Q7: What maintenance does an OLTC require?

OLTCs require regular oil sampling, contact inspection and replacement, drive mechanism lubrication, and tap position calibration. Vacuum interrupter OLTCs significantly extend maintenance intervals compared to conventional oil-immersed designs.

Q8: Can I get a custom OLTC transformer for my project?

Yes. Most established OLTC transformer manufacturers offer custom engineering to meet specific voltage ratings, MVA capacity, impedance, tap range, and OLTC configuration requirements.

Contact us with your project specifications for a tailored proposal.

Conclusion

The on-load tap changer is a cornerstone component of any power transformer operating in a dynamic grid environment. By enabling voltage adjustment without supply interruption, the OLTC transformer protects downstream equipment, improves power quality, and supports the reliable integration of renewable energy into modern power networks.

Whether you are specifying an OLTC for transmission substation, a grid-tie transformer for a solar farm, or a rugged industrial unit- understanding the on-load tap changer types, the design tradeoffs between in-tank vs separate compartment OLTC, and the advantages of vacuum interrupter OLTC technology puts you in a stronger position to make a sound investment.

For project inquiries, technical specifications, or price quotations for a custom OLTC transformer, contact Shandong Future Electric Co., Ltd. — Transformer Division. We are a China-based OLTC transformer manufacturer with proven OLTC transformer for export capability, serving utilities, EPC contractors, and industrial customers worldwide.
