A low voltage distribution system is the infrastructure that receives electricity at a reduced voltage from a step-down transformer and distributes it through distribution panels, circuit breakers, and cables to individual loads within a building or facility. It is the final stage of the electrical grid — the point where bulk power becomes usable power.
In the United States, low voltage in the context of building distribution typically refers to systems operating at 600 volts or below, with 120, 240, 208, and 480 volts being the most common service voltages. The system includes everything downstream of the utility or customer-owned transformer: the main service panel, feeder cables, branch circuits, overcurrent protection devices, and the grounding system that ensures safety.

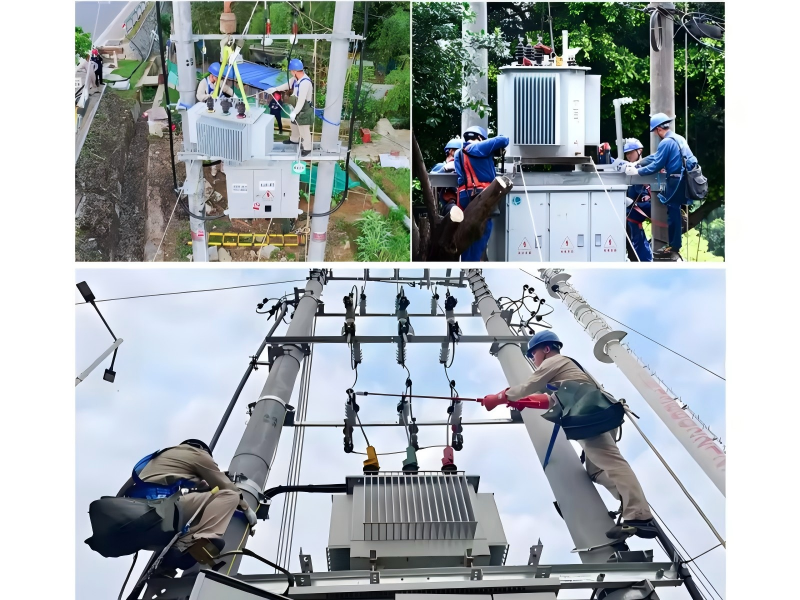

Step-Down Transformer — The interface between the utility's medium-voltage distribution network and the building's low voltage system. A transformer reduces the primary voltage — typically 7.2 kV to 34.5 kV — to the utilization voltage required by the facility. These units may be pole-mounted, pad-mounted, or located in an electrical room as dry-type transformers.
Distribution Panel (Switchboard / Distribution Board) — The central hub that receives power from the transformer and splits it into multiple branch circuits. Panels contain busbars, circuit breakers or fuses, and neutral and ground bars. In larger installations, a main distribution panel feeds sub-panels on different floors or in different zones.
Circuit Breakers and Fuses — Overcurrent protection devices that automatically disconnect a circuit when current exceeds safe levels. Circuit breakers are resettable; fuses must be replaced. Both protect cables from overheating and prevent electrical fires. Modern installations also increasingly use arc-fault circuit breakers (AFCIs) and ground-fault circuit breakers (GFCIs) for enhanced safety.
Cables and Conductors — Insulated copper or aluminum wires that carry current from the panel to the loads. Cable sizing must account for the load current, the length of the run (to limit voltage drop), and the installation environment (ambient temperature, conduit fill, etc.).
Grounding System — A network of grounding electrodes, bonding conductors, and equipment ground connections that provides a low-impedance path for fault current and stabilizes system voltage relative to earth. Proper grounding is the single most important safety feature of any low voltage distribution system.
Single-phase service is the standard for residential and small commercial installations. Two configurations dominate:
240/120 Split Phase — The most common residential service in North America. A single-phase transformer has a 240-volt secondary winding with a center tap that serves as the neutral. This creates two 120-volt circuits (line-to-neutral) and one 240-volt circuit (line-to-line). Large appliances — electric ranges, water heaters, air conditioners — run on 240 volts, while lighting and receptacles use 120 volts. The center tap is bonded to ground at the main service panel, establishing the grounded system reference.
120/240 Series Connection — Some transformers have two separate 120-volt windings that can be connected in series (producing a 240-volt output with a neutral at the midpoint, functionally identical to split phase) or in parallel (producing 120 volts only, commonly used in three-phase banked pole-mount configurations to create a 208Y/120 service).
Larger commercial and industrial facilities use three-phase power for its higher capacity and the ability to serve both three-phase motor loads and single-phase lighting and receptacle loads from the same service.
208Y/120 — The workhorse of commercial buildings: offices, retail, apartment complexes, and schools. Three phase conductors and one neutral conductor. Line-to-line voltage is 208 volts (serving three-phase HVAC, elevators, and kitchen equipment); line-to-neutral is 120 volts (serving standard receptacles and lighting). The neutral is solidly grounded at the source transformer and the main panel.
480Y/277 — The standard for industrial facilities and large commercial buildings. Line-to-line is 480 volts (motors, large HVAC, process equipment); line-to-neutral is 277 volts (fluorescent and LED lighting ballasts). The higher voltage allows smaller conductor sizes for the same power, reducing copper cost and voltage drop on long feeder runs.
240V Delta — An older three-wire system (no neutral) where each phase measures 240 volts line-to-line. It can serve three-phase motor loads and — with two-pole breakers — single-phase 240-volt loads. No 120-volt capability exists in a pure delta configuration.
240V Delta with 120V Center Tap (High Leg Delta) — A delta winding with a center tap on one coil provides limited 120-volt capability through what is called a lighting tap. Two phases measure 120 volts to neutral (center tap); the third — the high leg or wild leg — measures approximately 208 volts to neutral. This system is common in older North American facilities with predominantly three-phase loads and minimal 120-volt requirements. The 120-volt loading must not exceed 5–10% of the transformer kVA rating.
240V Corner Grounded Delta — One phase conductor is intentionally bonded to ground. The grounded phase measures 0 volts to ground; the other two measure 240 volts to ground. This configuration eliminates the need for a fourth conductor but requires that the grounded phase be clearly and permanently identified throughout the system.
480V Delta (Ungrounded) — A three-wire system with no intentional connection to ground. A ground fault on one phase does not immediately trip overcurrent protection; instead, ground detectors alarm so that maintenance can locate and clear the fault during a scheduled outage. This configuration is used in continuous-process industries where an unplanned shutdown is more costly than running with a single ground fault.
System | Phase-to-Phase | Phase-to-Neutral | Typical Application |
|---|---|---|---|
240/120 Split Phase | 240 V | 120 V | Residential, small commercial |
208Y/120 | 208 V | 120 V | Commercial buildings, apartments |
480Y/277 | 480 V | 277 V | Industrial, large commercial |
240V Delta | 240 V | N/A (no neutral) | Three-phase motor loads |
240V High Leg Delta | 240 V | 120 V / 208 V (high leg) | Older mixed-load facilities |
Accurate voltage measurement is essential for verifying correct installation and troubleshooting. Three measurements matter:
Line-to-Line Voltage — Measured between any two ungrounded phase conductors (A-B, B-C, C-A). This is the system's full voltage — 208 V, 240 V, or 480 V depending on the configuration. On single-phase systems, it is measured across the full secondary winding (X1 to X3 on the transformer).
Line-to-Neutral Voltage — Measured between an ungrounded phase conductor and the neutral. In a 208Y/120 system, this is 120 V. In a 480Y/277 system, this is 277 V. In a split phase system, the two line-to-neutral measurements are each 120 V.
Line-to-Ground Voltage — In a solidly grounded system (where the neutral is bonded to ground at the source transformer or first disconnect), line-to-ground and line-to-neutral measurements are identical. In ungrounded systems (such as an ungrounded delta), line-to-ground readings are unpredictable and are not used for diagnostic purposes.
A common field mistake: measuring only line-to-ground voltages and misidentifying a high leg delta system as a 208Y/120 system because the high leg reads approximately 208 V to ground. Always confirm by measuring line-to-line voltage — a 240 V reading confirms delta; a 208 V reading confirms wye.
Residential Buildings — Split phase 240/120 systems power lighting, receptacles, HVAC, and major appliances. Modern homes typically have a 200-amp service panel with dozens of branch circuits protected by circuit breakers.
Commercial Buildings — 208Y/120 systems serve the mix of single-phase receptacle loads and three-phase mechanical equipment typical of offices, retail stores, restaurants, and hotels. Sub-panels on each floor reduce feeder cable lengths and simplify circuit management.
Industrial Facilities — 480Y/277 systems feed motor control centers, process equipment, and high-bay lighting. Step-down transformers within the facility create 208Y/120 sub-systems for office areas and convenience receptacles.
Public Infrastructure — Schools, hospitals, and government buildings rely on robust low voltage distribution systems for lighting, HVAC, medical equipment, life safety systems, and IT infrastructure. These installations often include backup generators and automatic transfer switches.
Benefits Across All Applications — Properly designed low voltage distribution systems deliver safety (through grounding and overcurrent protection), energy efficiency (through minimized transmission losses and stable voltage), flexibility (scalable to accommodate load growth), and cost-effectiveness (lower installation and maintenance costs compared to medium-voltage alternatives).
What is a low voltage distribution system?
A low voltage distribution system is the electrical infrastructure that receives power from a step-down transformer and delivers it at utilization voltage — typically 600 V and below — to individual loads within a building. It includes the main service panel, circuit breakers, cables, and the grounding system.
What are the most common voltages in low voltage distribution?
In North America, the most common voltages are 120/240 V single-phase (residential), 208Y/120 V three-phase (commercial), and 480Y/277 V three-phase (industrial). Other configurations include 240 V delta and 240/120 V high leg delta.
What is the difference between single-phase and three-phase distribution?
Single-phase delivers power through two or three wires (two line conductors plus neutral) and is sufficient for residential and light commercial loads. Three-phase uses three line conductors (plus optional neutral) and provides higher capacity, more efficient motor operation, and the ability to serve both three-phase and single-phase loads from the same service.
What is a high leg delta system?
A high leg delta system is a 240 V three-phase delta configuration where one winding has a center tap that provides 120 V single-phase power. Two phases measure 120 V to neutral; the third — the high leg — measures approximately 208 V to neutral. It is common in older facilities with predominantly three-phase equipment and limited 120 V needs.
Why is grounding important in low voltage distribution?
Grounding provides a reference point for system voltage, ensures that overcurrent protection devices operate during ground faults, stabilizes voltage during normal operation, and protects personnel from electric shock by limiting the voltage that can appear on exposed metal parts. It is the foundation of electrical safety in any distribution system.
How do you measure voltage in a three-phase system?
Three measurements are standard: line-to-line (between any two phase conductors — determines system type — 208 V = wye, 240 V = delta), line-to-neutral (between a phase and the neutral conductor — indicates utilization voltage for single-phase loads), and line-to-ground (identical to line-to-neutral in solidly grounded systems; unpredictable in ungrounded systems). Always start with line-to-line to correctly identify the system configuration.
Low voltage distribution systems are the final and most visible link in the electrical supply chain — the circuitry that turns grid power into the light, heat, motion, and data processing that define modern life. Understanding the components, configurations, and measurement techniques is essential for anyone who designs, installs, or maintains electrical infrastructure.
The key takeaway is that not all low voltage systems are alike. A 240/120 split phase panel in a home, a 208Y/120 service in an office tower, and a 480Y/277 system in a factory share the same fundamental purpose but differ in voltage levels, grounding arrangements, and the balance of single-phase to three-phase loads. Knowing which configuration you are working with — and verifying it with direct voltage measurements — is the first step toward a safe, reliable, and code-compliant installation.
