In the world of power distribution and transmission, few technologies combine proven reliability with modern performance demands as effectively as the liquid immersed transformer — also widely known as the liquid filled transformer, oil-filled transformer, or wet transformer. These devices use specially engineered dielectric liquids to simultaneously cool and insulate their internal components, achieving levels of efficiency, overload tolerance, and service life that air-cooled alternatives cannot match at higher power levels. From utility substations to renewable energy installations, liquid filled transformers remain the dominant technology for medium- and high-voltage applications. This article explains what a liquid immersed transformer is, how it works, its key components, the types of cooling fluids available, and how it compares with dry-type transformers.
A liquid immersed transformer (or liquid filled transformer) is an electrical transformer in which the magnetic core and windings are completely submerged in a dielectric fluid — typically mineral oil, natural ester, or synthetic ester — contained within a sealed steel tank. The fluid is not a passive filling; it is the defining element of the design, performing three essential functions simultaneously:
Electrical Insulation: The insulating fluid provides high dielectric strength that prevents electrical breakdown between energized windings, between windings and the core, and between live parts and the grounded tank. It impregnates the cellulose paper and pressboard insulation around the conductors, filling microscopic voids and suppressing partial discharge.
Thermal Cooling: During operation, copper losses in the windings and core losses in the magnetic circuit generate substantial heat. The cooling fluid absorbs this thermal energy and transfers it to the tank walls and external radiators through natural convection or forced circulation, keeping internal temperatures within safe limits.
Environmental Protection: The insulating fluid protects the coils and core from ambient moisture, dust, and oxidation. Its low freezing point prevents cold-weather issues, and its resistance to water emulsion prevents internal sludge formation and corrosion of metallic components.
Liquid immersed transformers are available across the full spectrum of voltage classes — from low-voltage industrial units below 1 kV to ultra-high-voltage power transformers exceeding 765 kV — and at power ratings from a few kVA to over 1,000 MVA. Both single-phase and three-phase configurations are common.
The operating principle of a liquid filled transformer is electromagnetic induction, discovered by Michael Faraday in 1831 and refined over nearly two centuries of engineering development. The process can be understood through the following steps:
Electromagnetic Induction When an alternating current (AC) flows through the primary winding, it generates a time-varying magnetic flux in the core. This flux links with the secondary winding, inducing a voltage in that winding proportional to the turns ratio between the primary and secondary windings. If the secondary has more turns than the primary, the voltage is stepped up; if fewer turns, it is stepped down. The frequency of the AC remains unchanged throughout the process.
Heat Generation This transformation is not perfectly efficient. Copper losses (I²R) in the winding conductors and core losses (hysteresis and eddy currents) in the magnetic material generate heat proportional to the load current and core design. Without effective cooling, this heat would rapidly raise internal temperatures, degrading insulation and shortening the transformer's service life.
Heat Dissipation via Cooling Fluid This is where the liquid filled transformer distinguishes itself from dry-type transformers. The insulating fluid surrounding the core and windings absorbs the generated heat through direct contact. Because liquids have far higher thermal capacity and thermal conductivity than air, the fluid can absorb and transport much more heat per unit volume.
The heated fluid becomes less dense and rises naturally through the winding ducts and the tank interior — a process called natural convection. When it reaches the cooler tank walls and radiator surfaces, the fluid gives up its heat to the external environment (ambient air or, in large units, a water heat exchanger), becomes denser, and sinks back down to repeat the cycle.
In larger power transformers where passive convection is insufficient, the circulation is enhanced with electric oil pumps (Oil Forced) and the external cooling is boosted with fans (Air Forced) or water-cooled heat exchangers. These systems are classified under standard codes:
ONAN (Oil Natural Air Natural): Natural oil circulation, natural air cooling — the simplest and most common method for distribution transformers up to approximately 25 MVA. ONAF (Oil Natural Air Forced): Natural oil circulation with fans forcing air over radiators — adds 30–40% cooling capacity and is common in medium to large units. OFAF (Oil Forced Air Forced): Electric pumps circulate the oil and fans force air — used for large power transformers in the 60–200 MVA range. OFWF (Oil Forced Water Forced): Oil pumped through water-cooled heat exchangers — reserved for the largest units (200 MVA and above), indoor substations, and offshore installations.
Load Cycle and Thermal Behavior The transformer's temperature varies with load. Under normal conditions, the top-oil temperature should not exceed approximately 85 °C for mineral oil-filled units (105 °C for the winding hot spot). The cooling system adapts to changing conditions — ONAN/ONAF dual-rated transformers, for example, operate at a base rating under passive cooling and automatically engage fans at a higher rating when winding temperature exceeds a preset threshold.
A liquid filled transformer integrates several essential components, each serving a specific function:
Magnetic Core The core is constructed from cold-rolled, grain-oriented silicon steel laminations stacked and clamped together to form a low-reluctance magnetic path. The quality of the core material and the precision of lamination directly affect no-load losses and overall efficiency.
Windings The primary and secondary windings — typically made of copper or aluminum conductors — are wound around the core limbs. The windings are insulated with high-grade cellulose paper or pressboard, which is impregnated with the insulating fluid to enhance dielectric strength and thermal performance.
Insulating Fluid The dielectric liquid fills the tank completely, submerging the core and windings. This fluid — most commonly mineral oil but increasingly natural or synthetic ester — serves as both the electrical insulator and the thermal coolant.
Tank The steel tank houses all internal components. It is welded and sealed to prevent fluid leakage and air ingress. In larger units, the tank is equipped with a conservator (expansion tank) mounted on top to accommodate the thermal expansion and contraction of the insulating fluid.
Radiators Radiators are finned panels attached to the tank that maximize the surface area for heat exchange between the hot insulating fluid and the surrounding air. They are integral to the cooling system and come in various configurations — from simple corrugated tank walls in small transformers to multi-panel radiator banks with forced-air fans in large units.
Bushings Bushings are insulated terminals that allow electrical conductors to pass safely through the grounded tank wall. They provide the necessary dielectric interface between the oil-filled interior and the external air. Bushings for higher voltages are themselves oil- or resin-filled.
Buchholz Relay The Buchholz relay is a protective device installed in the pipe connecting the main tank to the conservator. It detects internal faults by sensing gas accumulation (slow-developing faults) or sudden oil surges (severe faults) and triggers alarms or trips to prevent catastrophic failure.
Pressure Relief Valve The pressure relief valve is a safety mechanism that releases excess internal pressure during a major internal fault, preventing the tank from rupturing. It is a mandatory component under international standards.
The choice of cooling fluid is one of the most important decisions when specifying a liquid immersed transformer, as it directly affects performance, fire safety, environmental compliance, and lifecycle cost:
Mineral Oil Mineral oil — refined from petroleum — is the most widely used insulating fluid. It provides excellent dielectric properties, good thermal conductivity, and proven reliability at the lowest cost. Modern mineral oil formulations include antioxidant additives for improved oxidation stability. Its primary drawbacks are a relatively low fire point (approximately 150–170 °C) and limited biodegradability.
Natural Ester (Vegetable Oil) Derived from renewable sources such as soybean or sunflower oil, natural ester fluids offer three compelling advantages: a fire point above 300 °C (far higher than mineral oil), full biodegradability, and excellent moisture tolerance. Natural esters also chemically interact with cellulose insulation to slow the aging process, potentially extending transformer life. These fluids are increasingly specified for renewable energy projects, indoor installations, and environmentally sensitive locations.
Synthetic Ester Synthetic ester fluids are chemically engineered to deliver superior thermal stability, high dielectric strength, and fire resistance comparable to natural esters. While more expensive, they perform reliably under extreme conditions and are the preferred choice for offshore platforms, data centers, and underground substations.
Silicone Oil Silicone oil offers exceptional thermal stability and the highest level of fire resistance. It is used in specialized fire-critical installations such as tunnels, densely populated urban areas, and indoor vaults where fire safety regulations are stringent. Its higher cost limits its use to niche applications.
Fluid Type | Dielectric Strength | Fire Point | Biodegradable | Relative Cost |
|---|---|---|---|---|
Mineral Oil | Excellent (30+ kV) | ~150–170 °C | No | Baseline (1×) |
Natural Ester | Excellent (35+ kV) | >300 °C | Yes | 3–5× |
Synthetic Ester | Excellent (40+ kV) | >300 °C | Yes | 5–8× |
Silicone Oil | Good (25+ kV) | >300 °C | No | 8–10× |

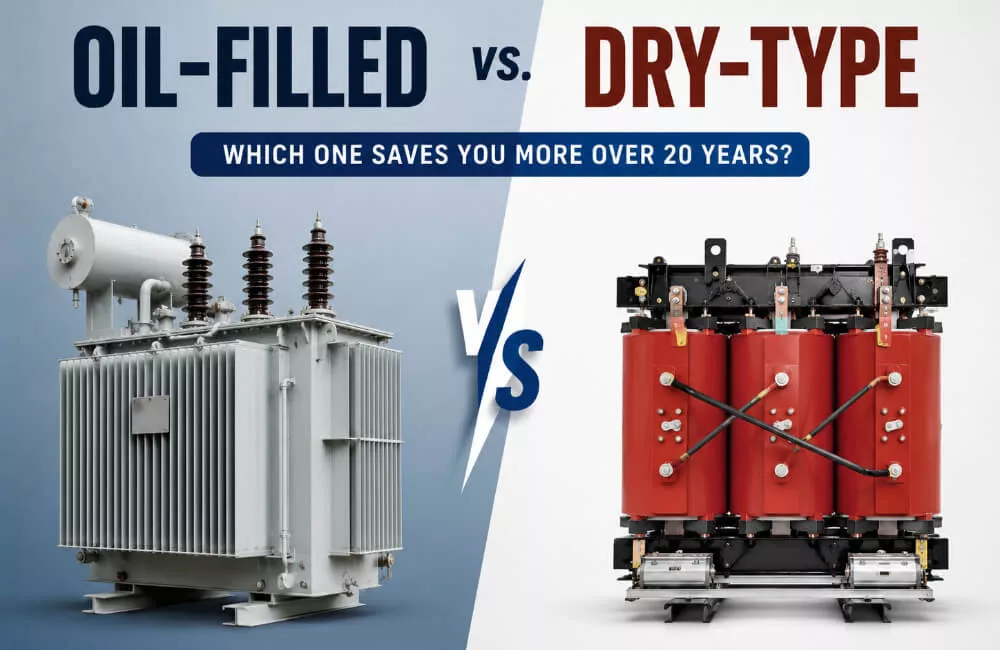

A frequent question from buyers and engineers is whether to choose a liquid filled transformer or a dry-type transformer. Both serve the same fundamental purpose but differ significantly in design and application suitability:
Comparison Item | Liquid Filled Transformer | Dry-Type Transformer |
|---|---|---|
Insulation and Cooling | Insulating fluid (oil or ester) | Air or solid cast resin |
Voltage Capability | Up to 765 kV+ | Typically below 36 kV |
Power Rating Range | 50 kVA–1,000+ MVA | Up to ~25 MVA (practical limit) |
Cooling Efficiency | Excellent; high overload capacity | Limited; air-dependent |
Service Life | 25–35+ years | 20–30 years |
Installation | Outdoor preferred; indoor with vault | Indoor preferred; no vault required |
Fire Safety | Moderate (mineral oil); high (ester) | Very high; no combustible fluids |
Maintenance | Periodic oil testing and filtration | Minimal; no fluid handling |
Initial Cost | Lower at medium/high ratings | Higher at equivalent ratings |
Environmental Risk | Oil leakage; biodegradable options | No leakage; environmentally safer |
Size and Weight | More compact for same rating | Larger; air insulation needs clearance |
Liquid filled transformers are the superior choice for outdoor, high-voltage, and high-capacity applications where efficiency, overload performance, and longevity are priorities. Dry-type transformers excel indoors where fire safety is critical and maintenance access is limited.
Liquid immersed transformers offer a unique combination of benefits:
Superior Cooling and Efficiency The high thermal capacity of the insulating fluid enables more effective heat dissipation than air, supporting higher power ratings and better efficiency — typically exceeding 99% for larger units. This superior thermal management also enables handling of temporary overloads without immediate insulation damage.
Long Service Life A properly maintained liquid filled transformer can operate reliably for 25 to 35 years or more. The fluid protects internal components from moisture, oxidation, and thermal stress, significantly slowing insulation aging.
Lower Total Cost of Ownership Although liquid filled transformers require periodic oil testing and maintenance, their lower initial cost (at medium and high ratings), higher efficiency, and longer service life combine to produce a lower total cost of ownership (TCO) compared with dry-type transformers in most outdoor and high-power applications.
Environmental Sustainability Modern liquid immersed transformers — particularly those using natural ester or synthetic ester fluids — have a lower carbon footprint over their lifecycle than dry-type transformers, as verified by Lifecycle Assessment (LCA) studies. The use phase, which accounts for approximately 90% of lifecycle environmental impact, favors the higher efficiency of liquid filled designs.
Outdoor Durability Liquid filled transformers are inherently suited to outdoor installation. They require no additional protective enclosure for weather protection, perform reliably under extreme temperatures and high humidity, and are less sensitive to flooding and storm damage than enclosed dry-type units.
Lower Noise The insulating fluid dampens core vibrations (magnetostriction), resulting in lower acoustic emissions compared with equivalent dry-type transformers — an important consideration for installations near residential or office areas.
Liquid immersed transformers serve virtually every segment of the electrical power industry:
Utility Power Distribution Substation and distribution transformers — both single-phase and three-phase — form the backbone of national and regional power grids. They step down transmission voltage to levels suitable for residential, commercial, and light industrial consumers. Mobile substations using liquid filled transformers provide temporary power during emergencies or grid maintenance.
Industrial Facilities Heavy industries — steel mills, chemical plants, refineries, mining operations — depend on liquid filled transformers for continuous, high-load power supply. The units' overload capability, robust construction, and proven reliability suit these demanding environments perfectly.
Renewable Energy Systems Wind farm step-up transformers, solar PV collector substation units, and hydroelectric power transformers all increasingly use liquid immersed transformers filled with biodegradable natural ester fluids. These installations benefit from outdoor durability, high efficiency, and compliance with environmental regulations.
Large Commercial and Infrastructure Projects Airports, large shopping centers, data centers, and transportation hubs all use liquid filled transformers for primary power supply, often in combination with dry-type transformers for downstream indoor distribution.
Specialized Environments Offshore oil and gas platforms, marine vessels, and remote mining operations use specially engineered liquid filled transformers designed to withstand salt spray, vibration, extreme temperatures, and confined installation spaces.
Q1: What is the difference between a liquid immersed transformer and a liquid filled transformer? There is no technical difference — the terms are synonymous and used interchangeably in the industry. Both describe an electrical transformer in which the core and windings are submerged in a dielectric liquid (typically mineral oil or ester) for insulation and cooling. "Liquid immersed" emphasizes the submersion aspect; "liquid filled" emphasizes the tank being filled with fluid.
Q2: How does the cooling fluid circulate inside the transformer? In most distribution transformers, the fluid circulates through natural convection: hot fluid rises, moves to the cooler tank walls and radiators, gives up its heat, and sinks back. In larger power transformers, electric pumps force the fluid circulation, and fans or water heat exchangers enhance external cooling.
Q3: Which cooling fluid is best for environmentally sensitive areas? Natural ester (vegetable oil-based) fluids are the preferred choice for environmentally sensitive installations. They are fully biodegradable, derived from renewable sources, and have a fire point above 300 °C, providing both environmental and fire safety benefits.
Q4: How long does a liquid filled transformer last? With proper maintenance, a liquid filled transformer typically lasts 25 to 35 years, and many units continue to operate reliably beyond 40 years. The insulating fluid protects internal components from oxidation and moisture, the primary drivers of insulation aging.
Q5: Are liquid filled transformers safe for indoor installation? Yes, but they require a fire-rated vault or room, oil containment provisions, automatic fire suppression, and adequate ventilation. Using natural ester or synthetic ester fluids (with fire points above 300 °C) significantly improves indoor fire safety.
Q6: What standards apply to liquid immersed transformer design? The primary international standards are IEC 60076 (Power Transformers) and IEEE C57 (for North America). These cover design, testing, performance, and safety requirements. Additional standards may apply for specific applications such as offshore, marine, or renewable energy installations.
The liquid immersed transformer — also referred to as the liquid filled transformer, oil-filled transformer, or wet transformer — is the foundation of modern electrical infrastructure. Its unique combination of a magnetic core, precision windings, and specially formulated insulating fluid delivers unmatched cooling performance, electrical insulation, and long-term reliability across the full spectrum of voltage classes and power ratings.
Understanding how these transformers work — from the fundamental principle of electromagnetic induction to the sophisticated cooling systems that manage thermal loads — is essential for anyone involved in specifying, purchasing, operating, or maintaining transformer assets. With advances in biodegradable fluids, digital monitoring, and sustainable design, the liquid immersed transformer continues to evolve, remaining the most competitive and sustainable choice for power systems worldwide.
