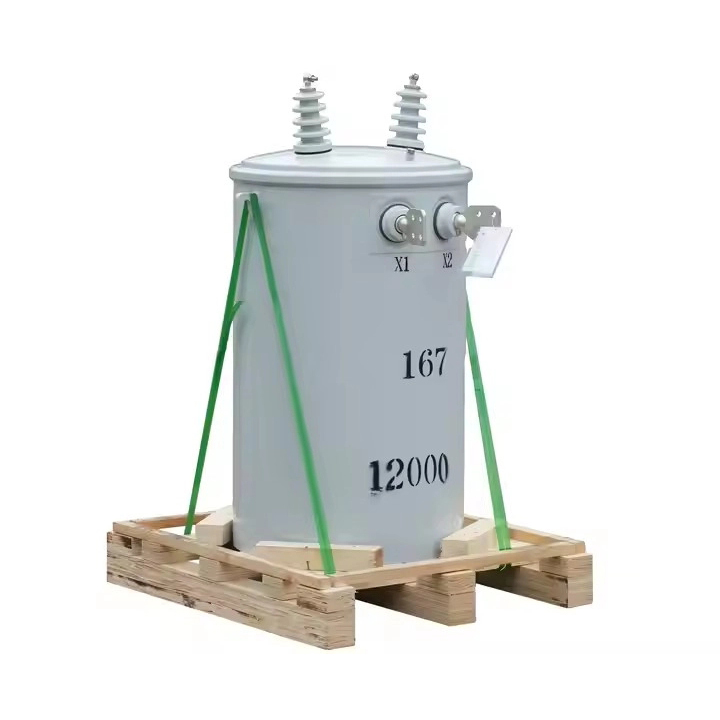

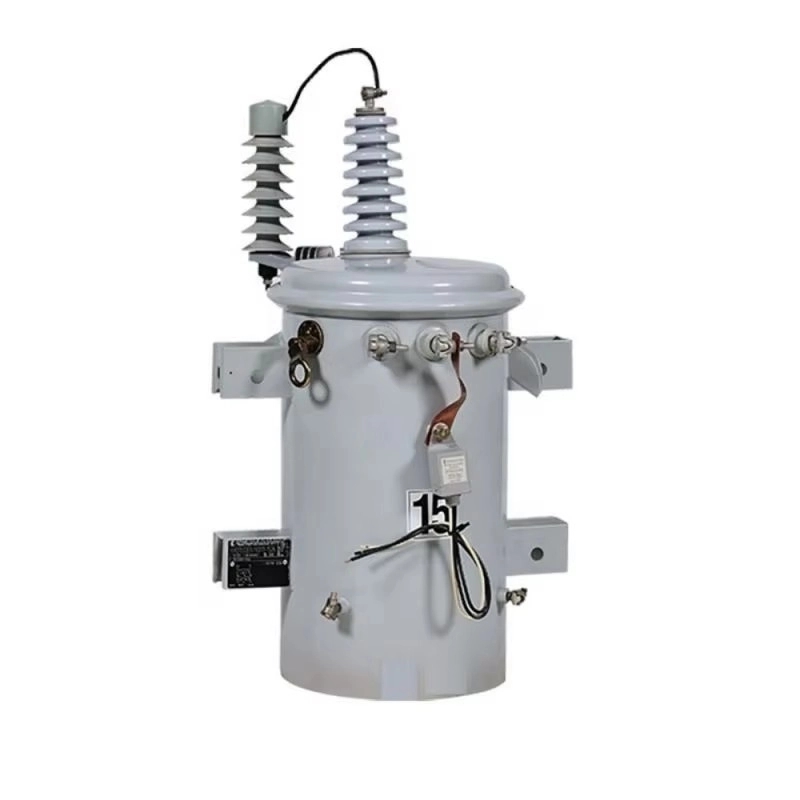

Outdoor-Ready Power Solution for Global Grid Networks
Tailored for the world’s high-demand regions (Philippines, US, UK, Southeast Asia & Africa) — our transformers combine local standard compliance, rugged design, and flexible customization to match your grid needs.
Market-Matched Compliance
US/Canada: ANSI/IEEE C57 + UL/CSA certified, meets DOE 2016 efficiency norms
EU/SE Asia: IEC 60076 + CE marked, IP54 weatherproof for tropical/humid areas
Africa: Cost-effective oil-immersed models, dust/moisture-resistant for rural deployments
Customizable for Your Grid
Capacity: 5kVA – 200kVA; Voltage: 11kV/0.4kV, 13.8kV/0.24kV (or local grid specs)

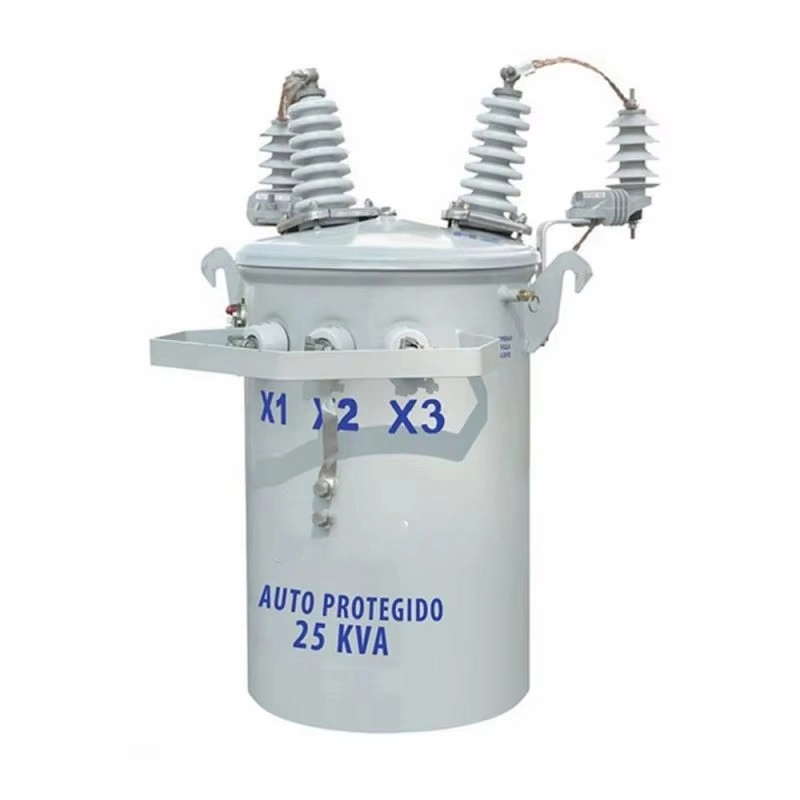

Options: Copper/aluminum windings, mineral/biodegradable oil, CSP self-protection module
One-Stop Procurement
Bundle with matching accessories (fuses, insulators, mounting brackets) — cut multi-supplier costs & sync delivery.
Parameter | Details |
Capacity | 50kVA (customizable) |
Voltage Ratio | 11kV/0.4kV |
Protection Class | IP54 |
Cooling Method | Oil-Immersed (ONAN) |
Efficiency | ≥99% (meets DOE/IEC) |
Service Life | 25+ years |

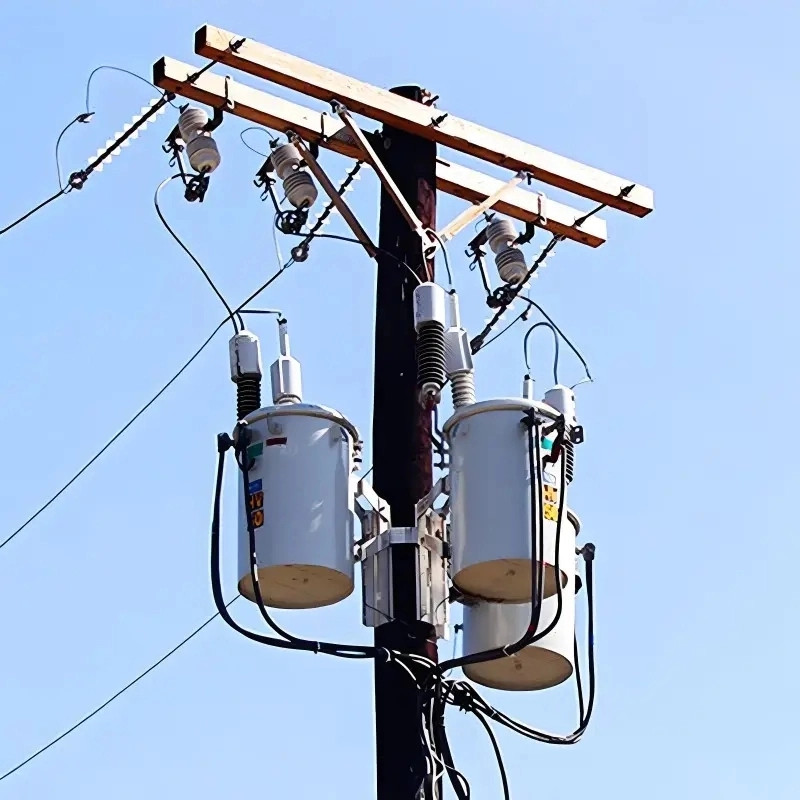

Rural/urban grid expansion (Philippines/Vietnam)
Suburban power distribution (US/UK)
Remote area electrification (Africa/Guyana)
Street lighting & small industrial loads
Fast Turnaround: 7-day delivery for standard models; stock for urgent orders
Global Support: 24h technical assistance + 5-year warranty
Localized Solutions: We adapt to your market’s standards (voltage, frequency, certification)
Request a custom quote today — we’ll match the transformer to your local grid specs. Free samples available for qualified buyers!
Overview
The ZW8-12/630(1250)-20(25) Intelligent Boundary High Voltage Circuit Breaker is a cutting-edge outdoor power distribution device designed for 12kV, three-phase, 50Hz systems. It features vacuum interrupters and advanced control systems, making it ideal for modern power networks 。
Key Features
Vacuum Interrupters: Achieve 20kA breaking capacity within 0.06s, certified by IEC 62271-100
Smart Control: Integrated DTU with 4G/LoRaWAN enables real-time load monitoring and remote switching via SCADA
Adaptive Protection: Auto-isolates permanent faults while tolerating transient surges, reducing false trips by 70%
Durable Design: Stainless-steel housing (IP66) withstands extreme temperatures from -40℃ to +75℃
Pre-configured Interfaces: Support solar/storage microgrid synchronization and optional backup power for 48h operation during blackouts
Applications
Ideal for urban and rural power distribution networks, industrial plants, commercial complexes, and renewable energy projects
Key Benefits
Enhanced safety with zero fire risk and no toxic emissions
Efficient power distribution with minimal energy loss
Long service life and reduced maintenance costs
Suitable for harsh outdoor environments and high load conditions
