American-style
Future Electric
Product Introduction

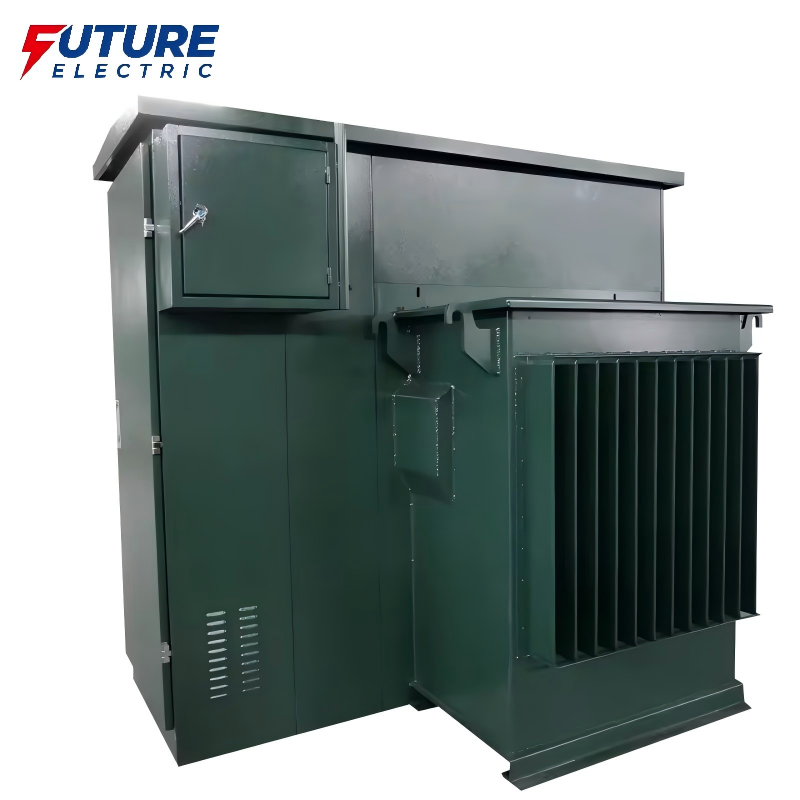

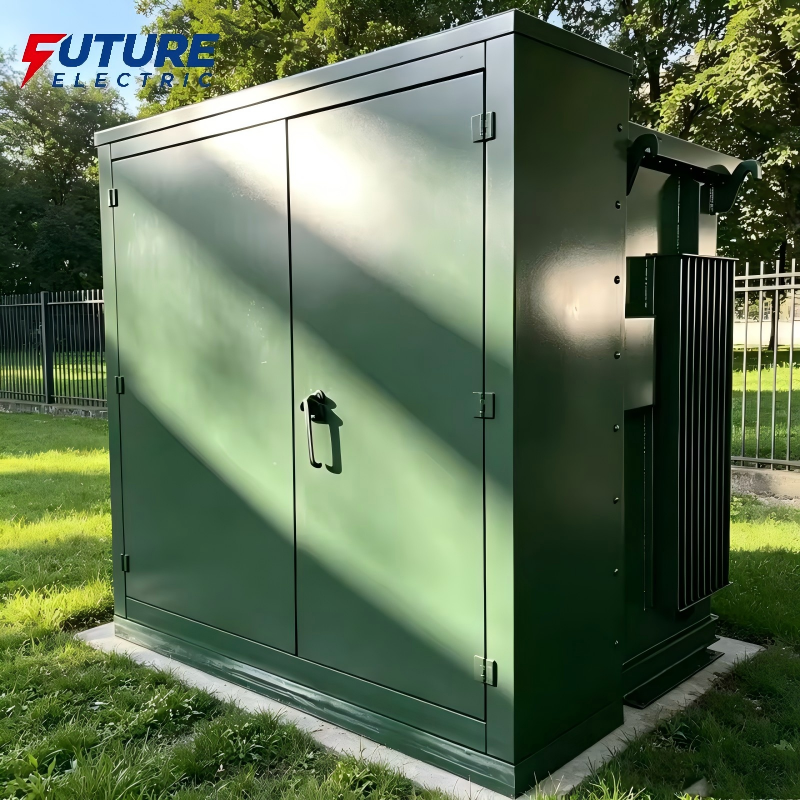

The Pad Mounted Transformer is a compact, integrated power distribution unit specifically designed for the ANSI standard market. It incorporates transformers, high-voltage switches, fuses and other components within a completely sealed enclosure. Compared with traditional substations, it reduces the floor space by 70% and installation time by 80%, which perfectly meets the needs of global outdoor power distribution. Designed to ANSI/IEEE standards, it is extremely safe and maintenance free to operate, and is the worldwide preferred choice for outdoor power distribution.
Technical data
Item | Unit | Parameter | Remark |
High voltage side | kV | 10 | Scalable Customization |
Low-pressure side | kV | 0.4 | |
Rated frequency | Hz | 50/60 | |
Rated capacity | kVA | 100-1250 | customizable |
Voltage regulation range | 2x2.5% | ||
Ambient temperature | ℃ | -45-40 |
Applications
1. North American Substation Distribution
Distribution of power for residential and commercial applications in suburban areas of the United States and Canada based on ANSI/IEEE standards.
Features:Meets DOE energy efficiency standards, Requires no maintenance, Fully compatible with North American power grid
2. Expansion of African and South American Power Grids
Rapidly deploy power grid expansion in Africa, Chile, Brazil and other South American areas.
Features: Easy to install, quick to put into operation, quickly enhances the power supply ability of power grid.
3. Business Centers of South East Asia
High-load-density business centers in Southeast Asia, where land prices are high.
Features: Compact structure, small footprint, saving land cost.
4. Integration of new energy power plants into the grid
Grid connection and distribution of new energy power plants such as photovoltaic and wind energy
Features: High reliability, low loss, guarantee the quality of grid connection.
