With the expansion of the power grid, the advancement of industry, the development of artificial intelligence, and the wide application of new energy sources, transformers, as the key equipment of the entire power system, have received increasing attention. Currently, there are many types of transformers and their prices vary greatly. How to select the appropriate transformer for the local power system and how to estimate the price of the transformer?

The key factors that determine the price of an electrical transformer are as follows:

Transformer Selection

First, determine the application scenarios of the transformer.  Here are the commonly used transformer application scenarios and voltage levels. You can select an application scenario or a similar one.

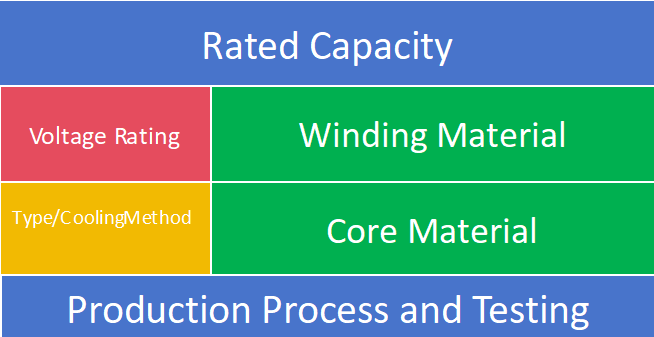

The Factors Determining the Price of Transformer

 Rated Capacity: Larger capacity transformers require far more raw materials and larger structural size, leading to a significant increase in cost. The power rating (kVA/MVA) has the strongest correlation with the baseline price.

Voltage Rating: Higher voltage transformers need more advanced insulation systems, larger safety clearances, and stricter manufacturing standards, which substantially push up the cost compared to low-voltage models.

Winding Material: Copper windings are much more expensive than aluminum alternatives, though they offer better conductivity and lower long-term losses.

Currently, the copper price fluctuates significantly, which is one of the main reasons for the price fluctuations of transformers.

Core Material: High-grade electrical silicon steel (for cores) with low loss is far more costly than standard grades.

Other materials: Transformer oil, insulation materials, and structural steel for tanks also contribute, and their global market price fluctuations directly affect transformer pricing.

Energy Efficiency Rating

Higher efficiency transformers come with a higher upfront cost. For example, Level 1 (top-tier) efficiency models are usually 20%~30% more expensive than Level 2 models. This is because they require premium materials to minimize no-load and load losses, though they can save significant energy costs during long-term operation.

Transformer Type & Cooling Method

Dry-type transformers are generally more expensive than oil-immersed ones of the same capacity, due to their advanced insulation and fire-safe design.

Advanced cooling systems (such as ONAF, OFWF) for large units also add extra design and installation costs compared to basic natural cooling (ONAN).

Customization & Additional Requirements

Custom features: Tap changers, online monitoring systems, special enclosures, or protection accessories will increase the price.

Compliance & Certification: Meeting international standards (IEC, ANSI, etc.) or special industry certifications requires additional testing and validation, which adds to the total cost.
