Modern electrical infrastructure depends on reliable voltage transformation at every stage — from generation to end-user consumption. Among the various equipment solutions available today, the oil-immersed transformer remains the most widely deployed technology in power grids worldwide. According to industry data, oil-immersed transformers account for over 70% of all power transformer installations globally, serving substation, transmission, and distribution network applications across voltage classes from 6.6 kV to well beyond 765 kV. This article provides a comprehensive overview of what an oil-immersed transformer is, how it works, its key types, cooling methods, and how it compares with alternative technologies.

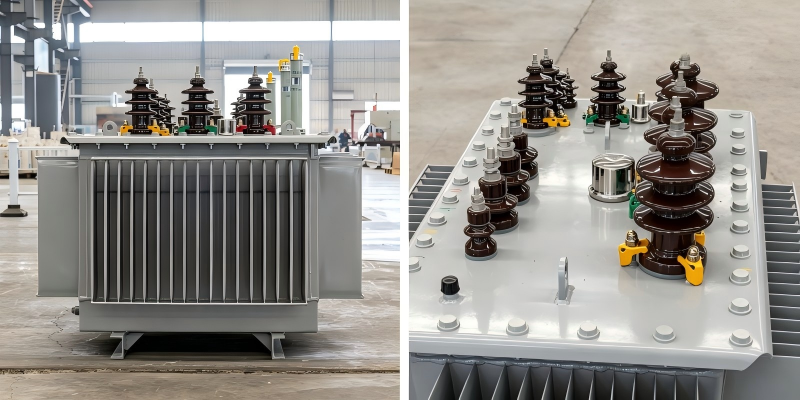

An oil-immersed transformer is a type of electrical transformer in which the magnetic core and windings are fully submerged in insulating oil (also called transformer oil) inside a sealed steel tank. The insulating oil serves two critical functions simultaneously: it acts as a dielectric medium that provides electrical insulation between energized components and the grounded tank, and it functions as a cooling medium that absorbs and transfers heat away from the core and windings during operation.
This dual-purpose design makes the oil-immersed transformer particularly suitable for medium- to ultra-high-voltage applications. Compared with dry-type transformers, oil-immersed transformers offer higher cooling efficiency, greater overload capacity, longer service life (often exceeding 30–40 years), and a more compact footprint for the same power rating. These advantages explain why oil-immersed transformers dominate both power transformer and distribution transformer roles in transmission and distribution systems globally.
Understanding the structure of an oil-immersed transformer requires familiarity with its core components. Each part plays a specific role in ensuring reliable operation, insulation integrity, and effective cooling.
Magnetic Core The magnetic core is the heart of every transformer. Constructed from high-quality cold-rolled grain-oriented silicon steel laminations, the core provides a low-reluctance path for magnetic flux while minimizing hysteresis and eddy current losses. In modern oil-immersed transformers, core-type and shell-type constructions are the two principal designs, with core-type dominating high-voltage applications due to better cooling access and lower core losses.
Windings Windings-typically made of copper or aluminum conductors — are wrapped around the magnetic core. The high-voltage (HV) and low-voltage (LV) windings are electrically isolated from each other by layers of high-grade insulating paper or pressboard, all of which are impregnated with transformer oil for enhanced dielectric strength. Proper winding design ensures efficient voltage transformation while withstanding mechanical forces during short-circuit events.
Insulating Oil Mineral oil is the most common insulating oil used in oil-immersed transformers due to its excellent dielectric properties, thermal stability, and cost-effectiveness. In recent years, natural ester oil and synthetic oils have emerged as alternatives, particularly in environmentally sensitive or fire-critical installations. Regardless of type, the oil must maintain its dielectric strength, low moisture content, and chemical stability to ensure long-term performance.
Tank The tank is a welded steel enclosure that houses the core, windings, and insulating oil. It provides mechanical protection and structural support for all internal components. In larger units, the tank is equipped with a conservator tank mounted on top to accommodate oil expansion and contraction during thermal cycling.
Conservator Tank A conservator is an auxiliary oil expansion tank connected to the main tank via a pipe. As the transformer heats up during operation, the insulating oil expands and rises into the conservator; as it cools, the oil contracts and flows back. The conservator system includes a silica gel breather that filters moisture from incoming air, preventing oil degradation and preserving dielectric strength.
Bushings Bushings are insulated terminals that allow electrical conductors to pass through the grounded tank wall safely. They provide the necessary insulation and mechanical support for connecting external cables or overhead lines to the internal windings.
Radiators Radiators are finned panels attached to the tank that dissipate heat from the circulating insulating oil to the surrounding air. They are a fundamental component of the cooling system and are essential for maintaining safe operating temperatures.
Buchholz Relay The Buchholz relay is a protective device installed in the pipe connecting the main tank to the conservator. It detects internal faults by sensing gas accumulation or sudden oil surges, triggering an alarm or tripping the transformer to prevent catastrophic failure. This device is a standard safety feature in most oil-immersed transformers above approximately 500 kVA.
Pressure Relief Valve The pressure relief valve is a safety mechanism that releases excess internal pressure in the event of a major internal fault. It prevents the tank from rupturing and is a mandatory component under IEC 60076 and IEEE C57 standards.
The operating principle of an oil-immersed transformer is based on Faraday's law of electromagnetic induction. When an alternating current flows through the primary winding, it generates a time-varying magnetic flux in the magnetic core. This flux links with the secondary winding, inducing a voltage proportional to the turns ratio between the primary and secondary windings.
During this process, electrical losses — primarily copper losses (I²R) in the windings and core losses in the magnetic core — generate substantial heat. The insulating oil surrounding the core and windings absorbs this heat and circulates through the tank and radiators via natural convection (or forced circulation in larger units). The heat is then dissipated to the ambient environment, keeping the internal temperature within safe limits.
In substation and grid applications, oil-immersed transformers often operate with online monitoring systems such as dissolved gas analysis (DGA), thermal sensors, and moisture sensors to continuously track insulation health and thermal performance. This enables predictive maintenance strategies and reduces the risk of unplanned outages.
Oil-immersed transformers are classified along several dimensions — by application, phase configuration, oil preservation method, and cooling method. Understanding these categories helps engineers and buyers select the right unit for a given installation.
By Application
Power Transformer: Designed for high-voltage transmission networks (typically 132 kV and above), power transformers handle bulk power transfer between generation plants and substation facilities. They operate at ratings from tens to over 1,000 MVA and use advanced cooling methods such as ONAF, OFAF, or OFWF.
Distribution Transformer: Installed closer to end users, distribution transformers step down medium voltage (typically 6.6–33 kV) to usable low voltage (e.g., 400/230 V). They are compact, often ONAN-cooled, and widely deployed in residential, commercial, and light industrial areas. Pole-mounted and pad-mounted variants are common in overhead and underground distribution networks.
Three-Phase Transformer: The dominant choice in grid-level and industrial applications, the three-phase transformer uses three sets of windings on a common magnetic core to transform three-phase power efficiently. It offers a compact footprint and lower cost compared with three separate single-phase transformers.
Single-Phase Transformer: Used primarily in rural or low-load areas, single-phase transformers serve individual residential or agricultural loads. In some grid configurations, three single-phase transformers are banked together to form a three-phase system, providing operational flexibility and easier spare-parts management.
By Oil Preservation Method
Conservator-Type Transformer: Equipped with a conservator tank and silica gel breather, this is the most common design for medium and large oil-immersed transformers. It accommodates oil expansion, minimizes oil-to-air contact, and simplifies maintenance tasks such as oil sampling and level checks.
Hermetically Sealed Transformer: In this design, the tank is fully welded and sealed, with no external air contact. Oil expansion is absorbed by the tank's flexible walls or an internal nitrogen cushion. Hermetically sealed units require minimal maintenance and are ideal for compact distribution transformers in urban or renewable energy installations.
Cooling is one of the most important design considerations for any oil-immersed transformer. The internationally recognized cooling classification uses a four-letter code system defined by IEC 60076, where the first two letters describe the internal insulating oil movement and the last two describe the external cooling medium:
Cooling Method | Internal Oil Flow | External Medium | Typical Power Range | Common Application |
|---|---|---|---|---|
ONAN | Natural convection | Natural air | Up to 25 MVA | Distribution transformers, rural substations |
ONAF | Natural convection | Forced air (fans) | 25–60 MVA | Industrial substations, urban grids |
OFAF | Forced oil (pumps) | Forced air (fans) | 60–200 MVA | Large grid transformers |
OFWF | Forced oil (pumps) | Forced water | 200–1,000+ MVA | Power plants, offshore, nuclear |
ONAN is the baseline cooling method, relying entirely on natural convection and passive radiators. ONAF enhances cooling by adding thermostatically controlled fans that activate during peak load periods, boosting the unit's capacity by approximately 30–40%. OFAF and OFWF are reserved for large power transformers where passive cooling alone is insufficient. Many oil-immersed transformers use dual-rated designs (e.g., ONAN/ONAF), allowing flexible capacity depending on cooling mode.
The choice of cooling method directly affects the transformer's load rating, temperature rise limits, and overall service life. Proper cooling ensures insulation longevity and consistent voltage regulation under varying load conditions.
A common question among buyers and engineers is whether to choose an oil-immersed transformer or a dry-type transformer. Each technology has distinct strengths depending on the installation environment, safety requirements, and operating conditions.
Comparison Item | Oil-Immersed Transformer | Dry-Type Transformer |
|---|---|---|
Cooling Medium | Mineral oil / natural ester oil / synthetic oil | Air or cast resin |
Cooling Efficiency | Excellent; supports high overload | Limited; depends on air circulation |
Voltage Range | Up to 765 kV+ | Typically below 36 kV |
Capacity Range | 50 kVA – 1,000+ MVA | Up to ~25 MVA (practical limit) |
Installation | Outdoor, substations, industrial plants | Indoor, commercial buildings, tunnels |
Maintenance | Periodic oil testing and filtration | Minimal; no oil handling |
Service Life | 30–40+ years | 20–30 years |
Fire Safety | Fire risk with mineral oil; ester oil improves safety | High; no combustible fluids |
Footprint | More compact for same rating | Bulkier; air insulation requires larger clearance |
Initial Cost | Lower at high capacities | Higher at equivalent ratings |
Oil-immersed transformers are the preferred choice for outdoor, high-voltage, and high-capacity applications where cooling efficiency and long-term reliability are paramount. Dry-type transformers are better suited for indoor, fire-sensitive, or space-constrained environments where oil leakage poses unacceptable risk.
Proper maintenance is essential for maximizing the service life and reliability of oil-immersed transformers. Key practices include:
Regular Visual Inspection Periodically inspect the tank, bushings, radiators, and gaskets for signs of oil leakage, corrosion, or physical damage. Check the silica gel breather in conservator-type units — saturated desiccant must be replaced to maintain proper moisture protection.
Oil Testing and Analysis Routine insulating oil sampling and laboratory testing are critical. Tests typically cover dielectric strength, moisture content, acidity, and dissolved gas analysis (DGA). DGA detects early signs of internal arcing, overheating, or insulation breakdown by identifying fault gases dissolved in the oil.
Temperature Monitoring Monitor winding and oil temperatures using embedded thermal sensors. Most oil-immersed transformers are designed for a maximum oil temperature of approximately 85 °C under continuous operation. Exceeding this threshold accelerates oil degradation and insulation aging.
Pressure Relief and Protection Devices Verify that the pressure relief valve and Buchholz relay are functional and free from obstruction. These protective devices are the last line of defense against internal faults and should be tested periodically.
Fire Safety Mineral oil is flammable, so oil-immersed transformers installed indoors or near populated areas require fire barriers, bund walls, or automatic fire suppression systems. Where fire risk is a primary concern, natural ester oil (with a fire point above 300 °C) offers a significantly safer alternative to conventional mineral oil.
Oil-immersed transformers serve a wide range of applications across the electrical industry:
Power Transmission and Substations High-voltage power transformers — often rated at 60 MVA and above — are the backbone of national and regional transmission grids. They step up generation voltage for long-distance transmission and step it down at receiving-end substation facilities.
Distribution Networks Distribution transformers — typically 50 kVA to 5 MVA — deliver low-voltage power to residential neighborhoods, commercial zones, and agricultural installations. Both pole-mounted and pad-mounted configurations are standard.
Industrial Facilities Heavy industries such as steel mills, chemical plants, and mining operations rely on oil-immersed transformers designed for continuous duty, high short-circuit withstand capability, and robust mechanical construction.
Renewable Energy Integration Solar PV farms and wind turbine collection systems increasingly use compact, hermetically sealed oil-immersed transformers filled with natural ester oil to connect generation sources to the grid. These units are engineered for high harmonic tolerance and variable load profiles.
Infrastructure and Transportation Airports, data centers, metro rail systems, and other critical infrastructure depend on oil-immersed transformers for reliable power supply, often with smart monitoring features integrated into SCADA and building management systems.
Q1: What is the difference between an oil-immersed transformer and a dry-type transformer? The primary difference lies in the cooling and insulation medium. An oil-immersed transformer uses insulating oil for both cooling and insulation, while a dry-type transformer relies on air or solid cast resin. Oil-immersed transformers generally offer higher voltage capability, better cooling efficiency, and longer service life, whereas dry-type transformers provide superior fire safety and are preferred for indoor installations.
Q2: What type of oil is used in oil-immersed transformers? The most common type is mineral oil, which offers excellent dielectric properties and thermal stability at a competitive cost. Natural ester oil (derived from vegetable sources) and synthetic oils are also used, particularly in environmentally sensitive locations or where enhanced fire safety is required.
Q3: How often should transformer oil be tested? Routine oil testing is typically performed annually for critical power transformers and every 2–3 years for distribution transformers. More frequent testing may be warranted for aging units or those operating under severe conditions. DGA is the most valuable diagnostic test for early fault detection.
Q4: What is a conservator tank and why is it needed? A conservator tank is an auxiliary expansion vessel mounted above the main tank that accommodates the thermal expansion and contraction of insulating oil. It minimizes the oil's contact with ambient air, reducing moisture absorption and oxidation, thereby prolonging oil and insulation life.
Q5: Can oil-immersed transformers be installed indoors? Yes, but additional safety measures are required. Indoor installations of oil-immersed transformers must include fire-rated enclosures, oil containment pits or bund walls, automatic fire suppression systems, and adequate ventilation. Where fire risk is unacceptable, dry-type transformers are typically specified.
Q6: What is the typical lifespan of an oil-immersed transformer? With proper maintenance, an oil-immersed transformer typically lasts 30 to 40 years or more. Factors that influence lifespan include load profile, ambient temperature, oil quality, cooling system effectiveness, and the frequency of maintenance activities.
Q7: What standards govern oil-immersed transformer design? The key international standards are IEC 60076 (Power Transformers — International Electrotechnical Commission) and IEEE C57 (IEEE Standard for Distribution and Power Transformers — North America). These standards define requirements for design, testing, performance, and safety.
Q8: What are the early warning signs of transformer failure? Early warning signs include elevated temperature readings, abnormal noise or vibration, oil leaks, discolored insulating oil, increased DGA fault gas levels, and frequent activation of protective devices such as the Buchholz relay or pressure relief valve. Any of these conditions should prompt immediate investigation.
The oil-immersed transformer remains an indispensable component of modern power infrastructure, offering unmatched voltage capability, cooling efficiency, and long-term reliability for applications ranging from local distribution networks to ultra-high-voltage transmission corridors. Its design has continuously evolved — from traditional mineral oil-filled units with conservator tanks to advanced hermetically sealed designs using natural ester oil and integrated digital monitoring.
For buyers, engineers, and project developers, selecting the right oil-immersed transformer requires careful evaluation of factors including voltage class, power rating, cooling method (ONAN, ONAF, OFAF, or OFWF), installation environment, and maintenance strategy. By understanding these fundamentals and adhering to recognized standards such as IEC 60076 and IEEE C57, stakeholders can ensure safe, efficient, and durable transformer operation for decades to come.
