Introduction — Why Voltage Isn't Always What You Expect

In an ideal world, the voltage arriving at a transformer's primary terminals would always match its nameplate rating. In reality,it rarely does. Voltage drop along long distribution feeders, fluctuating demand from nearby consumers, and grid-levelvariations all cause the actual supply voltage to deviate-sometimes by 5%, 10%, or more.

When a transformer receives a higher or lower primary voltage than it was designed for, the secondary voltage follows proportionally. A 5% undervoltage at the input means 5% less at the output -enough to cause motor overheating, control system faults, and production losses in an industrial facility.

This is exactly why every well-designed transformer includes a transformer tap changer. It is one of the simplest yet most important devices on a transformer, giving operators the ability to correct for real-world voltage conditions without replacing equipment or redesigning the system.

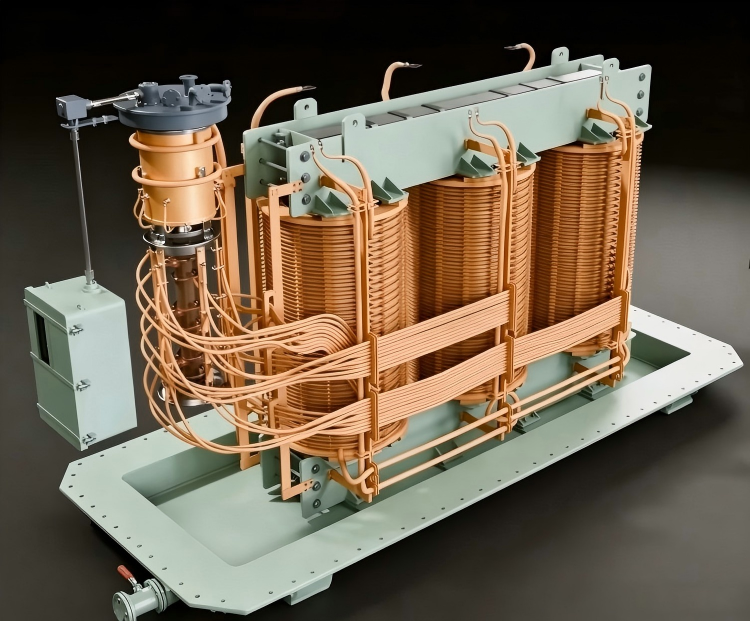

What Is a Transformer Tap Changer?

A transformer tap changer is a mechanism that allows the number of active turns in a transformer winding to be changed, there by adjusting the transformer turns ratio and regulating the output voltage. It works by connecting to different winding taps-physical connection points built into the coil at the factory-each representing a slightly different number of turns.

By moving from one tap to another, the effective voltage ratio adjustment changes the relationship between primary and secondary voltage. This capability is what makes a tap changing transformer adaptable to real operating conditions rather than being limited to a single fixed ratio.

There are two fundamentally different approaches to changing taps:

-Off-load tap changers (also called no-load tap changers or de-energized tap changers, commonly abbreviated as DETC or NLTC)- adjusted only when the transformer is disconnected from the power source.

-On-load tap changers (OLTC)-capable of switching taps while the transformer is energized and carrying load current, without interrupting the power supply.

Understanding the difference between these two-and knowing which tap position to select-is essential for anyone responsible for specifying, installing, or maintaining transformer equipment.

How Transformer Taps and Turns Ratio Work

The voltage output of a transformer is governed by a simple relationship:

Vs = Vp ×Ns/Np

Where Vₛ is secondary voltage, Vₚ is primary voltage, Nₛ is the number of secondary turns, and Nₚ is the number of primary turns— the transformer turns ratio.

Winding taps are connection points distributed along the primary (high-voltage) winding. Each tap engages or disengages a small section of the coil, changing Nₚ and therefore the ratio:

Selecting a tap with fewer primary turns increases the ratio and raises secondary voltage — used when the incoming primary voltage is too low.

Selecting a tap with more primary turns decreases the ratio and lowers secondary voltage — used when the incoming primary voltage is too high.

The taps are almost always located on the high-voltage winding because the current is lower there, which reduces switching stress and allows for smaller, more economical tap changer components.

Off-Load Tap Changer (NLTC / DETC)

An off-load tap changer (NLTC), also commonly referred to as a de-energized tap changer (DETC), is the simpler of the two types. As the name implies, it can only be operated when the transformer is completely disconnected from all power sources —both primary and secondary sides must be de-energized.

How a DETC Works

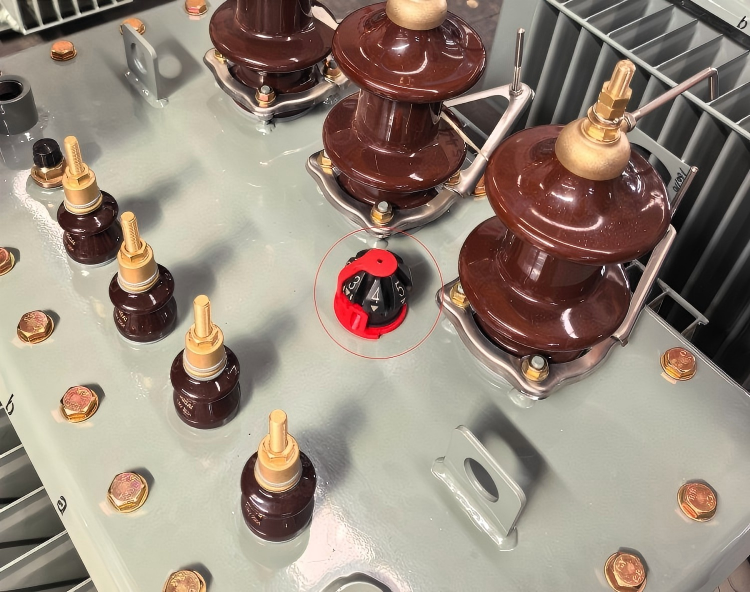

The DETC is typically a rotary switch mechanism located inside the transformer's primary cabinet (on pad-mounted units) or accessible via an external handle (on oil-immersed distribution transformers). Turning the mechanism physically moves acontact arm to a different tap position, selecting a new connection point on the winding.

Because there is no current flowing when the change is made, DETCs do not require arc suppression equipment-no diverter switches, no transition resistors, no oil-filled switching chambers. This simplicity makes them:

-Mechanically robust and low-maintenance

-Significantly less expensive than OLTCs

-Suitable for applications where voltage conditions are stable or adjustments are seasonal

Where De-Energized Tap Changers Are Used

DETCs are the standard choice for most distribution-class equipment, including:

-Pad-mounted transformers serving residential and commercial loads

-Pole-mounted transformers on rural distribution feeders

-Dry-type transformers in commercial buildings — where taps are often adjusted manually via jumper lead cables instead of a rotary switch

-Small industrial control transformers with infrequent adjustment needs For a tap changer for distribution transformer applications where voltage varies slowly with seasonal load patterns, the DETC offers an ideal balance of functionality and cost. A utility crew can adjust taps during a scheduled maintenance window and leave the transformer to operate at the corrected ratio for months at a time.

On-Load Tap Changer (OLTC)

An on-load tap changer (OLTC) performs the same basic function as a DETC- adjusting the transformer turns ratio- but does so while the transformer is energized and carrying load. This capability makes OLTCs indispensable wherever voltage must be regulated continuously, automatically, and without planned outages.

How OLTCs Handle the Switching Challenge

The fundamental engineering challenge of the on-load tap changer is this: you cannot simply break the current by opening a contact- the resulting arc would destroy the switch and potentially damage the transformer. OLTCs solve this through a coordinated sequence:

1. The selector switch preselects the next desired tap position (no current flows through it at this stage).

2. The diverter switch transfers the load current from the old tap to the new one, using transition resistors or reactors to momentarily bridge both connections.

3. The arc is safely quenched-in traditional designs within insulating oil, or in modern vacuum interrupter OLTCs, within sealed vacuum bottles.

This sequence repeats every time the system calls for a tap change, typically driven by an automatic voltage regulator (AVR) that monitors secondary voltage in real time.

OLTC Design Variants

There are three main OLTC transition technologies:

The vacuum-type OLTC has gained significant market share in recent years because it eliminates the primary driver of OLTC maintenance: carbon contamination of insulating oil from repeated arcing. For utilities aiming to reduce substation downtime, vacuum OLTCs represent the current state of the art.

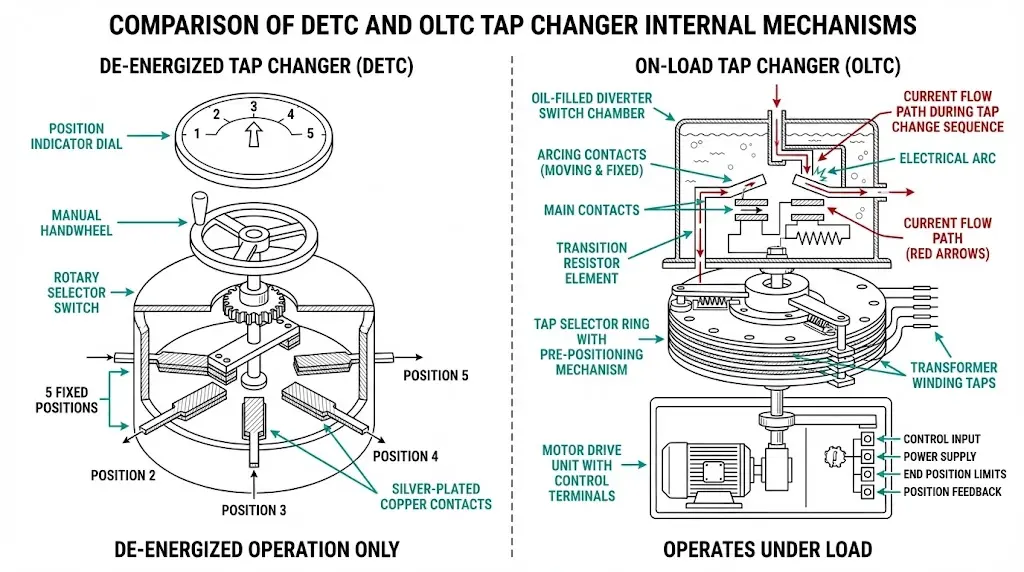

On-Load vs Off-Load Tap Changer: Key Differences

The choice between on-load vs off-load tap changer is one of the first decisions when specifying a transformer. The table below summarizes the engineering and operational trade-offs:

A common mistake is to assume all transformers need OLTCs. In reality, a tap changer for distribution transformer applications with predictable, slow-changing voltage profiles is perfectly well served by a DETC at a fraction of the cost. OLTCs earn their premium in environments where voltage changes hour by hour — transmission interconnections, industrial plants with large motor starts, and renewable energy collection systems.

Tap Configurations — Understanding Your Options

Tap changers are available in several standard configurations, defined by the number of available tap positions and the voltage adjustment range they provide.

5-Position Tap Changer (Most Common for Distribution)

The workhorse of distribution transformers, a 5-position tap changer typically provides:

-Two taps above nominal (+2.5% and +5.0%)

-The nominal (100%) position

-Two taps below nominal (−2.5% and −5.0%)

This gives a total ±5% voltage adjustment range in 2.5% steps. These are called full capacity taps (FCAN/FCBN) because the transformer can deliver its full kVA rating at any tap position.

On a typical nameplate, the taps are listed with the highest voltage at position 1 (or "A"):

7-Position Tap Changer

Some transformers — particularly smaller dry-type units — offer seven positions, extending the range to ±10% voltage range with two taps above and four below nominal, each at 2.5% increments.

Power Transformer Configurations

For transmission-class transformers with OLTCs, the ±10% voltage range is standard, with 17, 23, or 33 positions in steps of 1.25% or 1.5%. Some designs offer up to ±25% for applications with extreme voltage variation, such as long rural feeders or renewable energy collector networks.

Manual Jumper Lead Taps (Dry-Type Transformers)

On many dry-type transformers, there is no rotary tap changer at all. Instead, the winding taps are brought out as terminal posts, and voltage adjustment is made by physically moving a jumper lead cable between positions. This is a purely manual, de-energized operation — but it is simple, reliable, and eliminates the cost of a separate tap changing mechanism.

Tap Changer Components and How They Work Together

Whether off-load or on-load, every tap changer shares a common set of building blocks:

The selector switch and tap position indicator are the two components common to both DETC and OLTC designs. In a DETC,they are essentially the entire mechanism — simple, robust, and requiring almost no attention beyond an occasional visual check. In an OLTC, they are surrounded by the more complex diverter and arc-suppression systems that make on-load operation possible.

Tap Changer Maintenance and Oil Analysis

Maintenance requirements differ dramatically between off-load and on-load tap changers.

De-Energized Tap Changer Maintenance

DETCs are essentially maintenance-free under normal conditions. The mechanism operates infrequently, there is no arcing, and the contacts see no wear during switching because no current is present. Periodic visual inspection — confirming the tap position indicator matches the physical setting — is typically sufficient.

On-Load Tap Changer Maintenance

OLTCs require a structured preventive maintenance program because each tap change involves arcing, contact wear, and gradual oil degradation:

Tap changer oil analysis — Dissolved gas analysis (DGA) of the OLTC compartment oil detects early signs of excessive arcing, contact deterioration, and insulation breakdown. This should be performed annually or more frequently for heavily cycled units.

Contact wear inspection — Diverter and selector contacts have a finite operating life, typically rated for 50,000 to 300,000 operations depending on design and loading. Scheduled inspection and replacement prevent unexpected failures.

Mechanism checks — Motor drive lubrication, timing calibration, and electrical continuity tests ensure the switching sequence remains within specification.

Oil filtration or replacement — Carbon-contaminated oil must be filtered or replaced to maintain dielectric strength.

Industry data consistently shows that contact wear OLTC and neglected oil maintenance account for a disproportionate share of transformer failures — over 30% according to multiple utility surveys. A disciplined maintenance schedule is not optional for OLTC-equipped transformers; it is a precondition for reliable operation.

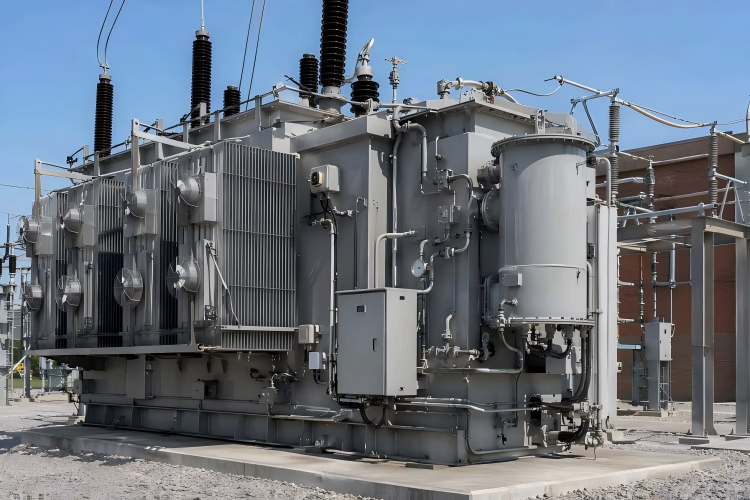

Applications: Where Tap Changers Are Used

Tap changers are ubiquitous across the entire voltage spectrum of power systems:

Whether it is a simple 5-position DETC on a pole-mounted unit or a sophisticated vacuum OLTC on a 345 kV substation transformer, the fundamental purpose is the same: to give the operator control over the voltage ratio adjustment so that downstream equipment receives power within its design tolerance.

Custom Tap Changer Transformers

Standard tap configurations cover most applications, but some projects require non-standard solutions. A custom tap changer transformer may be specified with:

-Extended tap ranges (e.g., ±15% or ±20% instead of standard ±5% or ±10%)

-Non-standard step sizes (e.g., 1.0% or 2.0% instead of 1.25% or 2.5%)

-Specific tap position numbering to match an existing fleet

-Dual-voltage taps for transformers serving regions with different nominal voltages

-Coarse–fine tap changer arrangements for very precise voltage control

When ordering a custom configuration, the manufacturer needs clear specifications: target voltage levels, expected supply voltage variation, load profile, and any utility or grid code requirements. With this information, the tap changer — whether DETC or OLTC — can be engineered to match the real-world conditions the transformer will face, rather than forcing the project to adapt to a standard design.

At Shandong Future Electric Co., Ltd. — Transformer Division, we supply transformers with both standard and custom tap changer configurations across distribution and power-class ratings, built to IEC and IEEE standards.

FAQ — Frequently Asked Questions

Q1: What is a transformer tap changer?

A transformer tap changer is a mechanism that adjusts the number of active turns in a transformer winding, changing the transformer turns ratio and regulating the output voltage without replacing the transformer.

Q2: What is the difference between on-load and off-load tap changers?

An on-load tap changer (OLTC) switches taps while the transformer is energized and under load, enabling automatic, continuous voltage regulation. An off-load tap changer (DETC/NLTC) requires the transformer to be de-energized and is used for infrequent, manual adjustments.

Q3: What is a de-energized tap changer (DETC)?

A de-energized tap changer (DETC) — also called a no-load tap changer (NLTC) — is a simple rotary switch or jumper lead system that changes winding taps only when the transformer is disconnected from all power sources. It is standard on most distribution transformers.

Q4: How many tap positions does a transformer tap changer have?

Most distribution transformers use a 5-position tap changer with ±5% adjustment in 2.5% steps. Dry-type units may have 7 positions (±5% above, −10% below). Power transformer OLTCs typically have 17–33 positions covering ±10% to ±25%.

Q5: Where is the tap changer located on a transformer?

Tap changers are almost always on the high-voltage (primary) winding, where current is lower. On pad-mounted transformers, the DETC is accessible in the HV cabinet. On large power transformers, the OLTC is in a separate oil-filled compartment mounted on the tank exterior.

Q6: What maintenance does a tap changer need?

DETCs require minimal maintenance — essentially visual inspection. OLTCs require regular tap changer oil analysis, contact wear inspection, mechanism calibration, and oil filtration or replacement.

Vacuum OLTCs significantly reduce maintenance compared to oil-immersed designs.

Q7: Can I order a transformer with a custom tap changer configuration?

Yes. A custom tap changer transformer can be built with extended tap ranges, non-standard step sizes, dual-voltage taps, or coarse–fine arrangements to match specific project requirements. Contact the manufacturer with your voltage specifications.

Conclusion

The transformer tap changer may be a relatively simple device in principle, but it performs a function that is absolutely essential to every power system: giving operators control over voltage where real-world conditions deviate from design assumptions. Whether it is a manual, de-energized 5-position switch on a distribution pad-mount, or a fully automated vacuum OLTC on a 230 kV substation transformer, the tap changer turns a fixed-ratio transformer into an adaptable, field  configurable asset.

Understanding the difference between on-load vs off-load tap changer technologies, knowing how to read tap position indicators and nameplate tap tables, and recognizing when a standard configuration will suffice versus when a custom tap changer transformer is justified — these are practical skills that directly affect project cost, equipment reliability, and long  term operating efficiency.

For inquiries about standard or custom tap changer transformers, contact Shandong Future Electic Co., Ltd. — Transformer Division.
