A single phase transformer is an electrical device that transfers alternating current (AC) electrical energy from one circuit to another through electromagnetic induction, operating on a single-phase power supply with one primary winding and one secondary winding wound around a common magnetic core. Unlike three-phase transformers that handle three separate voltage waveforms, a single phase transformer manages only one AC waveform, making it the simplest and most economical transformer configuration. Single phase power transformers are the backbone of residential power distribution, small commercial electrical systems, and light industrial applications where the connected load does not exceed approximately 50 to 75 kVA and where three-phase infrastructure is neither available nor justified.
The operating principle of every single phase transformer rests on Faraday's law of electromagnetic induction. When alternating current flows through the primary winding, it produces a time-varying magnetic flux in the laminated magnetic core. This flux links the secondary winding, and as the magnetic field builds and collapses with each AC cycle, it induces a corresponding voltage across the secondary terminals. The magnitude of the induced voltage is determined by the turns ratio—the number of turns in the secondary winding divided by the number of turns in the primary winding.
A secondary with more turns than the primary produces a higher output voltage—a step up configuration. A secondary with fewer turns produces a lower output voltage—a step down configuration. For example, a single phase power transformer with a 10:1 turns ratio connected to a 2,400 V primary delivers 240 V at the secondary. Power is conserved (minus losses): the product of voltage and current on each side remains approximately equal, meaning that stepping voltage down correspondingly steps current up.
Because the magnetic coupling relies entirely on a changing flux, a single phase transformer operates only on AC. Direct current applied to the primary winding would produce a constant flux that induces no secondary voltage and would saturate the core, causing excessive current and rapid overheating.
Single phase double wound transformer: The most common configuration. The primary and secondary windings are electrically separate—there is no conductive path between them. This galvanic isolation is a critical safety feature: a fault on the secondary side cannot pass directly to the primary circuit. Double-wound designs are used for virtually all power distribution applications, from utility service transformers to control power transformers in industrial panels.
Single phase autotransformer: A variant in which a single continuous winding serves as both primary and secondary, with the secondary voltage tapped from a portion of the winding. Autotransformers are smaller, lighter, and less expensive than double-wound units for the same kVA because they share winding turns. The trade-off is no electrical isolation between input and output—a fault on one side appears directly on the other. Autotransformers are used in voltage regulation, motor starting, and applications where isolation is not required.
Single phase welding transformer: A specialized single phase transformer designed to deliver high current at low voltage for arc welding. The secondary winding uses few turns of heavy-gauge copper or aluminum to produce welding currents of 100 to 600 amperes at voltages typically between 20 and 80 volts—high enough to strike and maintain an arc but low enough to be safe for the operator. The output current is often adjustable through a movable magnetic shunt or tapped winding that varies the leakage reactance, giving the welder control over heat input. Single phase welding transformers are rugged, air-cooled, and designed for intermittent duty with high thermal mass to absorb the repetitive heating cycles of welding operations.
Isolation transformer: A double-wound single phase transformer with a 1:1 turns ratio, providing no voltage change but complete electrical separation between primary and secondary circuits. Isolation transformers block DC components, reduce noise coupling, and protect sensitive equipment from ground faults and common-mode voltage transients.
The magnetic core of a single phase transformer is built from thin laminations of grain-oriented silicon steel, each electrically insulated from its neighbors by a thin oxide or varnish coating. Lamination suppresses eddy currents—circulating currents that would otherwise flow in a solid core, generating wasteful heat. The laminations are stacked and clamped into two common geometries:
Core type (core-form): The windings surround the core limbs. In a single-phase core-type transformer, the primary and secondary windings are placed on two limbs of a rectangular core, connected by upper and lower yokes. This design provides good magnetic coupling and is the standard for distribution transformers.
Shell type (shell-form): The core surrounds the windings. The central limb carries both primary and secondary coils, flanked by two outer limbs that provide return paths for the magnetic flux. Shell-type construction offers better short-circuit withstand and reduced leakage flux, making it suitable for higher-power or mechanically demanding applications.
Copper is the preferred winding material for single phase power transformers because of its high conductivity, mechanical strength, and resistance to corrosion at connection points. Aluminum is used as a lower-cost alternative, particularly in smaller distribution transformers, with the trade-off of requiring larger conductor cross-sections and more careful termination practices to prevent galvanic corrosion and thermal cycling loosening.
kVA rating: A single phase transformer is rated in kilovolt-amperes (kVA), not kilowatts, because the transformer's capacity is limited by winding current and voltage—quantities that determine apparent power—rather than by the real power delivered to the load, which depends on the load's power factor. Standard single-phase ratings range from 0.1 kVA for small control transformers to 167 kVA for larger distribution units.
Voltage regulation: The change in secondary voltage from no-load to full-load, expressed as a percentage of the full-load voltage. A well-designed single phase power transformer achieves regulation of 2% to 4%, meaning the voltage at the load remains within tight limits regardless of demand.
Efficiency: Modern single phase transformers achieve 95% to over 98% efficiency at rated load, with efficiency peaking when the load loss (copper loss, proportional to the square of load current) equals the no-load loss (core loss, constant regardless of load).
Insulation class: Defines the maximum winding temperature the insulation system can withstand. Class B (130°C), Class F (155°C), and Class H (180°C) are common, with Class F being the most typical for general-purpose single phase transformers.
Feature | Single Phase Transformer | Three Phase Transformer |
|---|---|---|
Input supply | Two-wire (line + neutral), single-phase AC | Three-wire or four-wire, three-phase AC |
Windings | One primary, one secondary | Three primary, three secondary (or interconnected) |
Power delivery | Pulsating (zero crossing twice per cycle) | Continuous, constant instantaneous power |
kVA per conductor | Lower | Higher (≈1.73× for same conductor mass) |
Typical kVA range | 0.1–167 kVA | 15–10,000+ kVA |
Motor compatibility | Single-phase motors only (capacitor start) | All three-phase motors, direct-on-line starting |
Cost | Lower unit cost | Higher unit cost, lower cost per kVA delivered |
Size and weight | Smaller per unit | More compact per kVA |
Applications | Residential, light commercial, control circuits | Industrial, commercial buildings, motor loads |

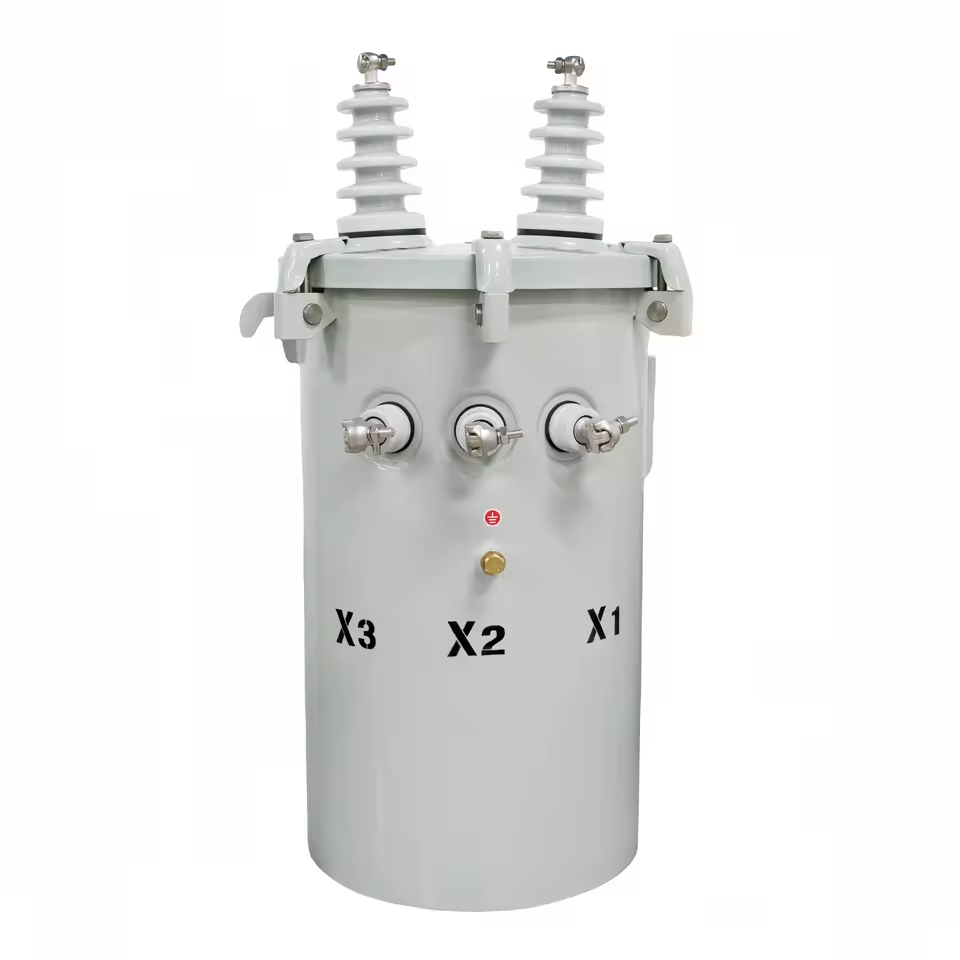

Residential power distribution: A single phase transformer—typically pole-mounted or pad-mounted at 10–167 kVA—steps down the utility primary voltage (7.2 kV, 13.8 kV, etc.) to 120/240 V split-phase for household service. The center-tapped secondary provides two 120 V circuits for lighting and receptacles and a 240 V circuit for large appliances, electric heating, and air conditioning.
Commercial and retail: Small offices, retail stores, and restaurants use single phase power transformers for lighting, HVAC, point-of-sale systems, and kitchen equipment. The simpler installation and lower cost compared to three-phase service make single-phase distribution the economical choice for loads under approximately 50 kVA.
Light industrial and workshop: Machine tools, welding equipment, compressors, and small motor drives in garages, workshops, and light manufacturing are frequently served by single phase transformers. A single phase welding transformer in particular is a dedicated industrial tool that converts line voltage to low-voltage, high-current output precisely matched to the arc welding process.
Control power: Inside three-phase industrial equipment, control circuits, relays, contactors, and PLCs operate on single-phase 120 V or 24 V derived from a small single phase transformer—typically a control transformer or double wound isolation transformer—fed from one phase of the three-phase supply. This ensures that control voltage is isolated from power circuit disturbances.
Renewable energy: Residential solar inverters produce single-phase AC output synchronized to the utility grid. A single phase transformer steps the inverter output voltage up to the grid connection voltage, providing galvanic isolation and meeting utility interconnection requirements.
Rural electrification: In sparsely populated areas where the cost of three-phase distribution lines is prohibitive, single-phase lines served by single phase power transformers deliver adequate power for farms, small communities, and remote facilities at a fraction of the infrastructure cost.
What is the difference between a single phase transformer and a three phase transformer?
A single phase transformer operates on a two-wire single-phase supply with one primary and one secondary winding. A three-phase transformer has three primary and three secondary windings and operates on a three-wire or four-wire three-phase supply. Single-phase units are simpler, smaller, and less expensive per unit; three-phase units deliver 1.73 times more power for the same conductor material and are required for industrial motor loads.
What is a single phase double wound transformer?
A single phase double wound transformer has two electrically separate windings—primary and secondary—with no conductive connection between them. This provides galvanic isolation: a fault on one side cannot pass directly to the other. Double-wound construction is the standard for virtually all power distribution applications where safety and isolation are required.
What is a single phase welding transformer used for?
A single phase welding transformer converts standard line voltage (120 V, 240 V, or 480 V) to a low-voltage (20–80 V), high-current (100–600 A) output suitable for electric arc welding. The high secondary current is achieved through a very low turns ratio—the secondary has few turns of heavy-gauge conductor. Output current is typically adjustable through a movable magnetic shunt that varies the transformer's leakage reactance, controlling the welding heat.
Can a single phase transformer step up and step down voltage?
Yes. The same single phase transformer can be used for either step-up or step-down operation depending on which winding is connected to the source. If the primary has more turns than the secondary, it steps voltage down (and current up). If the primary has fewer turns, it steps voltage up (and current down). The turns ratio determines the voltage ratio in both directions.
How do I size a single phase transformer?
Calculate the total connected load in kVA: for resistive loads, kVA equals kW; for motor loads, divide kW by the motor's power factor (typically 0.8). Add 20% margin for future growth and motor starting inrush. Select the next standard kVA rating above the calculated value. For a welding application, size based on the welder's rated input kVA at its maximum output current and duty cycle.
What is the lifespan of a single phase transformer?
A properly sized, adequately ventilated single phase transformer operating within its rated temperature limits delivers 20 to 30 years of service in a clean, dry environment. Dry-type units tend toward the lower end; oil-filled pole-mounted and pad-mounted units can achieve 30 to 40 years with periodic oil testing and maintenance.
