Introduction

When specifying or purchasing an oil-filled transformer, one of the most important decisions is the choice of insulating oil. While modern alternatives such as natural ester fluids have gained attention in recent years, mineral oil remains the dominant insulating and cooling medium in the global transformer market — accounting for well over 80% of all oil-filled transformers in service. A mineral oil transformer combines proven performance, cost-effectiveness, and decades of operational history to deliver reliable voltage transformation across every segment of the power industry. This article explains what mineral oil transformers are, why mineral oil is the fluid of choice, and what advantages it offers compared with alternative insulating liquids.

What Is a Mineral Oil Transformer?

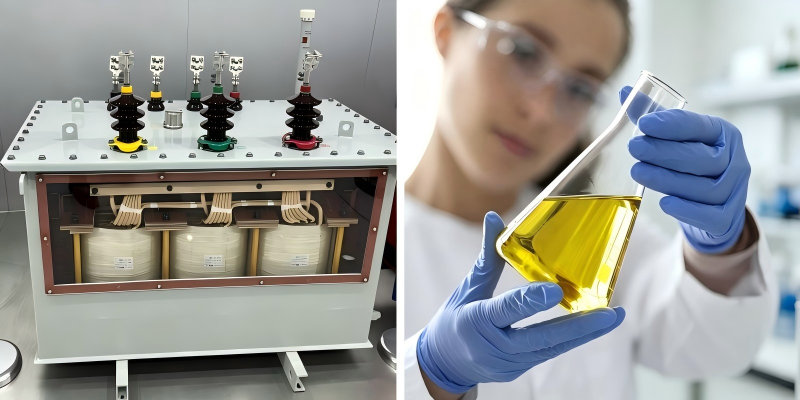

A mineral oil transformer is a type of oil-immersed transformer in which the core and windings are fully submerged in mineral oil — a refined petroleum-based insulating oil. The mineral oil performs the same dual function as any transformer insulating liquid: it provides electrical insulation between energized components and the grounded tank, and it transfers heat generated during operation away from the core and windings via natural convection or forced circulation.

Mineral oil transformers encompass the full range of oil-filled transformer types — from compact pole-mounted distribution transformers rated at tens of kVA to large power transformers exceeding 1,000 MVA in transmission substations. The term "mineral oil transformer" does not denote a separate category of transformer design; rather, it specifies the type of dielectric fluid used. The same transformer design can typically be filled with mineral oil, natural ester, or synthetic ester, depending on the project's performance, safety, and environmental requirements.

What Is Mineral Oil?

Understanding why mineral oil dominates the transformer industry requires a closer look at its composition and properties.

Origin and Composition Mineral oil for transformers is produced from carefully selected crude oil fractions through a refining process that removes undesirable compounds such as aromatics, sulfur, and nitrogen. The result is a highly purified hydrocarbon fluid with predictable electrical, thermal, and chemical characteristics. The two main types are naphthenic-based oil and paraffinic-based oil, with naphthenic oil being preferred in most regions due to its lower pour point and better low-temperature performance.

Key Properties The performance of mineral oil in a transformer is defined by several critical properties:

Dielectric Strength: This measures the oil's ability to withstand electrical stress without breaking down. High-quality mineral oil typically achieves a dielectric strength of 30 kV or higher (per 2.5 mm gap), providing excellent insulation for high-voltage windings and preventing electrical breakdown.

Thermal Conductivity: Mineral oil effectively transfers heat from the core and windings to the tank walls and radiators, maintaining safe operating temperatures and preventing insulation aging.

Viscosity: The oil's resistance to flow affects both cooling efficiency and convection circulation. Low-viscosity mineral oil flows more easily through narrow winding ducts, enhancing heat dissipation.

Oxidation Stability: Over time, exposure to oxygen and elevated temperatures can cause oil degradation, leading to acid formation and sludge deposits. Modern mineral oil formulations include antioxidant additives that significantly slow this process, extending oil life.

Flash Point and Fire Point: The flash point of typical mineral oil is around 140–150 °C, with a fire point of approximately 150–170 °C. While lower than that of ester-based fluids, this is adequate for standard outdoor installations with appropriate fire protection measures.

Pour Point: This is the lowest temperature at which the oil will flow. Naphthenic mineral oils have pour points as low as -40 °C to -50 °C, ensuring reliable operation in cold climates.

Modern mineral oil for transformers is also PCB-free — a critical safety and environmental requirement since the global ban on polychlorinated biphenyls in electrical equipment.

Key Advantages of Mineral Oil Transformers

Mineral oil transformers offer a compelling combination of benefits that explain their enduring market dominance:

Excellent Insulating Properties Mineral oil delivers high dielectric strength that reliably prevents electrical breakdown between live parts inside the transformer. It impregnates the paper and pressboard insulation around the windings, filling microscopic voids and eliminating air pockets where partial discharge could initiate. This robust insulation system is a key reason why mineral oil transformers routinely achieve service lives of 30 to 40 years or more.

Effective Cooling and Heat Dissipation The thermal conductivity of mineral oil, combined with its low viscosity, enables efficient cooling through natural convection. Heat generated by copper losses in the windings and core losses in the magnetic circuit is absorbed by the oil, which then rises and circulates to the tank walls and radiators. This heat dissipation mechanism keeps the transformer within safe operating temperature limits, directly contributing to longevity.

Cost-Effectiveness Among all insulating fluids available for transformers, mineral oil is the most cost-effective option. It is significantly less expensive than natural ester, synthetic ester, or silicone fluids — often by a factor of three to five. For budget-conscious projects, particularly those involving multiple distribution transformers or large power transformers requiring thousands of liters of oil, the cost advantage of mineral oil is substantial.

Widely Available and Easy to Source Mineral oil is produced at refineries around the world and is widely available through established supply chains. This global availability means that procurement, transportation, and replacement logistics are straightforward, reducing lead times and minimizing the risk of supply disruptions.

Self-Healing Properties One of the less-known but valuable characteristics of mineral oil is its self-healing capability. When a small electrical arc or partial discharge occurs within the transformer, the mineral oil can quench the arc and re-establish insulation integrity in the affected area. This self-healing behavior prevents minor internal events from escalating into catastrophic failures and is a significant factor in the operational reliability of mineral oil transformers.

Long Service Life When properly maintained through regular oil testing and filtration, a mineral oil transformer can operate reliably for 30 to 40 years or longer. The combination of effective cooling, oxidation stability, and the protective effect of the oil on cellulose insulation materials contributes to this longevity.

Ease of Maintenance Maintenance procedures for mineral oil transformers are well established and widely understood by service personnel around the world. Standard tests — including dielectric strength measurement, dissolved gas analysis (DGA), moisture content analysis, and acidity testing — are offered by numerous laboratories and field-service providers. Oil filtration and regeneration equipment is also readily available and does not require specialized handling beyond standard safety precautions.

Mineral Oil vs. Alternative Insulating Fluids

While mineral oil remains the default choice, alternative fluids are gaining market share in specific applications. The following table compares mineral oil with the most common alternatives:

Mineral oil remains the preferred choice for outdoor, general-purpose installations where fire safety requirements are standard and cost is a primary consideration. Ester fluids are specified when enhanced fire safety, biodegradability, or improved moisture tolerance are required — such as in indoor transformers, wind turbine nacelles, or environmentally protected areas. Silicone oil occupies a niche for extreme fire-critical locations.

Applications of Mineral Oil Transformers

Mineral oil transformers serve virtually every segment of the electrical power industry:

Transmission and Distribution Networks The vast majority of power transformers and distribution transformers in utility grids worldwide are mineral oil-filled. From step-up transformers at generation plants to step-down units at consumer-end substations, mineral oil provides the proven reliability that grid operators demand.

Industrial Facilities Heavy industries — including steel mills, chemical plants, refineries, and mining operations — depend on mineral oil transformers for continuous, high-load power supply. The robust overload capability and self-healing properties of mineral oil are particularly valued in these demanding environments.

Commercial and Residential Distribution Pole-mounted and pad-mounted distribution transformers supplying residential neighborhoods and commercial zones are overwhelmingly mineral oil-filled, owing to the fluid's low cost, wide availability, and minimal maintenance requirements when paired with hermetically sealed tank designs.

Renewable Energy Projects While natural ester fluids are gaining ground in renewable applications, many utility-scale solar and wind projects continue to specify mineral oil transformers for collector substations and grid interconnection points, particularly where the equipment is installed outdoors and cost optimization is a priority.

Maintenance and Oil Management

Proper oil management is the single most important factor in maximizing the service life and reliability of a mineral oil transformer. Key practices include:

Routine Oil Testing Regular sampling and laboratory analysis of insulating oil should cover dielectric strength, moisture content, acidity (neutralization number), interfacial tension, and dissolved gas analysis (DGA). DGA is the most powerful diagnostic tool, capable of detecting incipient faults — such as overheating, partial discharge, and arcing — by measuring the concentration of fault gases dissolved in the oil.

Oil Filtration and Regeneration Over years of operation, mineral oil accumulates moisture, particulate matter, and acidic byproducts from oxidation. Oil filtration removes solid contaminants and free water, while oil regeneration — typically using fuller's earth or activated clay treatment — removes dissolved acids and sludge, restoring the oil's dielectric and cooling properties. In many cases, regeneration can extend oil life by decades, avoiding the cost and downtime of a complete oil change.

Temperature Monitoring Continuous or periodic monitoring of oil and winding temperatures ensures that the transformer operates within design limits. Sustained operation above the recommended top-oil temperature (typically 85 °C for mineral oil) accelerates oil degradation and insulation aging.

Leak Detection and Prevention Regular visual inspections should check for oil leaks at gaskets, valves, radiator connections, and weld seams. Even minor leaks compromise the oil level and expose the transformer to moisture ingress, both of which reduce insulation integrity and service life.

FAQ

Q1: Why is mineral oil used in transformers instead of water or other liquids? Mineral oil is used because it combines excellent dielectric properties, effective thermal conductivity, chemical stability, and cost-effectiveness — attributes that water or most other common liquids cannot match. Water, for example, is electrically conductive and would cause immediate short circuits inside the transformer, and it promotes corrosion of internal components.

Q2: What is the difference between naphthenic and paraffinic mineral oil? Naphthenic mineral oil has a lower pour point (better cold-weather performance) and higher solvency for oxidation byproducts, making it the preferred choice for transformers in most regions. Paraffinic oil offers better oxidation stability but can form sludge at low temperatures. The choice depends on climate and specific transformer design requirements.

Q3: How often should mineral oil be tested? For critical power transformers, annual oil testing is standard practice. For distribution transformers, testing every 2 to 3 years is generally sufficient. More frequent testing — quarterly or semi-annually — is recommended for aging units, transformers operating under heavy or fluctuating loads, or those with a history of abnormal test results.

Q4: Can mineral oil transformers catch fire? Mineral oil is combustible, and a mineral oil transformer can catch fire if a severe internal fault causes the oil to overheat beyond its fire point. However, such events are rare when the transformer is properly designed, protected with devices such as Buchholz relays and pressure relief valves, and adequately maintained. For indoor or fire-critical installations, ester-based fluids with higher fire points are available.

Q5: Is mineral oil environmentally safe? Mineral oil is not readily biodegradable, and spills can contaminate soil and groundwater. Modern installations include oil containment systems (bund walls or pits) to capture any leakage. Where environmental regulations are particularly strict, biodegradable alternatives such as natural ester fluids are specified. All modern mineral oil for transformers is PCB-free.

Q6: What are the signs that mineral oil needs replacement? Oil replacement or regeneration should be considered when test results show significantly reduced dielectric strength, elevated acidity (neutralization number above 0.2–0.3 mg KOH/g), high moisture content, poor interfacial tension, or dark discoloration. Increasing DGA fault gas levels may also indicate deteriorating oil condition.

Conclusion

Mineral oil transformers have earned their position as the dominant technology in the global transformer market through a combination of proven performance, unmatched cost-effectiveness, and decades of reliable field experience. The mineral oil at the heart of these transformers delivers excellent insulating properties, effective cooling, self-healing capability, and longevity — all supported by a mature ecosystem of testing, maintenance, and oil management services.

While alternative insulating fluids such as natural and synthetic esters offer advantages in specific niches — particularly where enhanced fire safety or biodegradability is required — mineral oil remains the most practical and economical choice for the vast majority of outdoor, utility, and industrial applications. With proper maintenance and oil management, a mineral oil transformer represents one of the most dependable long-term investments in electrical infrastructure.
