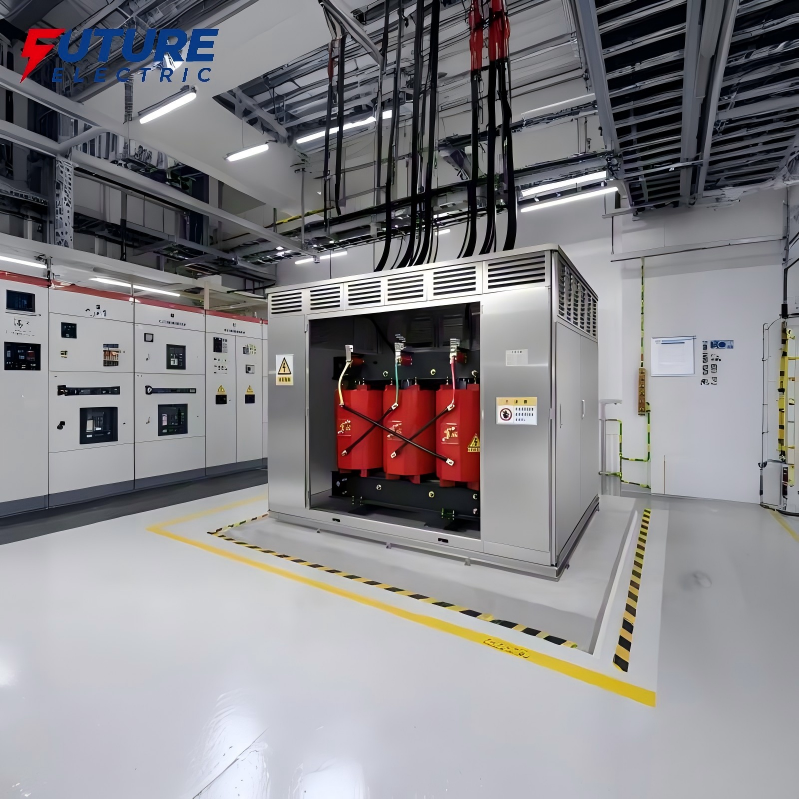

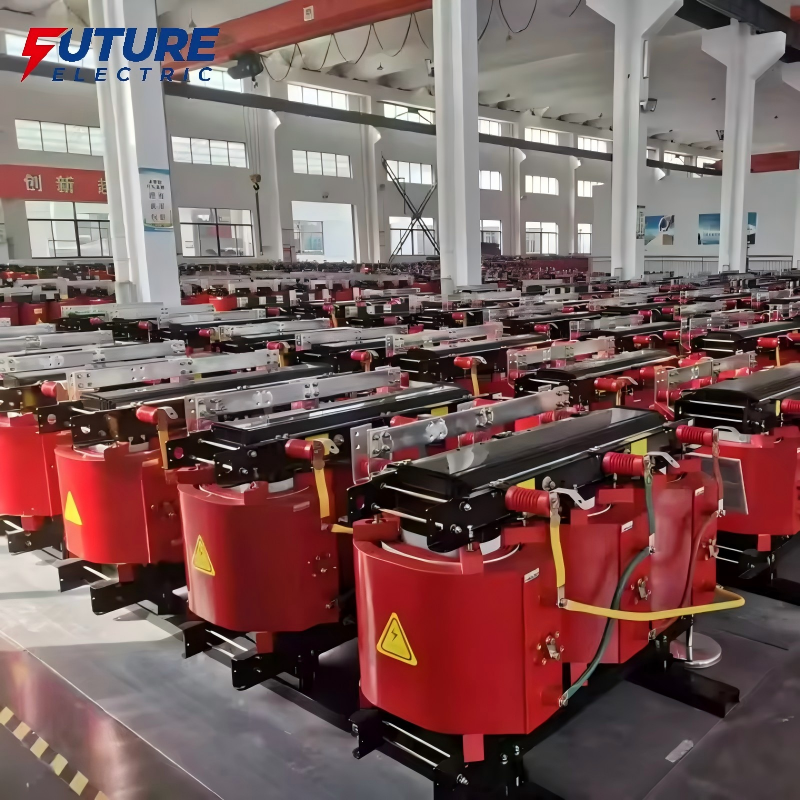

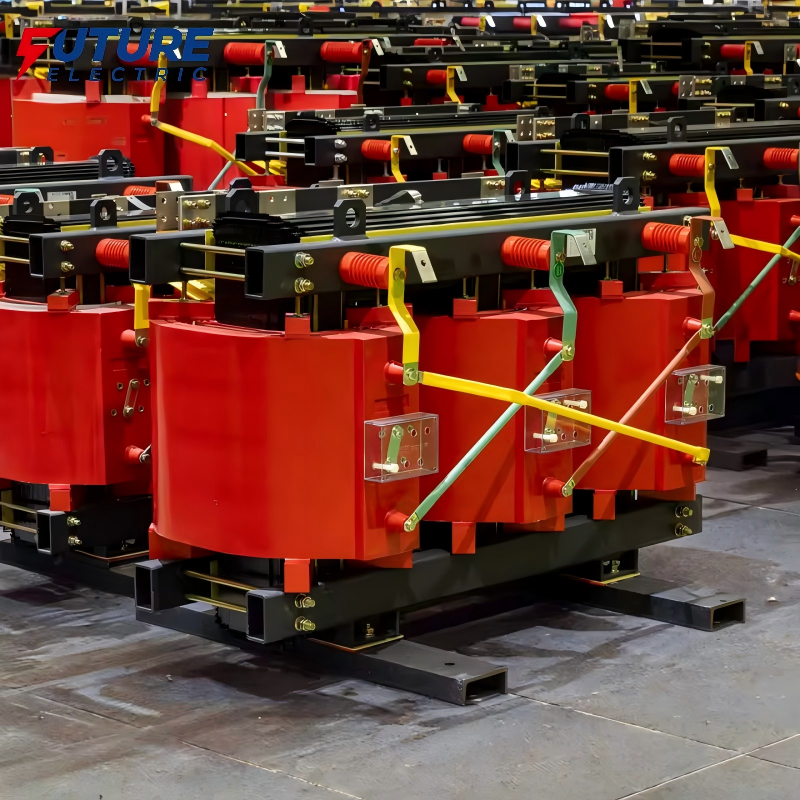

SCB18 Dry Type Power Transformer

SCB18 10kV epoxy resin cast dry-type transformer is a flagship upgraded model of the industry, applicable to power systems with AC frequency of 50Hz/60Hz and rated operating voltage of 10kV and below. It is widely used as distribution transformer in ultra-large data centers, high-end commercial buildings, rail transit hubs, high-end chemical and metallurgical enterprises and other places with high requirements for energy efficiency and safety.

Model:
SCB18
Brand:
Future Electric


Availability:



Inquire

Product Description

Technical Parameter

Model	Rated Capacity KVA	Voltage combination and Tap range			Connection symbol	No-Load Loss KW	Load Loss KW	Short Circuit impedance %	Noload current %
Model	Rated Capacity KVA	HighVoltage KV	High voltage Tap range %	LowVoltage KV	Connection symbol	No-Load Loss KW	Load Loss KW	Short Circuit impedance %	Noload current %
SCB18-30/10	30	10 10.5	±2×2.5	0.4	Dyn11	0.105	0.64	4	2.1
SCB18-50/10	50					0.155	0.9		2
SCB18-63/10	63					0.18	1.07		1.9
SCB18-80/10	80					0.21	1.24		1.8
SCB18-100/10	100					0.23	1.415		1.6
SCB18-125/10	125					0.27	1.665		1.5
SCB18-160/10	160					0.31	1.915		1.4
SCB18-200/10	200					0.36	2.275		1.3
SCB18-250/10	250					0.415	2.485		1.2
SCB18-315/10	315					0.51	3.125		1.1
SCB18-400/10	400					0.57	3.59		1
SCB18-500/10	500					0.67	4.39		1
SCB18-630/10	630					0.75	5.365	6	0.9
SCB18-800/10	800					0.875	6.265		0.8
SCB18-1000/10	1000					1.02	7.315		0.7
SCB18-1250/10	1250					1.205	8.72		0.6
SCB18-1600/10	1600					1.415	10.555		0.6
SCB18-2000/10	2000					1.76	13.005		0.5
SCB18-2500/10	2500					2.08	15.445		0.4

FAQs

Some questions and answers you may want to know when purchasing dry-type transformers.

Q. What types of transformers do you stock?

A: We provide a diverse range of transformers such as power transformers, distribution transformers, and step-up/step-down transformers. Our flagship product is the SCB18 dry-type transformer, our highest-end product.

Q: Can I customize a transformer for my specific needs?

A: Certainly. We do custom stuff. Various parameters can be specified such as power rating (kVA/MVA), input/output voltage, frequency (50Hz/60Hz), number of phases, insulation class, cooling method and standards applicable (IEC, ANSI, IEEE etc). Our technical team will review these solutions carefully and confirm their feasibility.

Q: What international standards do your transformers adhere to?

A: We mostly comply with IEC 60076 for our transformers. We can also offer products to other regional standards such as ANSI/IEEE, CSA and EN, if required. If you do consult with me, be sure to mention the certification standards you require.

Q: What are the standard voltage and frequency levels?

A: Our transformers comply with the international standards (like 10 kV, 20 kV, 35 kV) and the corresponding frequency standards (50 Hz or 60 Hz). We are also able to offer products which are tailor-made for particular markets.

Q: How can I get a quote?

A: Please contact us via our “Contact Us” form or email us your requirements, order quantity and destination port. The more information you give us, the more accurate our quote will be.

dry type power transformer dry type step down transformer indoor dry type transformer 3 phase dry type transformer cast resin type transformer dry distribution transformer dry power transformer dry resin transformer dry transformer price dry type isolation transformer

Customer Feedback -

Brazil - Tomohiro

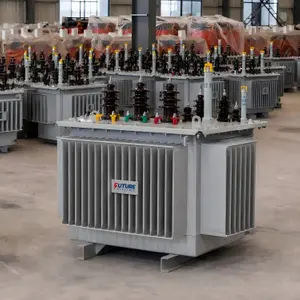

Product: Oil-immersed power transformer
Customer Feedback -

Uzbekistan Customer - Muslim

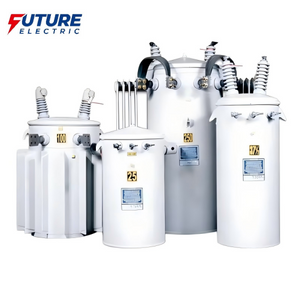

Product: Single-phase transformer
