In an ideal three-phase power system, the voltages on each phase are perfectly symmetrical, and any fault to ground produces a well-defined current that protective devices can detect and clear. But many industrial and renewable energy systems operate with delta-connected or ungrounded configurations that lack a natural neutral point — and without a neutral, there is no defined path for ground fault current to flow. The result: during a line-to-ground fault, the two healthy phases can rise toward line-to-line voltage levels, stressing insulation, creating dangerous transient overvoltages, and making the fault nearly impossible for protective relays to detect. The Zig-Zag Transformer — named for the distinctive crisscross pattern of its winding connections — is purpose-built to solve precisely this problem. It creates an artificial neutral point in systems that have none, providing a low-impedance path for zero-sequence current while presenting high impedance to balanced three-phase currents. This article provides a comprehensive guide to zig-zag transformers — what they are, how their unique winding configuration works, where they are deployed, and why they have become indispensable in modern grounding and harmonic mitigation strategies.
A zig-zag transformer is a specialized type of earthing (grounding) transformer designed to provide a neutral point in three-phase electrical systems that lack one — most commonly delta-connected or ungrounded systems. Unlike a conventional power transformer whose primary function is voltage transformation, the zig-zag transformer is designed primarily for grounding and fault current management. Under normal balanced operating conditions, it carries negligible current; during a ground fault, it provides a controlled, low-impedance path that allows protective devices to detect and clear the fault.
The distinctive name comes from the winding configuration, also called an interconnected star. Each core leg carries two winding sections connected to different phases in opposite directions. One half of each phase winding rests on one core limb, while the other half rests on a different limb — creating the characteristic zig-zag pattern when the connections are drawn on a schematic diagram. This arrangement is fundamentally different from a standard wye or delta winding: it is a single three-phase winding (not two separate windings as in a conventional transformer) spread across the core in a deliberate crisscross pattern.
Under balanced three-phase conditions, the magnetic fluxes produced by the two half-windings on each leg cancel each other, resulting in near-zero net flux and minimal current flow. Under unbalanced conditions — specifically, during a ground fault — the zero-sequence flux does not cancel, and the transformer presents low impedance to the fault current, allowing it to flow to ground through the neutral connection.
The operating principle of the zig-zag transformer rests on its ability to discriminate between balanced (positive-sequence) currents and unbalanced (zero-sequence) currents:
Under Normal Balanced Operation: The three phase currents are equal in magnitude and 120 degrees apart. The two half-windings on each core leg — connected to different phases with opposite polarity — produce magnetic fluxes that are equal and opposite. The net flux in each leg is essentially zero, the transformer draws negligible magnetizing current, and it has virtually no effect on the normal operation of the power system. The transformer is effectively "invisible" to balanced currents.
During a Line-to-Ground Fault: Zero-sequence current — current that flows in all three phases in the same direction, returning through ground — appears in the system. In the zig-zag winding, the half-windings on each leg now produce additive (not canceling) flux for this zero-sequence component, creating a low-impedance path. The fault current flows from the faulted phase, through the zig-zag winding, to the neutral point, and through the grounding connection to earth. This fault current is large enough for protective relays to detect and initiate circuit breaker tripping.
This dual behavior — high impedance to balanced currents, low impedance to zero-sequence currents — is what makes the zig-zag transformer uniquely suited for grounding applications. It provides a fault path when needed while remaining essentially inactive during normal operation.

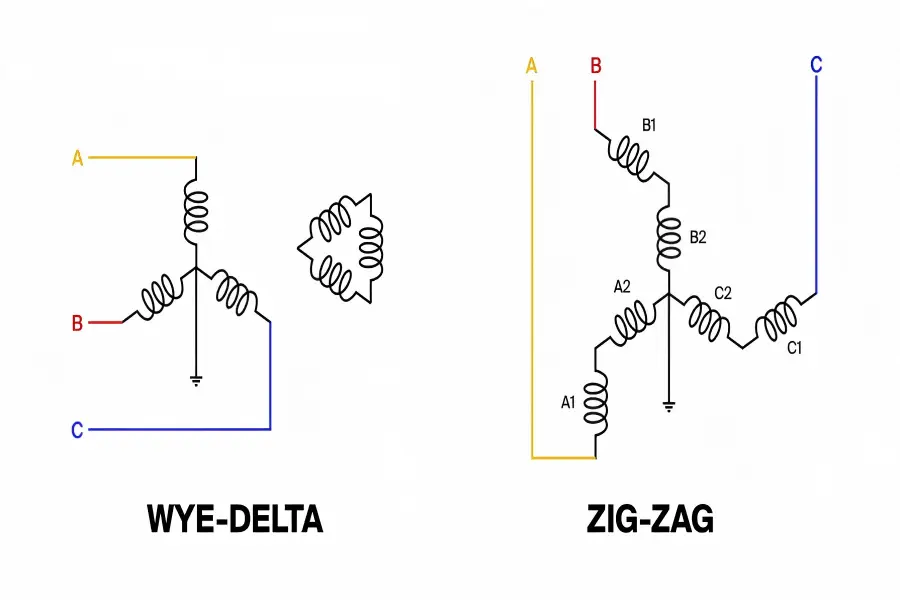

Parameter | Zig-Zag Transformer | Wye-Delta Transformer |
|---|---|---|
Primary Function | Neutral grounding and fault current management | Voltage transformation with grounding capability |
Number of Windings | One (interconnected star) | Two (wye primary, delta secondary) |
Core Material Required | Less — more cost-effective | More — larger physical size |
Power Transfer | Minimal — not designed for load | Significant — transfers real power |
Voltage Conversion | None (no step-up/step-down) | Yes |
Cost | Lower | Higher |
Physical Size | More compact | Larger |
Best Application | Creating neutral in existing delta/ungrounded systems | Combined voltage transformation and grounding |
Zig-zag transformers are deployed wherever a reliable neutral grounding point is required but does not naturally exist in the system. Key application sectors include:
Renewable Energy: Solar photovoltaic and wind power installations frequently use inverter-based generation with delta-connected outputs that lack a neutral. Zig-zag grounding transformers installed on each collector circuit or at the point of interconnection provide the grounding reference that the utility grid requires for interconnection approval, stabilize phase voltages, and prevent the dangerous overvoltages that can occur if an ungrounded string becomes islanded during a fault.
Industrial Manufacturing: Steel mills, cement plants, chemical processing facilities, and automotive factories operating medium-voltage (4.16-13.8 kV) delta-distribution networks use zig-zag transformers with resistance grounding to control fault current magnitude, reduce arc flash energy, and maintain selective protection coordination across multiple feeder tiers.
Utility Substations: When a delta-connected tertiary winding, auxiliary bus, or distribution feeder requires grounding but adding a full wye-delta power transformer is economically unjustified, a compact zig-zag unit provides the neutral point at a fraction of the cost and space.
Data Centers: Modern mission-critical facilities demand both high reliability and controlled fault management. Zig-zag grounding systems help reduce transient disturbances, improve UPS coordination, and support continuous operation during first-fault conditions.
Grounding methods paired with zig-zag transformers include solid grounding (neutral directly connected to earth, providing maximum fault current for fastest clearing), low-resistance grounding (typically 50-1000 A fault current, balancing fast clearing with reduced equipment stress), and high-resistance grounding (fault current limited to 5-10 A, allowing continued operation during the first ground fault while alarms alert maintenance personnel).
Beyond grounding, zig-zag transformers serve a secondary role in harmonic mitigation. The interconnected star winding inherently cancels zero-sequence harmonic currents — particularly the troublesome third harmonic (180 Hz) and its odd multiples (9th, 15th), collectively called triplen harmonics. These harmonics, which are in phase on all three conductors and sum in the neutral, are trapped and circulated within the zig-zag winding rather than propagating into the supply network. For facilities with significant non-linear loads — variable-frequency drives, UPS systems, LED lighting — this harmonic-canceling property provides an additional layer of power quality improvement beyond the primary grounding function.
What is a zig-zag transformer used for?
A zig-zag transformer is primarily used to create an artificial neutral point in delta-connected or ungrounded three-phase power systems, enabling proper system grounding, fault current detection, and phase voltage stabilization. It also provides harmonic mitigation by canceling zero-sequence (triplen) harmonics.
How is a zig-zag transformer different from a normal transformer?
A conventional transformer has separate primary and secondary windings and is designed for voltage transformation. A zig-zag transformer has a single interconnected star winding and is designed for grounding, not voltage conversion. It carries negligible current under normal operation and only conducts significant current during ground faults.
Can a zig-zag transformer step up or step down voltage?
No. A standalone zig-zag transformer cannot perform voltage conversion. Its single interconnected-star winding provides a neutral reference point for grounding but does not transform voltage levels. If voltage transformation is needed alongside grounding, a wye-delta transformer is typically specified instead.
Why are zig-zag transformers used in solar and wind farms?
Renewable energy inverters typically produce delta-connected outputs without a neutral. Utility interconnection standards require effective system grounding, so zig-zag transformers are installed to create the necessary neutral point, stabilize voltages, and ensure that ground faults produce sufficient current for protective relays to detect and clear.
What is the difference between solid grounding and resistance grounding with a zig-zag transformer?
Solid grounding connects the zig-zag neutral directly to earth, producing maximum fault current for fastest relay operation but higher equipment stress. Resistance grounding inserts a resistor between the neutral and earth to limit fault current — low-resistance (50-1000A) for fast clearing with reduced damage, or high-resistance (5-10A) for continued operation during the first fault.
Does a zig-zag transformer carry current during normal operation?
Under balanced three-phase conditions, the magnetic fluxes from the two half-windings on each core leg cancel, and the zig-zag transformer draws only a small magnetizing current. It is essentially inactive during normal operation and only conducts significant current when unbalanced (ground fault) conditions occur.
The Zig-Zag Transformer occupies a specialized but indispensable niche in power system engineering. It does not step voltage up or down, does not transfer significant real power, and under normal conditions draws barely enough current to maintain magnetization. Yet when a ground fault strikes a delta-connected or ungrounded system, it is the zig-zag transformer that provides the path fault current needs to flow — enabling protective relays to detect the fault, breakers to clear it, and the system to return to safe operation. Through the elegant physics of its interconnected-star winding — high impedance to balanced currents, low impedance to zero-sequence — it delivers grounding protection at lower cost, smaller size, and with fewer materials than alternative approaches. Whether stabilizing an ungrounded industrial distribution network, enabling a wind farm to meet utility interconnection requirements, or canceling troublesome harmonics in a data center, the zig-zag transformer exemplifies the engineering principle that the most specialized tools are often the most valuable ones.
