A step up transformer is an electrical device that is used to increase the voltage of alternating current (AC) electricity. It changes low-voltage, high-current electrical power into high-voltage, low-current power through electromagnetic induction. There is an important role of step up transformers in modern power systems, especially in electricity generation, high voltage transmission, renewable energy systems, industrial equipment and electronic applications.

The main reason to use a step up transformer is to efficiently increase the voltage, which allows for the transmission of electrical energy over long distances with less power loss. Modern power grids would be far less efficient and far more expensive to operate without step up transformers.

What is a step-up transformer?

A step up transformer is a transformer that has a higher output voltage than the input voltage. It mainly consists of a primary winding, a secondary winding, a magnetic core, an insulation system and protective parts.

In a step-up transformer:

·The secondary winding has a higher number of turns than the primary winding.

·The output voltage is higher than the input voltage.

·As voltage increases , current output decreases .

The frequency does not change.

The basic voltage relationship is: Vs / Vp = Ns / Np

Vs = Secondary voltage

Vp = Primary voltage

Ns = Number of turns in secondary winding

Np = Number of turns in primary winding

The transformer is a step up transformer . It increases voltage when the secondary coil has more turns than the primary coil .

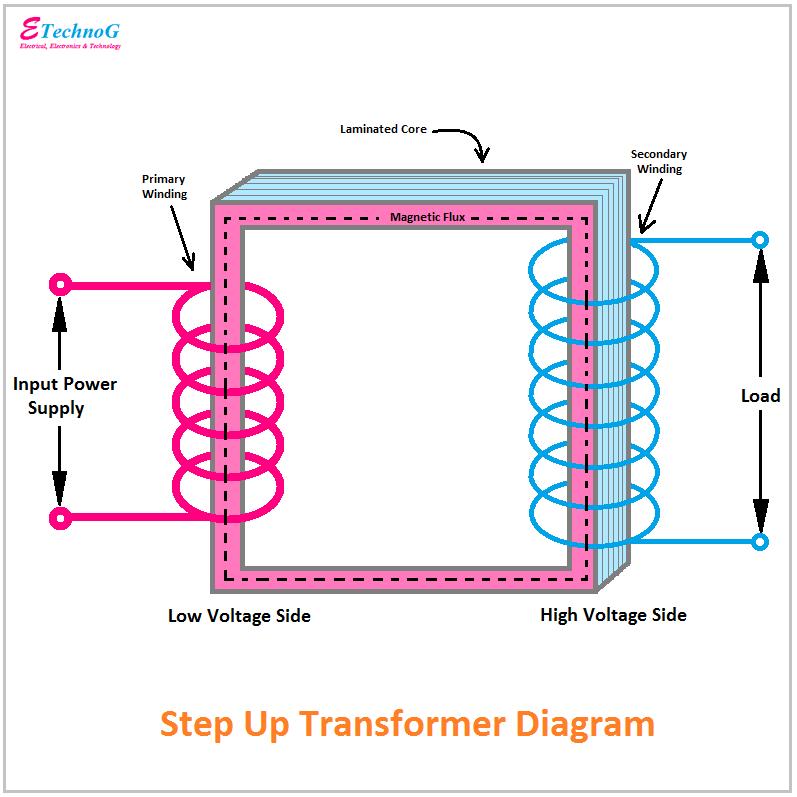

How Does a Step Up Transformer Work?

The step up transformer works on the principle of electromagnetic induction. The current flowing in the primary winding of the transformer produces a changing magnetic field in the core of the transformer.

The operation is:

1. AC Input on Primary Coil

Current is supplied to the primary coil by an alternating voltage source. The alternating current produces a magnetic flux which is continuously changing.

2. Magnetic Flux Transfer

The laminated iron core guides the magnetic flux from the primary winding to the secondary winding and reduces energy loss.

3. Voltage induced in the secondary winding

Faraday’s law of electromagnetic induction states that a change in magnetic flux will induce a voltage in the secondary winding.

The secondary winding has more turns so the induced voltage is greater than the input voltage .

4. Higher Voltage Output

That electricity is high-voltage and low-current . It can then be used for transmission or for certain industrial purposes .

Construction of a Step Up Transformer

A typical step up transformer consists of several important components:

1.Magnetic, core

Usually the body of the transformer is made of laminated silicon steel sheets. The laminated structure reduces eddy current losses and thereby improves efficiency.

2. Primary Winding

The input source provides electrical power to the primary coil. In a step up transformer it normally has less turns than the secondary winding.

3. Sub-Winding

The secondary winding increases the voltage output. It has more turns to make higher voltage.

4. Insulation System

High quality insulation materials and safe operation are ensured at high-voltage operation to avoid electrical breakdown.

5. Refrigeration system

Large industrial transformers are cooled by oil, air or other thermal management methods so as to maintain the operating temperature.

Step Up Transformers Types

1.Transformer Step Up.

Power step-up transformers are used in power plants to increase the voltage of the generators before the electricity enters the high-voltage transmission network.

Commonly they are found in:

·Power Stations - Thermal

·Hydroelectric power plants

·Nuclear power stations

·plants of solar energy

·Windmills

2. Boost distribution transformer

These transformers are used in some industrial and commercial applications where higher voltages are needed to step up the voltage.

3. Step Up Transformer (Single Phase)

Single phase step up transformers are widely used in:

·Equipment test

·Small electronic systems

·Household voltages conversion devices

3. Three Phase Step Up Transformer 3.

In industrial power systems transformers are generally three-phase. Three-phase transformers are well adapted for efficiently handling large quantities of electrical power.

Applications of Step Up Transformer

1. Transmission of Electrical Power

Step-down transformers are primarily used in power transmission.

Power plants produce electricity at low voltage levels. The voltage is stepped up to hundreds of kilovolts by step up transformers and transmitted to the destination by high voltage power lines.

Power Loss = I²R The higher the voltage, the lower the current, and this greatly reduces transmission losses.

Reducing current makes something more efficient and wastes less energy.

2. Technology for renewable energy

Step up transformers form an important part of renewable energy projects.

Solar Power Plant

Solar farms use photovoltaic systems to generate electricity at low voltage . Step up transformers are used to increase the voltage and send it to the electrical grid .

Wind Power Systems

The voltage at which wind turbines generate electricity is lower. The transformers are step-up transformers to make it effectively integrated into the grid.

3. Industrial Utilization

A lot of industrial machines need to be powered with certain voltage levels.

Step Up Transformers are used for:

·manufacturing facilities

·Steel industry

·Chemical processing plants

·Heavy equipment system

They provide stable and appropriate voltage supplies for industrial equipment.

4. Medical Devices

Medical devices like X-ray machines need high voltages to operate properly.

Using step-up transformers in:

·X-ray apparatus

·Medical Imaging Devices

·Laboratory apparatus

They supply the high voltage needed for some medical operations.

5. Electrical Apparatus

For electronic applications, voltage boosting is required, for which miniature step up transformers are used.

Examples:

·Inverters

·Power supplies

·Converters of voltage

·Audio gear

6. Microwaves

Microwave oven uses high voltage transformers to increase the household AC voltage to a voltage required by the magnetron.

Advantages of Step Up Transformer

1. Efficient long distance power transmission

Step-up transformers increase voltage and decrease current , reducing energy loss in transmission .

2. Better Efficiency of Power System

They allow power plants to send electricity efficiently over long distances.

3. Voltage match

Step up transformers allow different electrical systems to work together by changing the voltage level.

4. Safe electrical separation

Transformers are safer since they electrically isolate the input and output circuits.

Things to Consider When Choosing a Step Up Transformer

Some important things to consider when choosing a step up transformer are:

Rated power capacity (kVA/MVA)

I/O voltage

Frequency Score

Productivity

Cooling technique

Insulation level

Environmental conditions

Power demands

The right choice will give reliability, safety and long life in service.

Frequently Asked Questions (FAQ)

1. What is the primary function of a step up transformer?

A step up transformer is used to step up the AC voltage and step down the current. This is the main function of step up transformer.

2. Does a step up transformer add power?

A perfect transformer does not multiply power. It trades current for voltage, maintaining power approximately constant.

3. Will a step up transformer work on DC?

No. Transformers need AC current because electromagnetic induction depends on changing magnetic flux.

4. Where do step up transformers get used?

They are mainly used in power stations, renewable energy systems, industrial facilities, medical equipment and high voltage transmission networks.

A step-up transformer is among the most important elements of present-day electrical infrastructure. It allows for efficient transmission of electricity by increasing voltage and reducing current . It promotes the development of renewable energy . It powers numerous industrial and technological applications .

Step up transformers provide a reliable option for voltage conversion and energy efficiency in a wide variety of applications from large power stations to modern electronic equipment. For engineers and businesses, a good understanding of its working principles and applications is essential for selecting the proper transformer for their electrical systems.
