Every power plant, substation, and large industrial facility depends on more than just the electricity it generates or distributes. Behind the main power transformers that handle bulk transmission, an entire network of internal systems keeps operations safe and running — and every one of those systems needs its own dedicated power supply. This is exactly what an auxiliary transformer provides.
An auxiliary transformer is a specialized low-voltage device designed to supply reliable, isolated power to the equipment that supports the main electrical infrastructure. While a power transformer handles thousands or even hundreds of thousands of volts for grid-level transmission, an auxiliary transformer quietly steps that voltage down to safe, usable levels for the control rooms, cooling systems, and protection devices that keep the entire facility operational.
This guide explains what auxiliary transformers are, how they work, the different types available, and where they are used across modern electrical infrastructure.
An auxiliary transformer is a dedicated step-down transformer designed specifically to supply power to auxiliary equipment within an electrical facility. Unlike a general-purpose distribution transformer that serves external loads such as homes and businesses, an auxiliary transformer powers the internal systems that the facility itself depends on — including control circuits, protection relays, cooling pumps, lighting panels, and instrumentation.
What sets auxiliary transformers apart from other transformer types is their design philosophy. Standard transformers are built to handle generic load profiles without regard for the specific application. In contrast, an auxiliary transformer is engineered around the exact load requirements of the equipment it serves. This application-specific design ensures precise voltage reduction, stable output, and compatibility with sensitive electronic systems.
The table below highlights how auxiliary transformers compare against the two most common transformer categories:
Feature | Auxiliary Transformer | Power Transformer | Distribution Transformer |
Primary Function | Supply internal facility equipment | Bulk transmission between grids | Serve end-user loads |
Voltage Level | Low voltage output (230V–415V typical) | Very high voltage (110 kV and above) | Medium to low voltage (11 kV down to 120/240V) |
Load Design | Application-specific | General purpose | General purpose |
Typical Rating | Small (tens to hundreds of kVA) | Very large (MVA range) | Medium (10 kVA to several MVA) |
Installation | Indoor or outdoor, near auxiliary loads | Outdoor substations | Poles, pads, building service entrances |
Auxiliary transformers perform several critical functions that directly influence the safety, reliability, and continuity of electrical operations. The following table summarizes each function and its operational significance:
Function | Description |
Voltage Reduction | Steps down high generation or transmission voltages — such as 11 kV or 33 kV — to safe, usable levels (typically 400V or 230V) for standard facility equipment and control systems |
Electrical Isolation | Provides galvanic isolation between high-voltage power circuits and low-voltage control and monitoring equipment, protecting sensitive electronics and personnel from dangerous fault currents |
Powering Cooling Equipment | Supplies electricity to cooling fans, oil circulation pumps, and water-based cooling systems that prevent generators and main power transformers from overheating during continuous operation |
Supplying Protection Relays and Control Circuits | Delivers uninterrupted power to protection relays, alarm systems, sensors, and fault-detection equipment — ensuring these safety systems remain active even when the primary grid experiences disturbances |
Supporting Switchgear and Control Panels | Provides clean, stable voltage to switchgear panels used by operators to connect, disconnect, and redirect power flows throughout the facility |
Black Start Capability | Supplies the baseline power needed to restart critical systems following a complete grid blackout, enabling generators and auxiliary equipment to come back online without external power |
Although compact in size compared to main power transformers, an auxiliary transformer contains the same fundamental components — each engineered for the specific demands of auxiliary service:
Component | Design Characteristics |
Transformer Winding | The primary section contains more turns than the secondary section, enabling voltage reduction. Windings are designed to be compact yet powerful, configured in either delta or star arrangement depending on the load type and grounding requirements |
Transformer Core | Built from high-grade magnetic materials to deliver efficient energy transfer in a small physical footprint. The core structure maximizes magnetic flux density while minimizing no-load losses |
Cooling System | Manages the waste heat produced during operation. Smaller units may use natural air convection, while larger auxiliary transformers employ forced air, oil natural, or hybrid cooling methods depending on the thermal load |
Overload Protection | Monitors incoming current and automatically disconnects the transformer from the supply if levels exceed safe thresholds, preventing winding insulation damage from overheating |
Surge Arrester | Installed between the supply source and the transformer input; diverts voltage spikes from lightning strikes or upstream switching events safely to ground before they can enter the transformer |
Monitoring Devices | Sensors that continuously track temperature, moisture levels, and electrical parameters — providing operators with real-time data on transformer health and enabling early fault detection |
Auxiliary transformers are available in several configurations, each suited to different environments and operational requirements. The table below compares the four primary types:
Type | Cooling Medium | Installation Environment | Key Advantage | Typical Use Case |
Dry-Type Auxiliary Transformer | Air or cast resin (no oil) | Indoor — data centers, hospitals, commercial buildings | Fire-resistant, eco-friendly, minimal maintenance | Facilities with strict fire safety codes; confined indoor spaces |

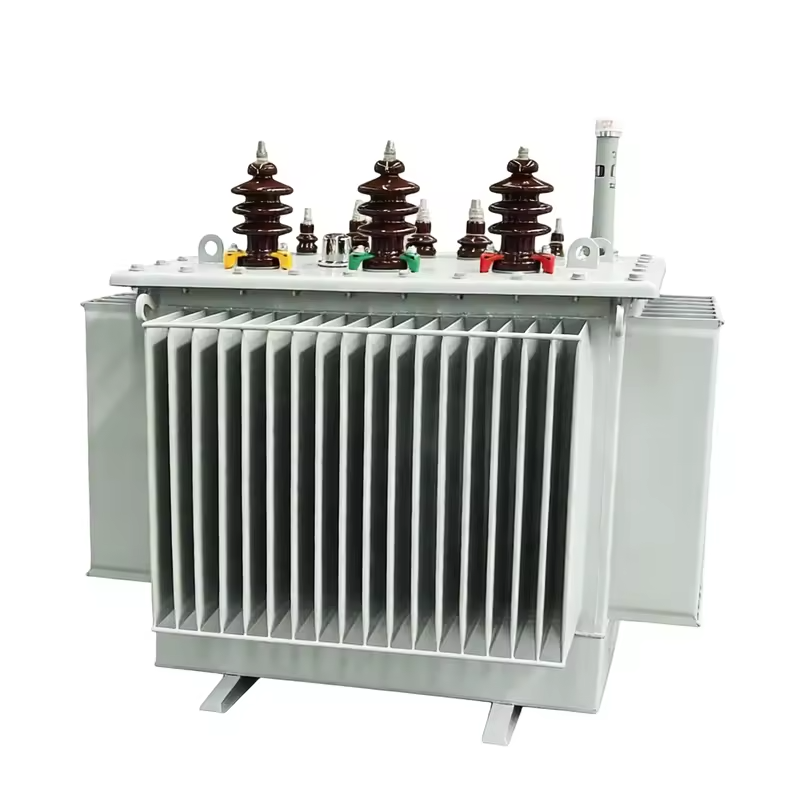

Oil-Immersed Auxiliary Transformer | Mineral oil or natural ester fluid | Outdoor or well-ventilated indoor areas | Superior heat dissipation, high overload tolerance, long service life | Power plants, substations, heavy industrial facilities |
Portable Auxiliary Transformer | Typically dry-type for light weight | Temporary or mobile deployment | Easy transport, rapid setup, flexible deployment | Emergency response, disaster recovery, remote construction, mining operations |
Stationary Auxiliary Transformer | Either oil or dry type | Permanent fixed installation | High reliability, purpose-built for continuous duty | Permanent installations in utility substations, manufacturing plants |
For oil-immersed auxiliary transformers in particular, the cooling configuration can be further classified using standard industry designations — such as ONAN (Oil Natural Air Natural), ONAF (Oil Natural Air Forced), and OFAF (Oil Forced Air Forced) — with each offering progressively greater heat removal capacity for higher-rated units.
Auxiliary transformers are found wherever electrical systems require a dedicated, reliable internal power source. The following table summarizes their major application areas:
Application Sector | How Auxiliary Transformers Are Used |
Power Plants | A unit auxiliary transformer steps down generation-level voltage to supply cooling pumps, control room instrumentation, protection relays, emergency lighting, and generator auxiliary systems. In thermal and hydroelectric plants, these transformers are essential for both normal operation and black-start recovery |
Substations | Supply power to circuit breakers, protection relays, switchgear panels, communication systems, and SCADA equipment. Auxiliary transformers in substations ensure that control and monitoring functions remain active even when the main transmission path is interrupted |
Renewable Energy | In solar power plants, auxiliary transformers power solar tracking motors, inverters, and monitoring systems. In wind turbines, they supply the motors that adjust blade pitch and nacelle orientation. In energy storage systems, they condition input power for battery management and thermal control |
Industrial Facilities | Factories and processing plants depend on auxiliary transformers to power non-critical machinery, lighting systems, HVAC equipment, and backup control panels — keeping production environments safe and operational during both normal conditions and grid disturbances |
Transportation Infrastructure | Metro and railway systems use auxiliary transformers to power signaling systems, platform lighting, and tunnel ventilation fans, ensuring passenger safety and uninterrupted service |
What are auxiliary transformers used for?
Auxiliary transformers provide a dedicated, isolated power supply to the internal equipment that supports main electrical systems — including cooling pumps, control circuits, protection relays, monitoring equipment, and lighting — across power plants, substations, renewable energy installations, and industrial facilities.
How do auxiliary transformers differ from power transformers?
A power transformer handles bulk electricity transmission between grids at very high voltages and MVA-level ratings. An auxiliary transformer is a much smaller step-down transformer that supplies low-voltage power exclusively to a facility's internal support systems. It is designed for a specific load profile rather than for general-purpose distribution.
What types of auxiliary transformers are available?
The four main types are dry-type auxiliary transformers (air or resin insulated, for indoor use), oil-immersed auxiliary transformers (oil-cooled, for outdoor and heavy-duty applications), portable auxiliary transformers (mobile, for temporary or emergency use), and stationary auxiliary transformers (permanently installed, for continuous-duty applications).
Do auxiliary transformers require maintenance?
Yes. Dry-type auxiliary transformers benefit from periodic airflow checks and thermal imaging to detect hot spots. Oil-immersed auxiliary transformers require regular oil sampling, dissolved gas analysis to detect internal fault gases, and inspection of bushings and gaskets for leaks. All types should receive annual insulation resistance testing and torque verification on electrical connections.
How do you choose the right auxiliary transformer?
Selection depends on several factors: the total connected load of the auxiliary systems, the required output voltage, the available input voltage at the installation point, the operating environment (indoor versus outdoor), the applicable fire safety and environmental regulations, and whether the installation is permanent or temporary.
Auxiliary transformers may be smaller and less visible than the massive power transformers they support, but their role in electrical infrastructure is no less important. By delivering reliable voltage reduction, electrical isolation, and uninterrupted power to the equipment that monitors, protects, and cools the main system, auxiliary transformers form the invisible backbone of every power plant, substation, and large-scale industrial facility.
Whether you are specifying a dry-type auxiliary transformer for an indoor control room, an oil-immersed auxiliary transformer for a utility substation, or a portable unit for emergency backup, choosing the right design — with proper overload protection, surge arresters, and an adequately rated cooling system — is essential for long-term safety, reliability, and operational continuity.
