The SC(B) series 30~2500kVA resin insulated dry-type power transformer represents a cutting-edge compact, safe, and energy-efficient power solution engineered for spaces with stringent safety and spatial constraints. Utilizing advanced epoxy resin vacuum casting technology with F-class fire rating, this transformer delivers reliable power distribution for medium-to-small load demands across diverse commercial and industrial environments. Its oil-free design eliminates fire hazards and environmental contamination risks, making it the preferred choice for indoor installations where safety and sustainability are non-negotiable priorities. With partial discharge levels below 10pC and noise emissions not exceeding 60dB, it ensures uninterrupted, quiet operation without electrical interference, protecting both sensitive equipment and human occupants.

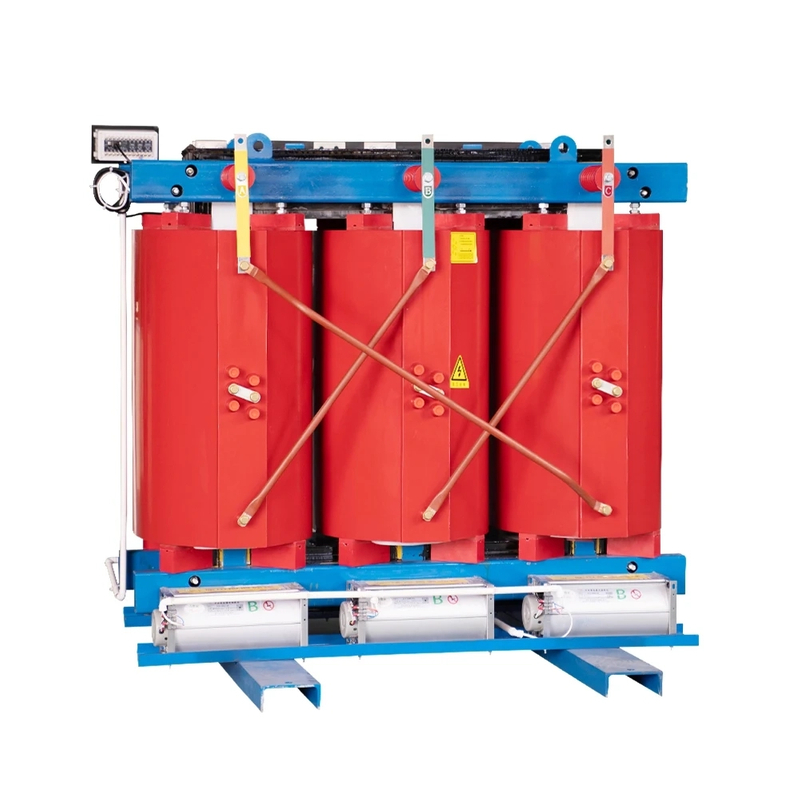

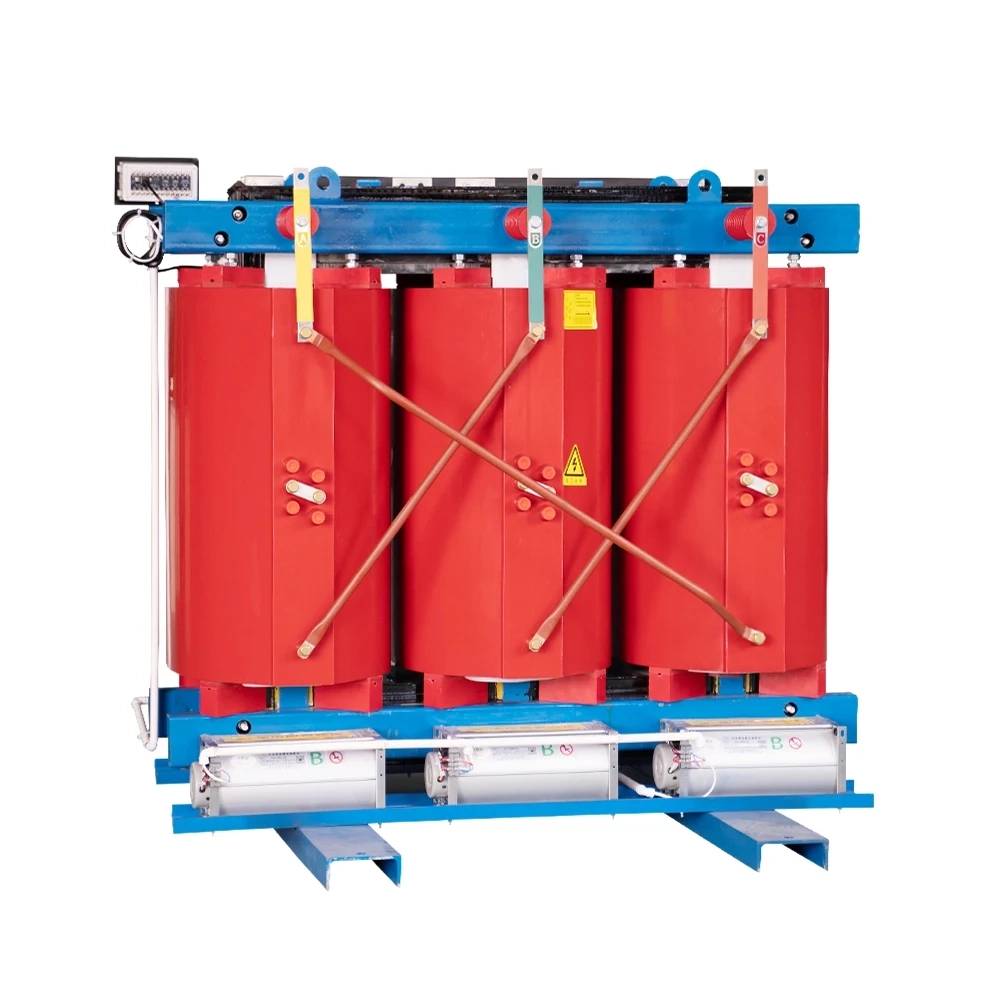

SC(B) series 30~2500kVA resin insulated dry-type power transformer
Key Features & Benefits
Oil-Free & Environmentally Responsible Design
At the heart of the epoxy resin dry-type transformer lies its revolutionary oil-free construction, which completely eliminates fire risks and oil leakage issues. Compliant with GB 2536-2011 standards, it releases minimal smoke (density <50) when exposed to flames, significantly enhancing safety in enclosed spaces. This eco-friendly design aligns perfectly with green building initiatives and global sustainability goals, reducing environmental impact while lowering long-term maintenance costs associated with oil handling and disposal.
The transformer features an efficient heat dissipation system combining high-performance aluminum heat sinks and axial fans, delivering exceptional cooling efficiency. This innovative design allows for temporary overloads without overheating, ensuring stable operation during peak power demands. The balance between passive heat dissipation and active forced air cooling optimizes energy usage while maintaining optimal operating temperatures, extending equipment lifespan.
Windings are precision-wound with high-quality copper foil, providing superior mechanical strength and moisture resistance critical for harsh operating conditions. This design ensures uniform current distribution, minimizing hot spots and reducing energy losses. The robust construction also enhances resistance to vibration and electrical stress, resulting in a longer operational lifespan and reduced downtime.
Equipped with an integrated intelligent temperature controller, the low noise dry-type transformer automatically starts and stops cooling fans based on real-time internal temperatures. This smart functionality optimizes energy consumption by activating fans only when necessary, reducing wear and lowering operational expenses. The controller supports RS485 communication, enabling seamless remote monitoring and integration with building management systems for centralized control and predictive maintenance.
The compact dry-type transformer finds extensive use in:
Healthcare facilities (hospitals, clinics) powering elevators, fire safety systems, and medical equipment
Educational institutions (schools, universities) where quiet operation is essential
High-rise residential and commercial buildings with limited electrical room space
Medium-load data centers protecting sensitive IT infrastructure
Coastal and tropical regions with high humidity levels
Commercial complexes, shopping malls, and office buildings
We offer comprehensive customization services to meet specific project requirements:
Custom capacity ratings within the 30-2500kVA range
Special enclosure designs for unique installation spaces
Enhanced moisture and corrosion protection for extreme environments
Customized temperature control and monitoring systems
Integration with various building management protocols
Special paint finishes and color options to match facility aesthetics
What is the lifespan of an SC(B) series dry-type transformer?
With proper maintenance, the moisture-resistant transformer has an operational lifespan of 20-30 years, significantly longer than many traditional oil-filled transformers.
Can this transformer operate in high humidity environments?
Yes, its moisture-resistant windings and epoxy resin insulation allow reliable operation in high relative humidity conditions, making it ideal for coastal and tropical regions.
Is remote monitoring available?
Absolutely. The integrated temperature controller supports RS485 communication, enabling real-time remote monitoring and control from a centralized location.
Does it require a dedicated fire suppression system?
No, the oil-free F-class fire rating design eliminates the need for expensive dedicated fire suppression systems, reducing installation costs.
Contact our technical team today for a customized solution tailored to your specific power distribution needs. We provide detailed technical specifications, competitive pricing, and professional installation guidance. Request your free, no-obligation quote now and discover how our SC(B) series transformers can enhance the safety, efficiency, and reliability of your power system.
Parameter | Specification |
Rated Capacity Range | 30kVA - 2500kVA |
Insulation Class | F Class (Epoxy Resin Vacuum Casting) |
Partial Discharge | <10pC |
Noise Level | ≤60dB |
Cooling Method | AN/AF (Natural Air/Forced Air) |
Winding Material | Copper Foil |
Communication Interface | RS485 |
Compliance Standard | GB 2536-2011 |
Smoke Density | <50 |
