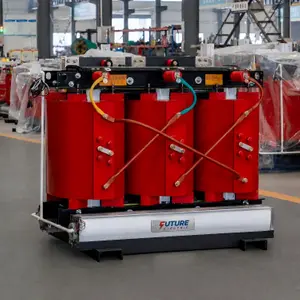

Chosen for small distributed loads, the 50 kVA dry type transformer is a three-phase, cast resin insulated unit that suits sites with no separate transformer compound. It converts a 2.4–34.5 kV primary to 480/277V, 400/230V or 380/220V, feeding EV charging hubs, small solar arrays, retail kiosks, workshops and lift or fire-pump circuits inside occupied buildings.
The windings are encapsulated in vacuum-cast epoxy resin with quartz filler, and the three-leg core is built from CRGO silicon steel. Compact construction, low noise and low partial discharge make the 50 kVA dry type transformer suitable for mounting on the same floor as the load it serves, with AN or AN/AF cooling selected to suit the duty.
| Electrical | Rated Capacity | 50 kVA |
Rated Primary Voltage | 2.4–34.5 kV or customized | |
Secondary Voltage | 480/277V, 400/230V, 380/220V or customized | |
Frequency | 50/60Hz | |
Vector Group | Dyn11, Yyn0, Dyn5 or customized | |
H.V. Tap Changer | ±2×2.5% HV taps or customized | |
Efficiency | As IEEE, DoE 2016, GB or customized | |
Impedance Voltage | 1.1–5.75% | |
Cooling Method | AN, AN/AF, ANAF | |
Operation | Step Down & Step Up | |
| Physical & Standards | Standards/Certificate | IEEE, ISO, IEC, GB, CE, UL |
Application | Data Center, Power Distribution, Hospitals, Commercial Buildings, Hotels, indoor location | |
Total Weight | 150 kg | |
Outline Dimensions（L×W×H） | 500×400×800 mm | |
Altitude | ≤1,000m, 1000–2000m, 2000–3000m, >3000m | |
| Material | Winding Material | Aluminum / Copper |
Core Material | CRGO Silicon Steel / Amorphous Alloy | |
Color | Customized | |
Enclosure material | Mild Steel / Stainless Steel |
Located at the centre of the active part and stacked from cold rolled grain oriented silicon steel laminations to form a closed magnetic circuit. Step lap, 45° mitered joints, clamping frames and a single point ground hold no-load loss and audible noise to a minimum.
The winding closest to the core limb carries the secondary current at 480/277V, 400/230V or 380/220V. Foil or multi layer conductor in copper or aluminium distributes ampere turns evenly along the limb, which gives the low voltage winding high short circuit withstand strength.
Wound concentrically outside the low voltage winding and divided into layers separated by insulating cylinders and cooling ducts. Taps are brought out at the top for voltage adjustment, and the assembly is built to the specified Dyn11, Yyn0 or Dyn5 vector group.
Instead of transformer oil, the windings are encapsulated in epoxy resin cast under vacuum. The resin fills every turn and layer and gives dielectric strength, mechanical rigidity, moisture proofing and a self-extinguishing, flame retardant surface that adds no fuel to a fire.
Open vertical ducts between the resin cylinders and the core let air circulate freely by natural convection. Because the cooling medium is ambient air rather than a liquid, the insulation system stays dry and there is no oil to sample, filter, top up or replace.
PT100 or PTC sensors embedded in the windings feed a temperature controller that displays each phase and starts the forced air fans when a winding reaches its set point. Alarm and trip contacts let the transformer run at its AN or AN/AF rating as the load demands.
The active part is housed in a steel enclosure with louvered ventilation, fabricated in mild steel or stainless steel and finished in the specified colour. Removable panels give access for inspection and cable termination, and the enclosure keeps live parts out of reach in plant and public rooms.
Epoxy bushings or a cable termination box bring the 2.4–34.5 kV primary leads out of the enclosure. They provide the required creepage and clearance to ground, together with mechanical support for cable lugs or busbar, and carry clear phase identification and safety labelling.
Copper terminal pads on the secondary side take the 480/277V, 400/230V or 380/220V outgoing cable or busbar. Generously sized pads keep current density and temperature rise low, and neutral and earth terminals are brought out for the earthing arrangement required at site.
An off-circuit tap changer is fitted on the high voltage side with a normal ±2×2.5% range or a customer specified tap scheme. Links are set by hand while the unit is de-energized, so the secondary voltage can be corrected to match the actual supply at site.
Every dry-type transformer is tested before shipment against the applicable standard and the customer specification — from the first batch of incoming material to the routine test, including partial discharge, on the factory floor.
Dry-type quality begins with what we bring in. Every batch of silicon steel, copper or aluminium conductor, epoxy resin and insulating material is checked against approved specifications before it reaches the winding shop, with supplier qualification and traceability records kept for each shipment.
Progress tests are carried out at the key stages of dry-type manufacture — core stacking, winding, resin casting or vacuum pressure impregnation, and final assembly — to confirm that every 50kVA three-phase dry-type transformer meets its design and quality requirements before dispatch.
Before leaving the factory each transformer undergoes routine testing — conducted in accordance with IEC 60076-11 / GB 1094.11 (and IEEE C57.12.01 when specified) — covering insulation resistance, winding DC resistance, voltage ratio and vector group, no-load loss and current, load loss and short-circuit impedance, applied and induced voltage withstand, and partial discharge measurement on the cast resin winding.
A partial discharge level inside the 10 pC acceptance limit confirms that the resin encapsulation is free of voids and delamination. Once every test has passed, the unit is shipped with a factory test report and a certificate of conformity, so each delivered product meets its rated performance and safety specifications.
50kVA Dry Type Transformers are available with a range of configurable options to suit different electrical, thermal and environmental requirements. Customers can select the winding material, insulation class, cooling method and degree of enclosure protection according to their project conditions and the local installation code.
Copper or aluminium windings can be supplied, and the windings are encapsulated either by vacuum casting in epoxy resin or by vacuum pressure impregnation, depending on the dielectric strength required and the ambient conditions at site. Insulation class F or class H is selected to match the specified temperature rise and the expected load profile of the installation.
Cooling can be configured as air natural for quiet, lightly loaded duty, or air natural with forced air fans where extra capacity is needed during peak periods. Winding temperature sensors, a temperature controller and alarm and trip contacts are available as monitoring options, and enclosures in mild steel or stainless steel with the required degree of protection and finish colour keep the unit suited to both plant rooms and occupied buildings.
From data centers, hospitals and metro stations to commercial towers, hotels and industrial plants, the dry-type transformer can be configured to meet the required balance of fire safety, low noise, low loss and long maintenance free service life.
We ensure every three-phase dry-type transformer is safely packed, protected from moisture and ready for installation.
Secure Packaging: Cast resin windings and open terminals are the most exposed parts of a dry-type unit, so the transformer is mounted on a heavy duty skid or wooden pallet, braced with timber, banded with steel strapping and wrapped in stretch film to keep out moisture, dust and impact.
Moisture Protection: Dry-type insulation must stay dry, so every unit is sealed before it leaves the workshop and desiccant plus moisture indicators are added for long sea freight or humid destinations.
Complete Accessories: Temperature controllers, cooling fans, terminal hardware and documents are packed separately and itemized on the packing list, while factory fitted components are tested together with the transformer.
Reliable Transport: Road, rail, or sea shipping is arranged according to project requirements, with the unit braced and lashed so it cannot shift in transit.
Complete Documentation: Test reports, certificates, manuals, and shipping documents are provided.
Installation Support: Unpacking, installation, and commissioning guidance is available for smooth project delivery.
Cast resin dry-type transformers have windings fully encapsulated in vacuum-cast epoxy, giving the highest dielectric and mechanical strength. VPI (vacuum pressure impregnated) windings are impregnated with resin and cured in an oven instead, which suits smaller ratings and drier indoor locations.
Dry-type transformers are normally built with Class F (155 °C) or Class H (180 °C) insulation. Class F suits standard duty with a 100 K average winding rise; Class H allows a 125 K rise and is chosen for higher ambient temperatures or where extra overload margin is needed.
Watch for a dry-type transformer running consistently hot, cooling fans that fail to start, unusual buzzing or crackling from the core, and tracking marks, discoloration or a burning smell on the resin surface. Any of these should be investigated before the insulation is damaged further.
